Home >> Toyota >> 2003 >> Matrix Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Vehicle Intrusion Protection System - Diagnostics >> Door Key Lock And Unlock Switch Circuit >> Wiring Diagram

Door Key Lock And Unlock Switch Circuit: Wiring Diagram

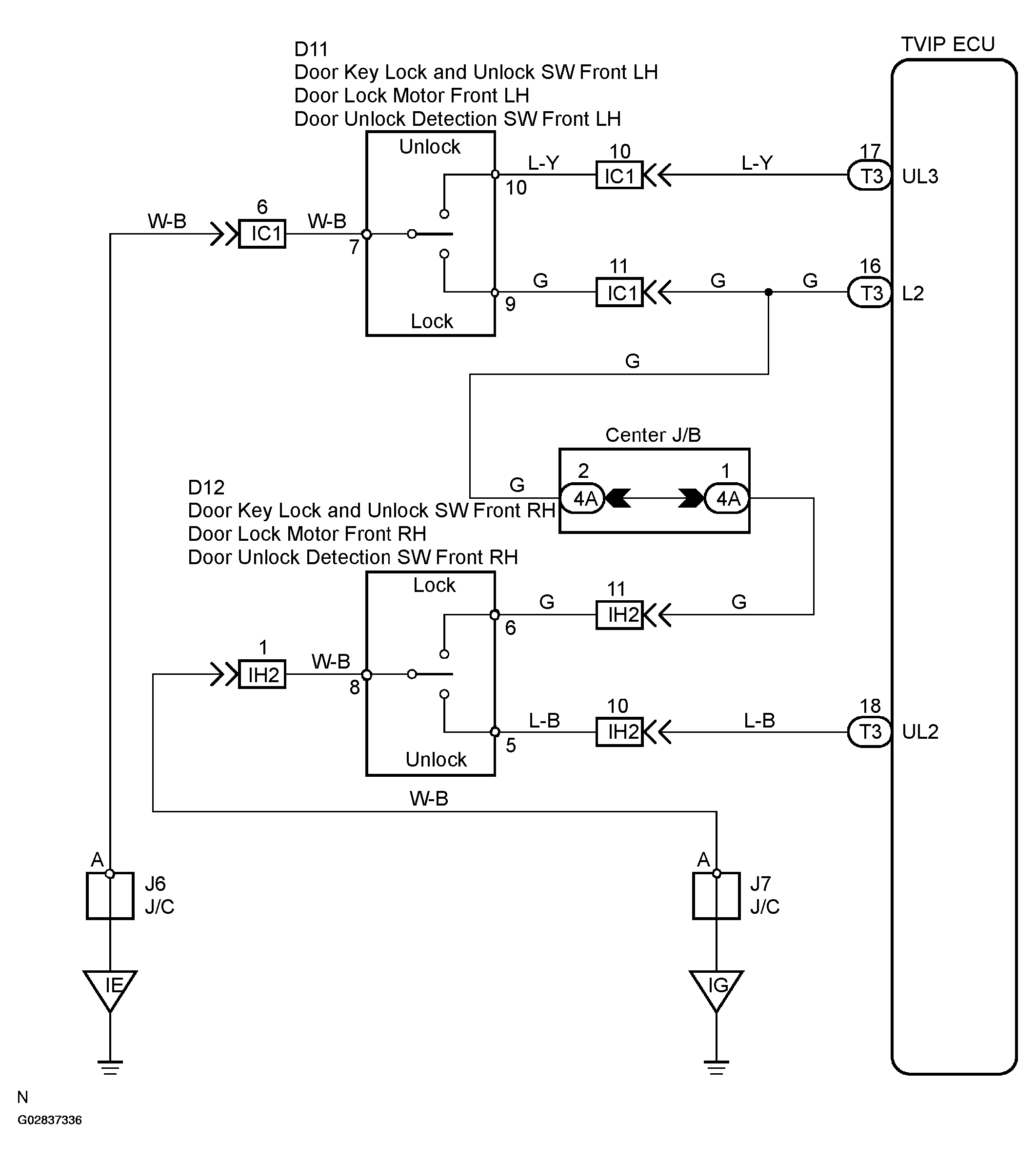

Fig 1: Wiring Diagram - Door Key Lock & Unlock Switch Circuit

G02837336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
