ECU & Combination switch

For ECU and combination switch terminal resistance values, see illustration. See Fig 1.

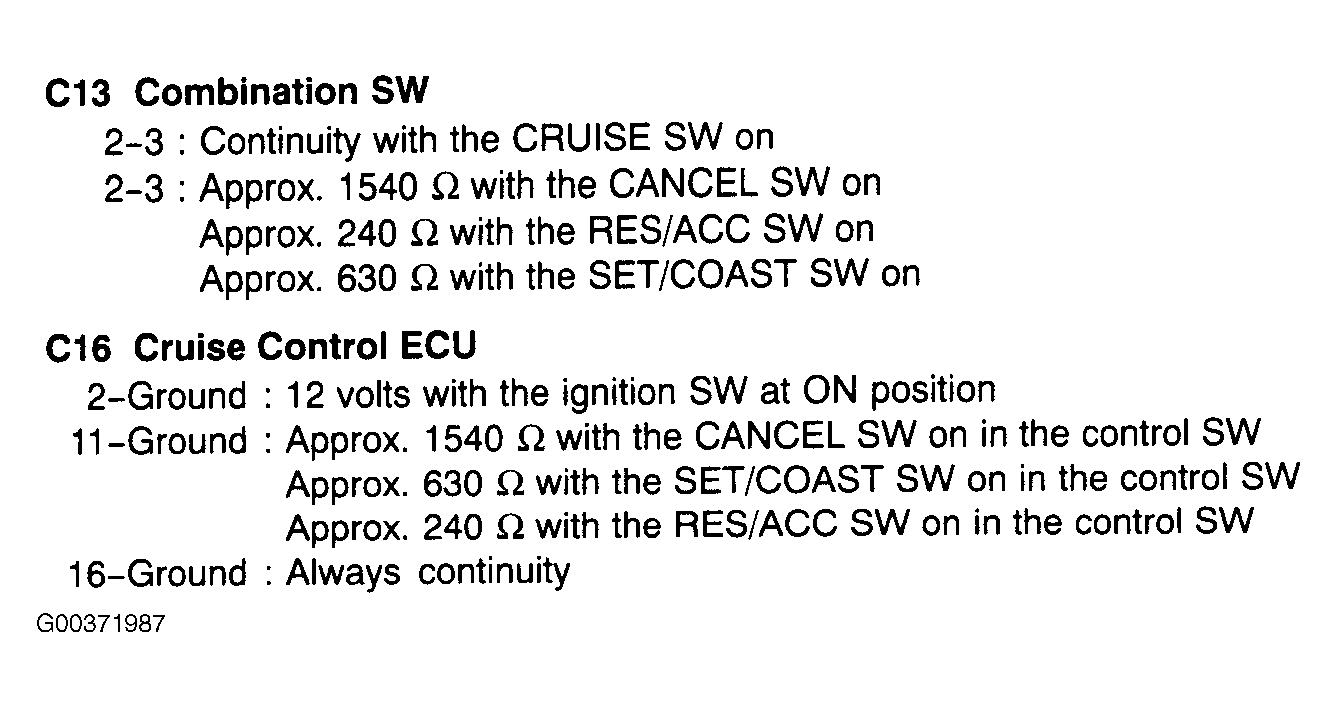

Fig 1: Identifying ECU & Combination Switch Terminal Resistance Values

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
