Problem Symptoms Table

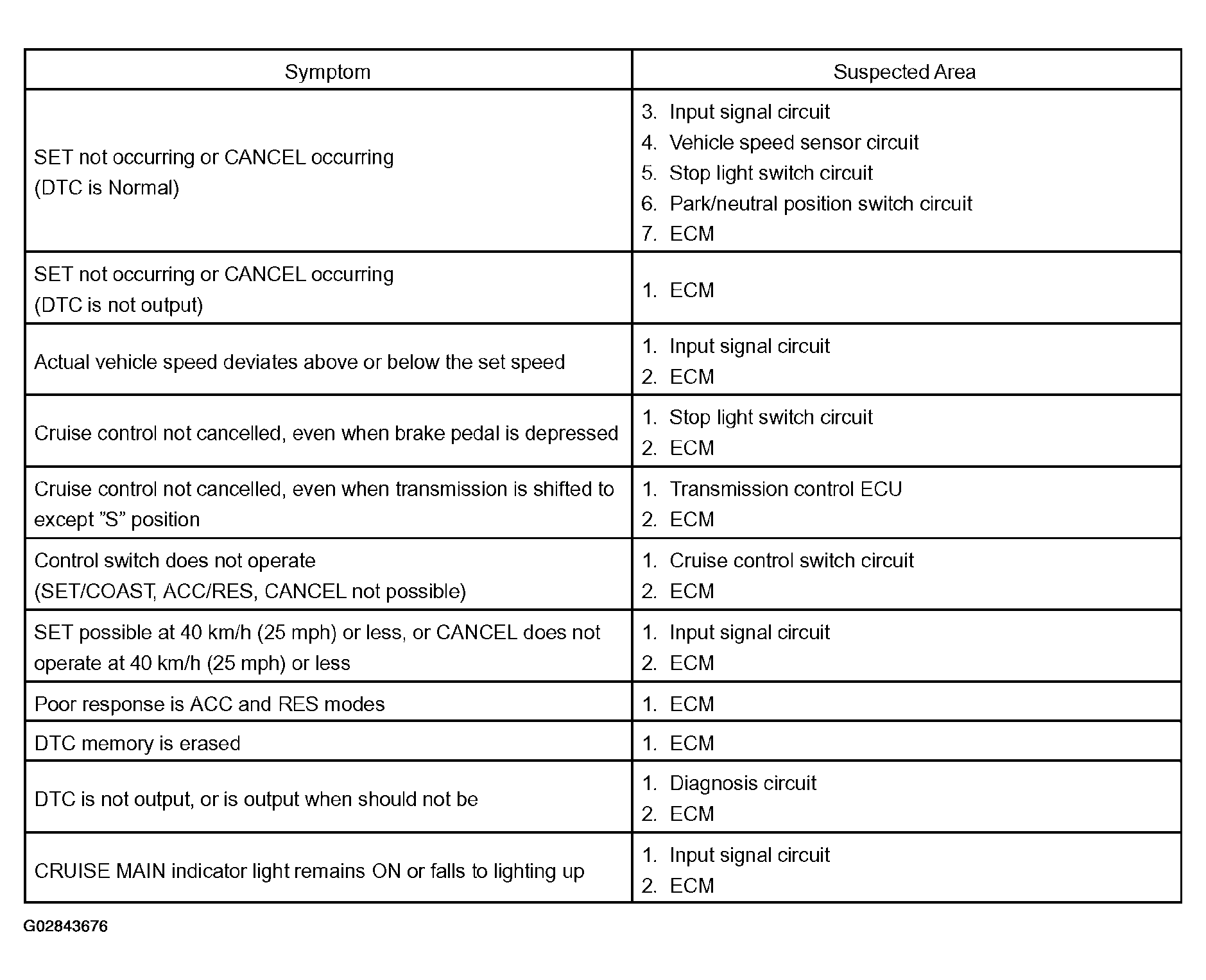

Fig 1: Problem Symptoms Table
G02843676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC Description
DTC P0500/21, 23  VEHICLE SPEED SENSOR CIRCUIT
DTC P1520/52  STOP LIGHT SWITCH CIRCUIT
DTC P1566/54  INPUT SIGNAL CIRCUIT
