How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure on the following page. See Fig 1.

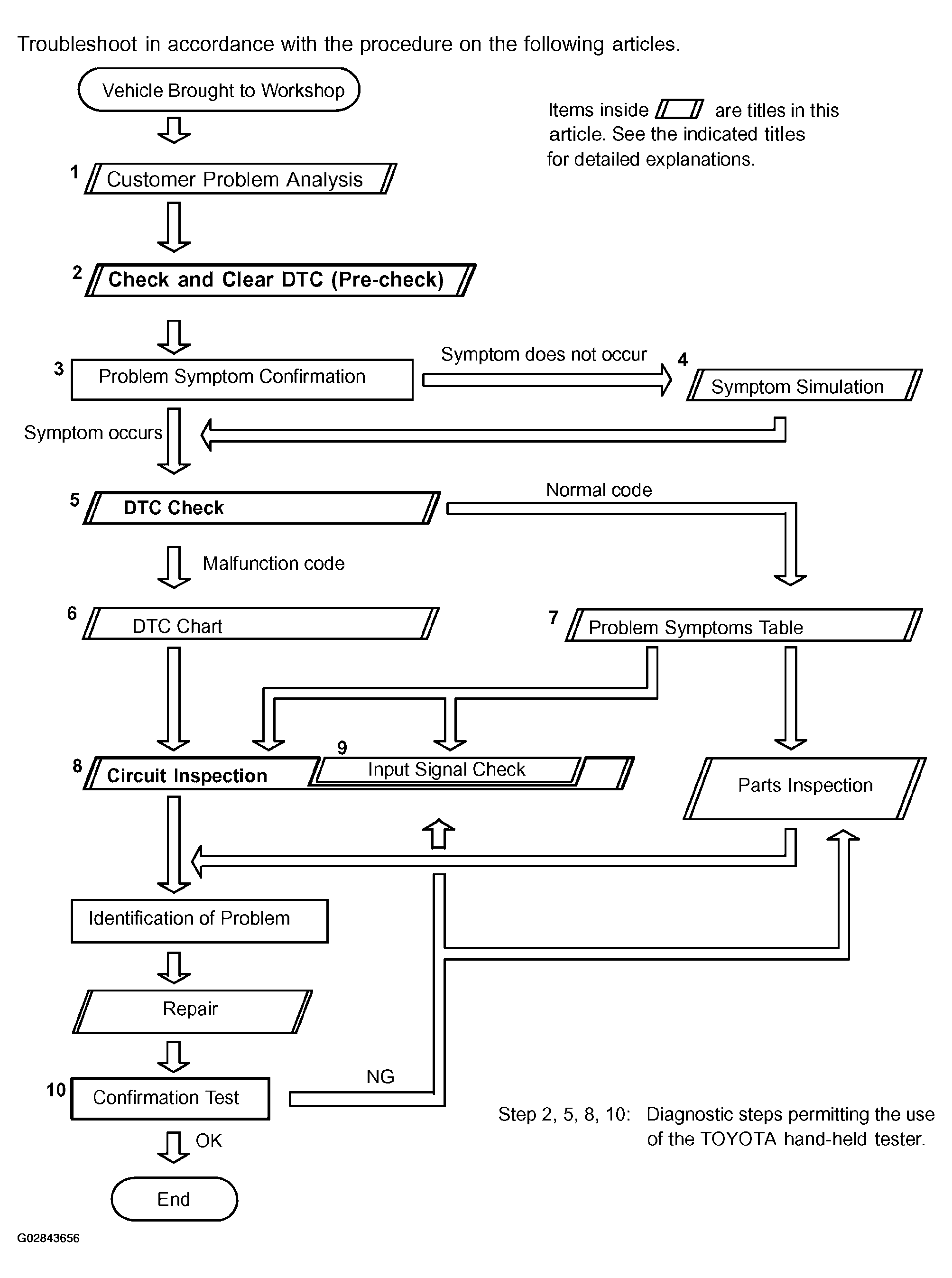

Fig 1: Troubleshooting Process Chart

G02843656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
