Terminals Of Ecu

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

POWER WINDOW MASTER SWITCH:

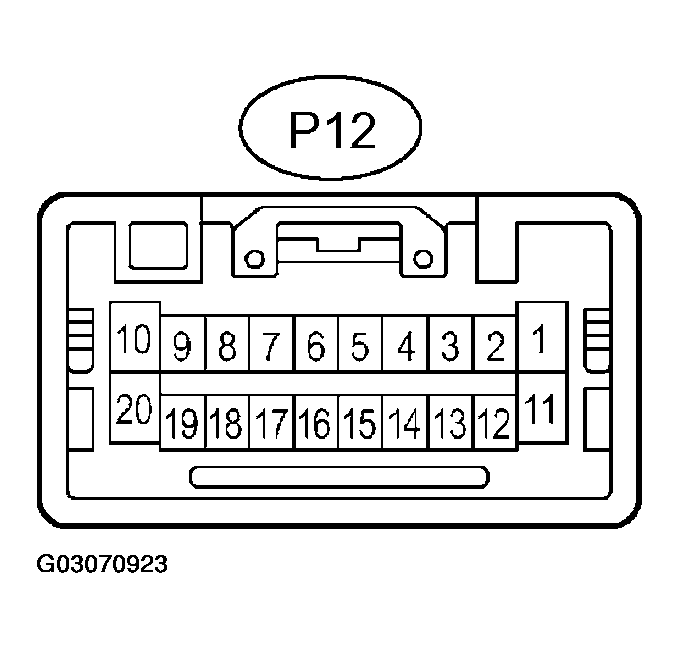

Fig 1: Identifying Terminals Of ECU Power Window Master Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

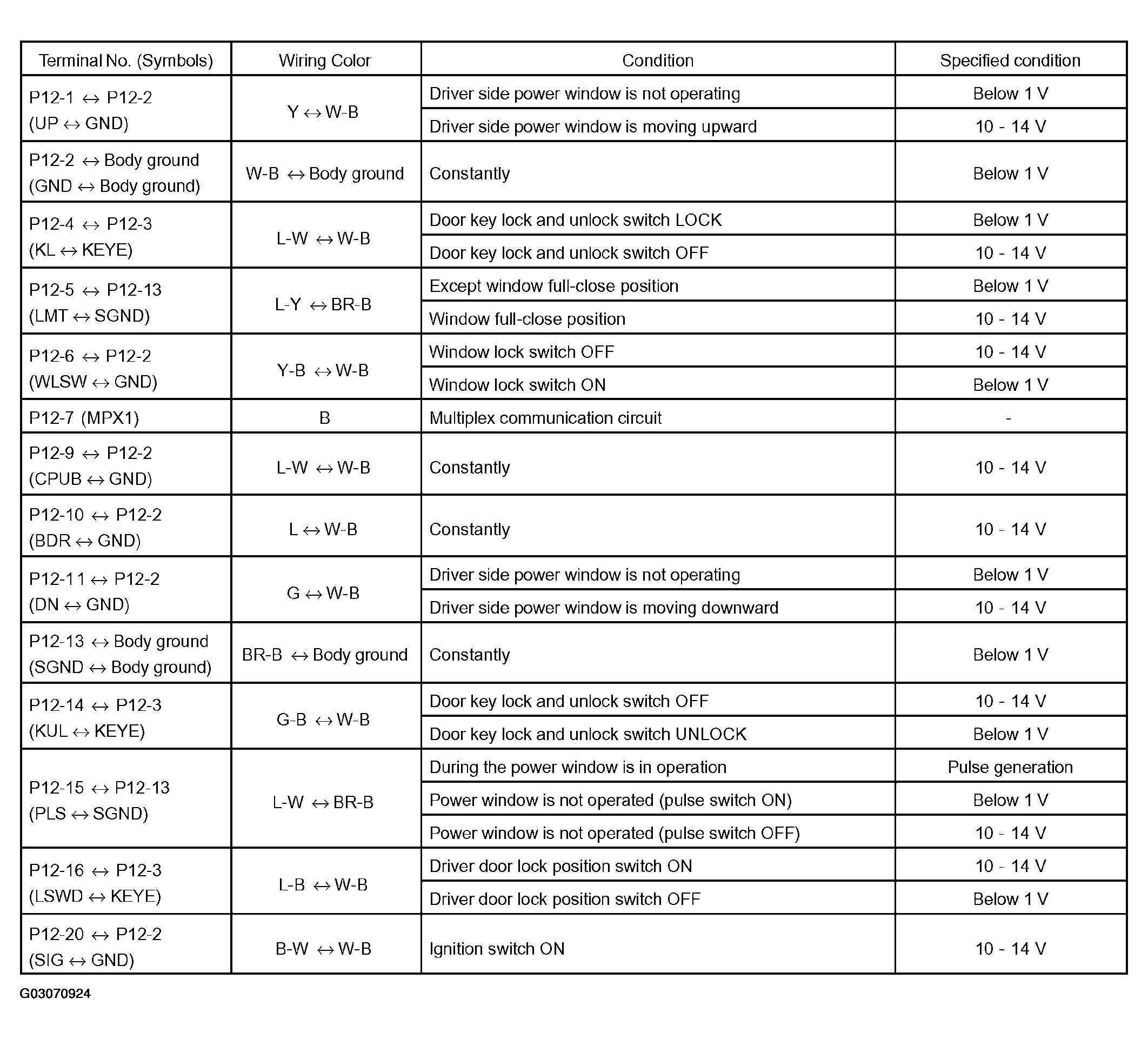

Fig 2: Terminals Reference Value Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

EXCEPT POWER WINDOW MASTER SWITCH:

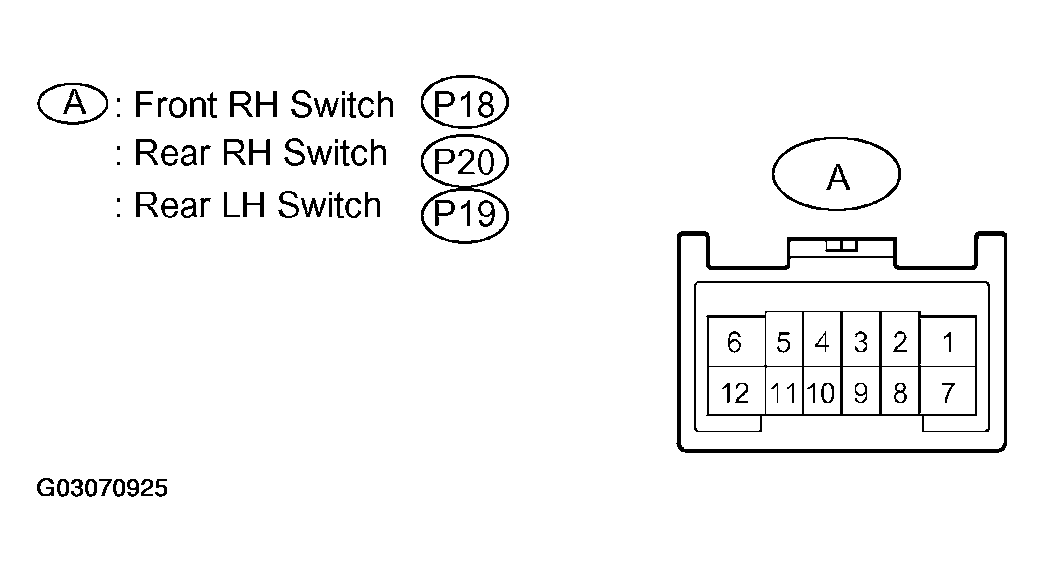

Fig 3: Identifying Connector Terminals Except Power Window Master Switch

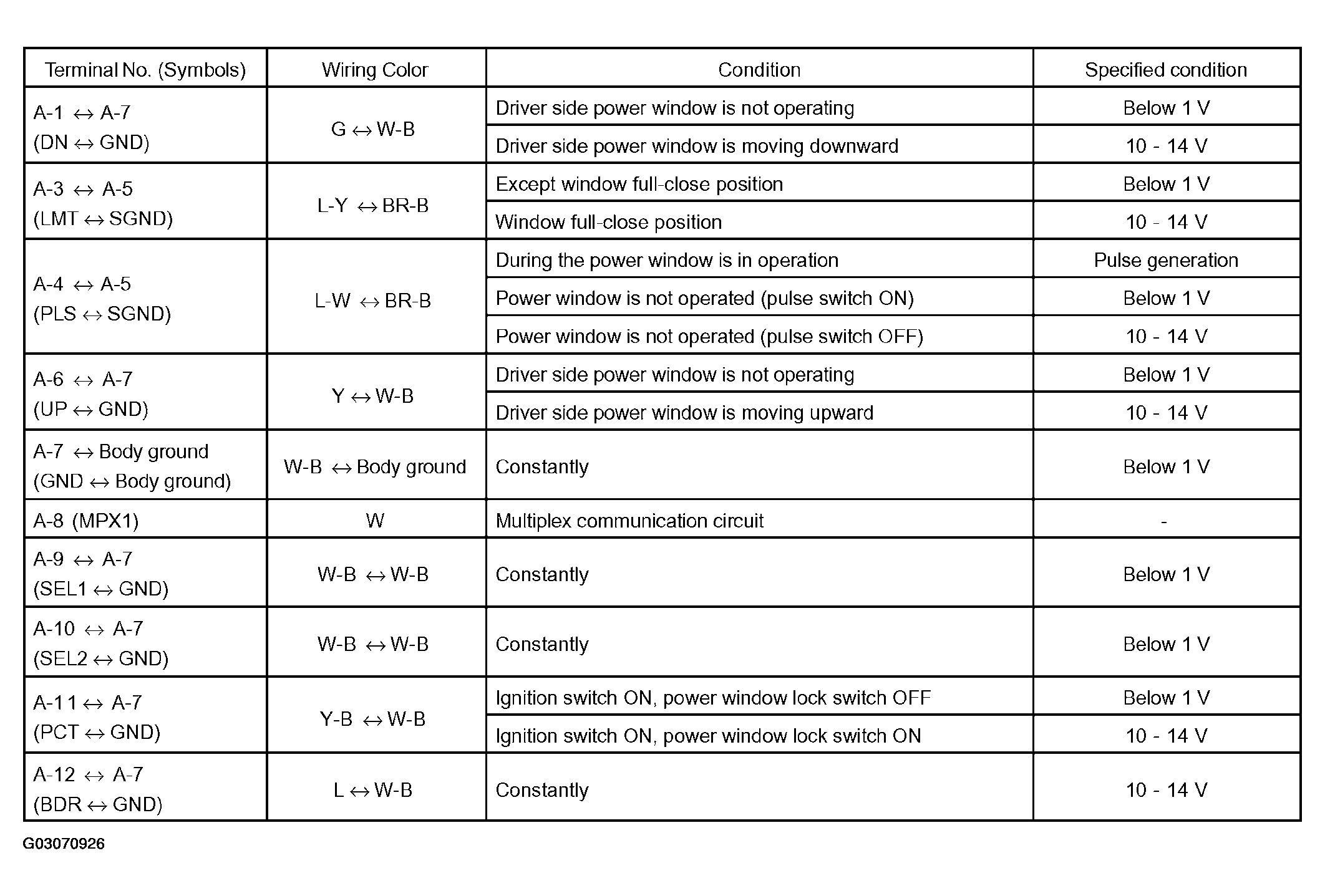

Fig 4: Terminals Reference Table
