Inspect Transponder Key Coil Continuity

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Check that there is continuity between terminals No. 1 and 2. If continuity is not as specified, replace the coil.

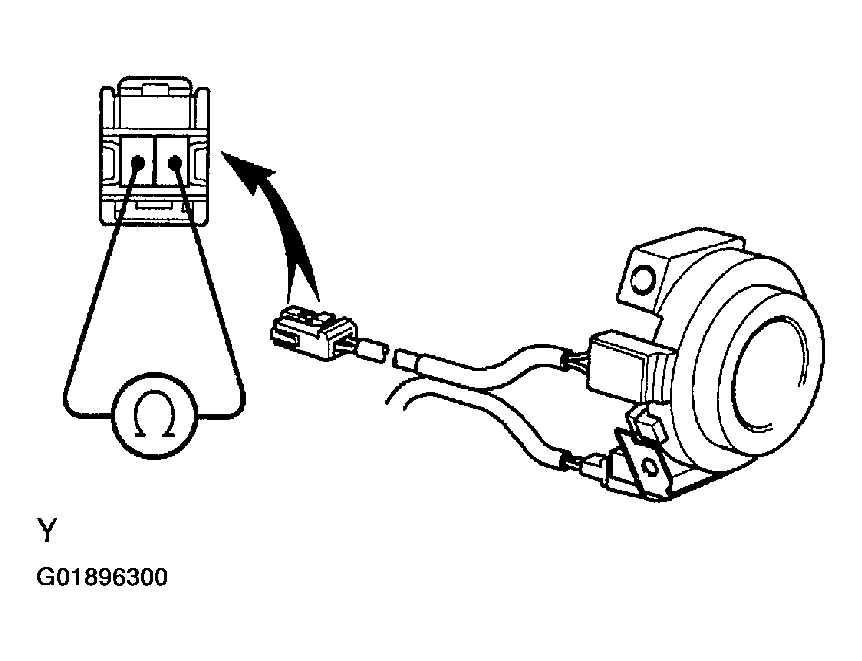

Fig 1: Testing Transponder Key Coil
G01896300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
