Emission System Component Location

NOTE: For emission system component location, refer to illustrations. See Fig 1-Fig 13 .

Fig 1: Locating Emission System Components (Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Emission System Components In Engine Compartment (Camry - Up To Jan. 2003 Production)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Emission System Components In Engine Compartment (Camry - Jan. 2003 & Later Production)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating Emission System Components (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Locating Emission System Components In Engine Compartment (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Locating Emission System Components (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Locating Emission System Components (Sequoia)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Locating Emission System Components (Sienna)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Locating Emission System Components (Tacoma)

Fig 10: Locating Emission System Components (Tundra 3.4L)

Fig 11: Locating Emission System Components (Tundra 4.7L)

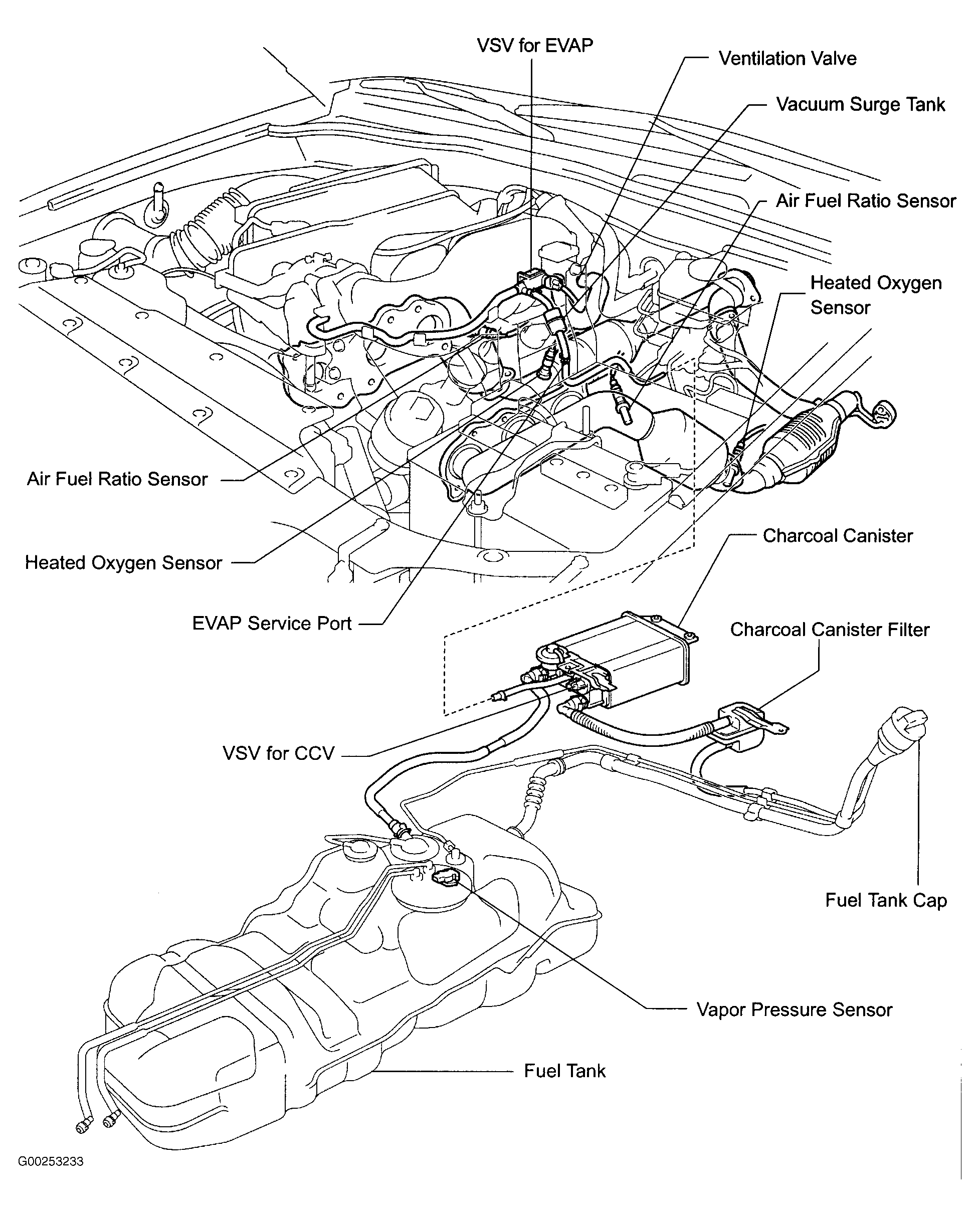

Fig 12: Locating Emission System Components (4Runner 4.0L)

Fig 13: Locating Emission System Components (4Runner 4.7L)
