Possible Causes

For DTC detection conditions and possible causes, see Fig 1.

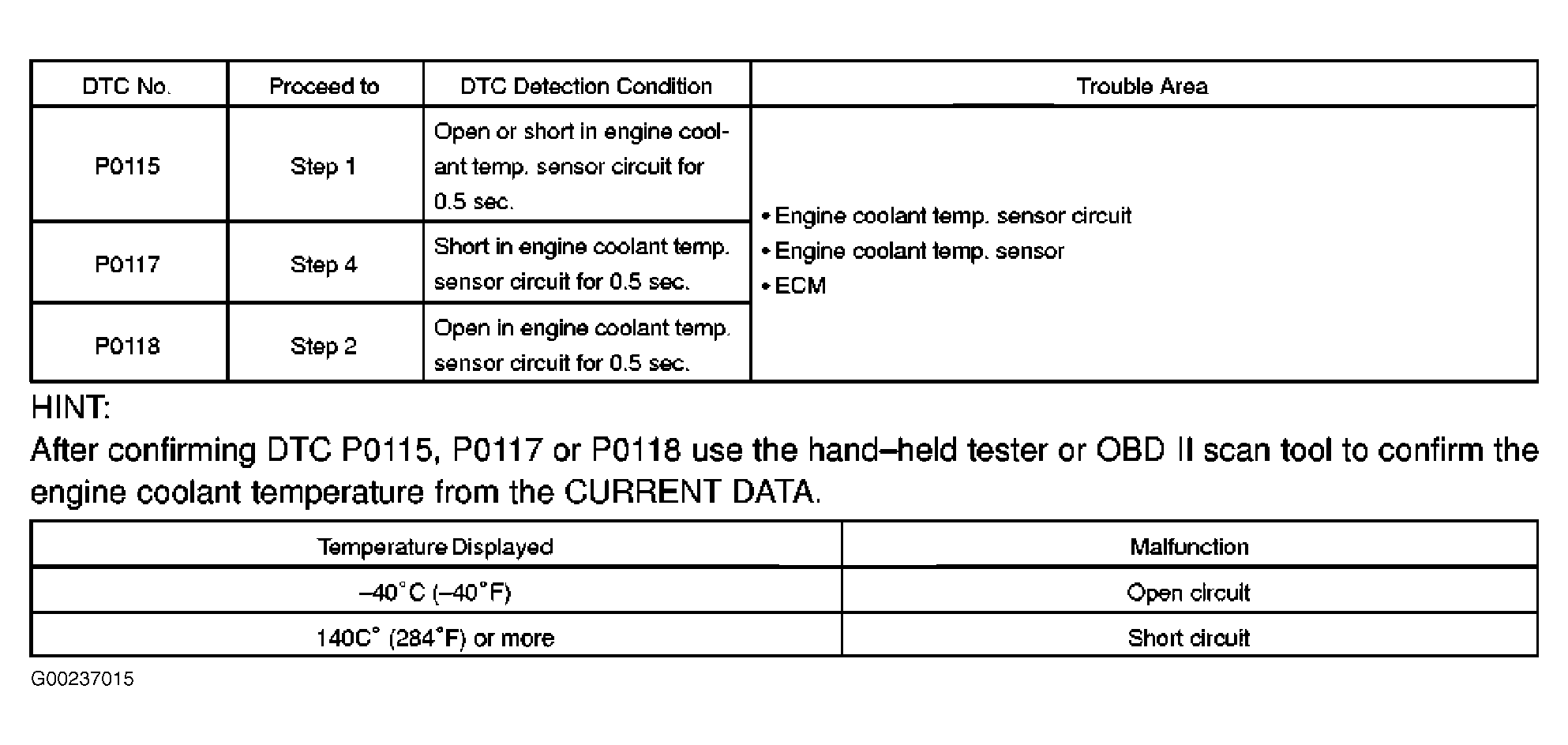

Fig 1: DTC Detection Conditions & Possible Causes
G00237015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

After confirming DTC P0115, use Toyota hand-held tester or scan tool to access CURRENT DATA to read the engine coolant temperature for ECT sensor. If displayed engine coolant temperature is -40°F (-40°C), ECT sensor circuit may be open. If displayed engine coolant temperature is 284°F (140°C) or more, ECT sensor circuit may be shorted.
