Section 607 (Navigation Ecu): Replacement

WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS
Installation is in the reverse order of removal.

REMOVE FRONT SEAT ASSEMBLY LH
POWER SEAT (See OVERHAUL )

MANUAL SEAT (See OVERHAUL )
REMOVE NAVIGATION ECU COVER
1. Remove the 4 claws and the navigation ECU cover.
Fig 1: Locating Navigation ECU Covers Removing Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NAVIGATION ECU W/BRACKET
1. Disconnect the connector.
2. Remove the 2 bolts and the navigation ECU w/ bracket.

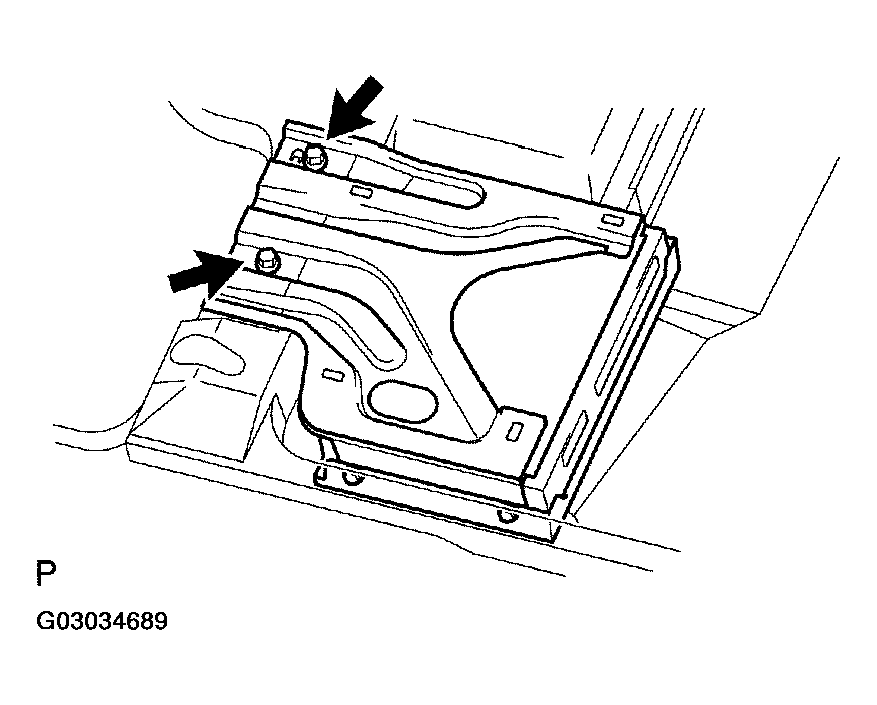

Fig 2: Identifying Navigation ECU W/Bracket'S Removing Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISC PLAYER BRACKET
1. Remove the 4 screws and the disc player bracket.
Fig 3: Identifying Disc Player Bracket'S Removing Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NAVIGATION ECU
INSTALL NAVIGATION ECU
HINT:

Perform the screen noise automatic adjustment when screen noise occurs (see SCREEN NOISE AUTOMATIC ADJUSTMENT ).
INSTALL FRONT SEAT ASSEMBLY LH
POWER SEAT (See OVERHAUL )

MANUAL SEAT (See OVERHAUL )
