Display Check Mode (Color Bar Check)

WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the color display on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Display Check" from the "Diagnosis MENU" screen.

Fig 1: Multi-Display On Screen - Diagnosis Menu
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Color Bar Check" from the "Display Check" screen.

Fig 2: Multi-Display On Screen - Display Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select a color bar from the "Color Bar Check Mode" screen.
HINT:
- The entire screen turns to the color or stripe selected.
- Touching the display will return to the "Color Bar Check" screen.

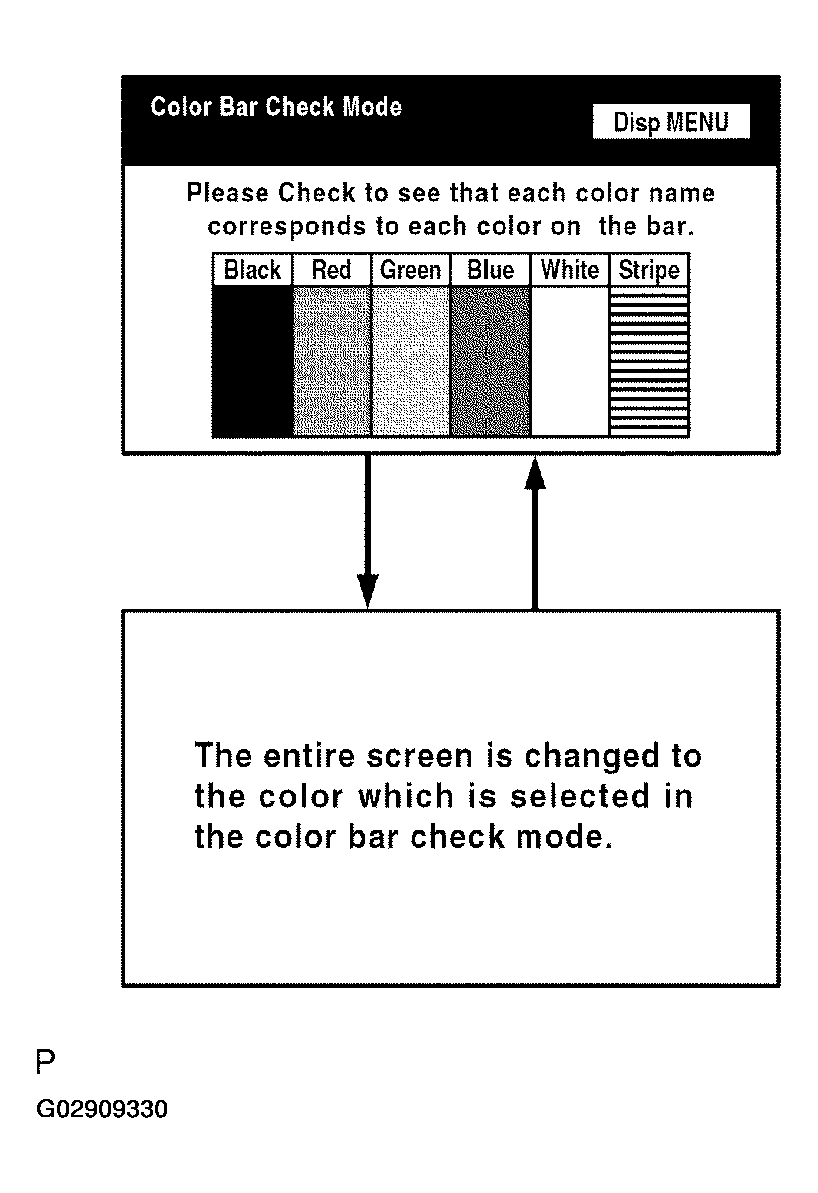

  Fig 3: Multi-Display On Screen - Color Bar Check Mode
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
