Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY CONTROLLER SUB-ASSY - MULTI-DISPLAY)

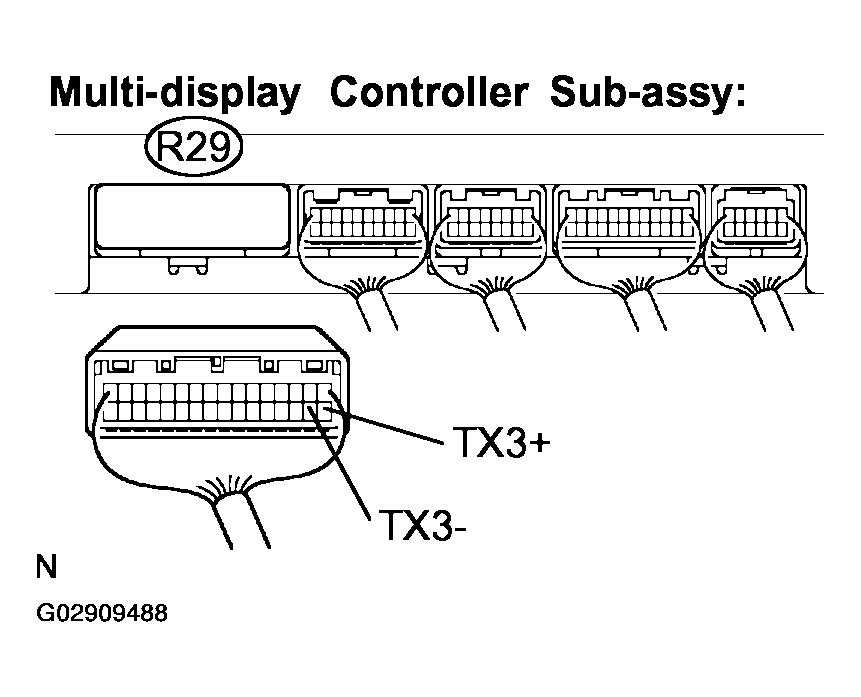

- Disconnect the connector from the multi-display controller sub-assy R29 and multi-display M4.
- Measure the resistance according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition TX3+ - TX+ Always Below 1 Ω TX3- - TX- Always Below 1 Ω TX3+ - Body ground Always 10 kΩ or higher TX3- - Body ground Always 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART (See DIAGNOSTIC TROUBLE CODE CHART )
