Clutch Switch Circuit

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For clutch switch circuit testing procedure, see Fig 1 and Fig 2 .

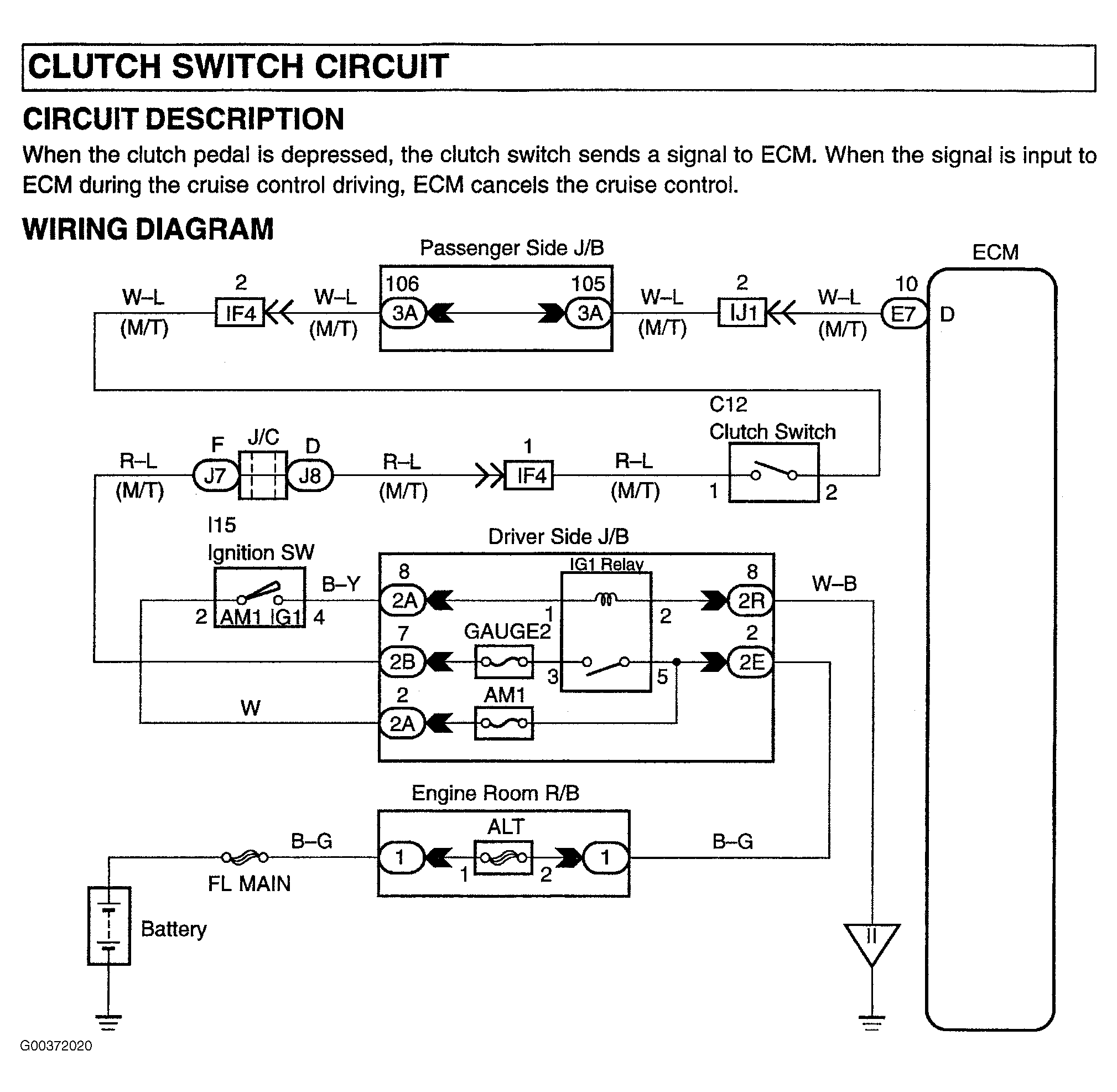

Fig 1: Clutch Switch Circuit Testing (1 Of 2)
G00372020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

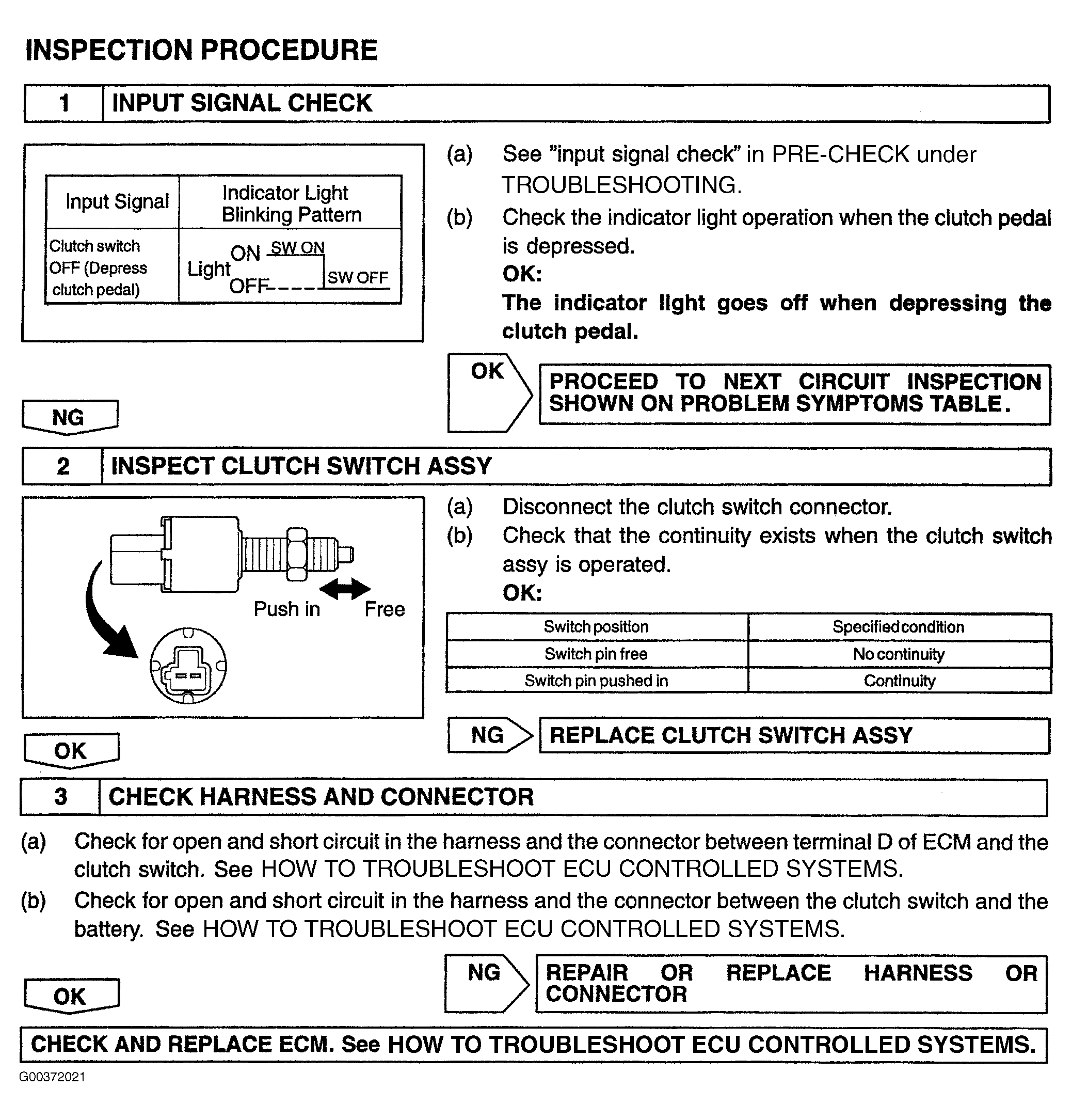

Fig 2: Clutch Switch Circuit Testing (2 Of 2)
G00372021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
