Cruise Control Main Switch ASSY: Replacement

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative terminal.
  2. Remove steering wheel cover lower No. 2 .
  3. Remove steering wheel cover lower No. 3 (w/o steering pad switch 4 steering wheel) .
  4. Remove connector cover (w/ steering pad switch 4 spoke steering wheel). See STEERING PAD SWITCH .
  5. Remove steering wheel cover lower No. 3 (3 spoke steering wheel).
  6. Inspect place front wheels facing straight ahead.
  7. Remove horn button .
  8. Remove steering wheel assy

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  9. Remove steering pad switch (w/ steering pad switch 4 spoke steering wheel). See STEERING PAD SWITCH .
  10. Remove cruise control main switch assy:
    1. 4 spoke steering wheel assy:

      Remove the 2 screws and steering wheel damper. See Fig 1.

    2. 4 Spoke steering wheel assy:

      Remove the 3 screws.

    3. 4 spoke steering wheel assy:

      Disengage the 2 claws and remove the steering wheel boss cover LWR. See Fig 2.

    4. 4 spoke steering wheel assy:

      Remove the 2 screws and cruise control main switch assy. See Fig 3.

    5. 3 spoke steering wheel assy:

      Remove the 3 screws. See Fig 4.

    6. 3 spoke steering wheel assy:

      Reverse the steering wheel, remove the 3 screws and cruise control main switch assy. See Fig 5.

    7. Disengage the wiring pins other than the cruise control main switch assy from the connector, and pull them out. See Fig 6.
  11. Center spiral cable .
  12. Install steering wheel assy
  13. Inspect steering wheel center point
  14. Inspect horn button assy
  15. Install horn button assy
  16. Inspect SRS warning light

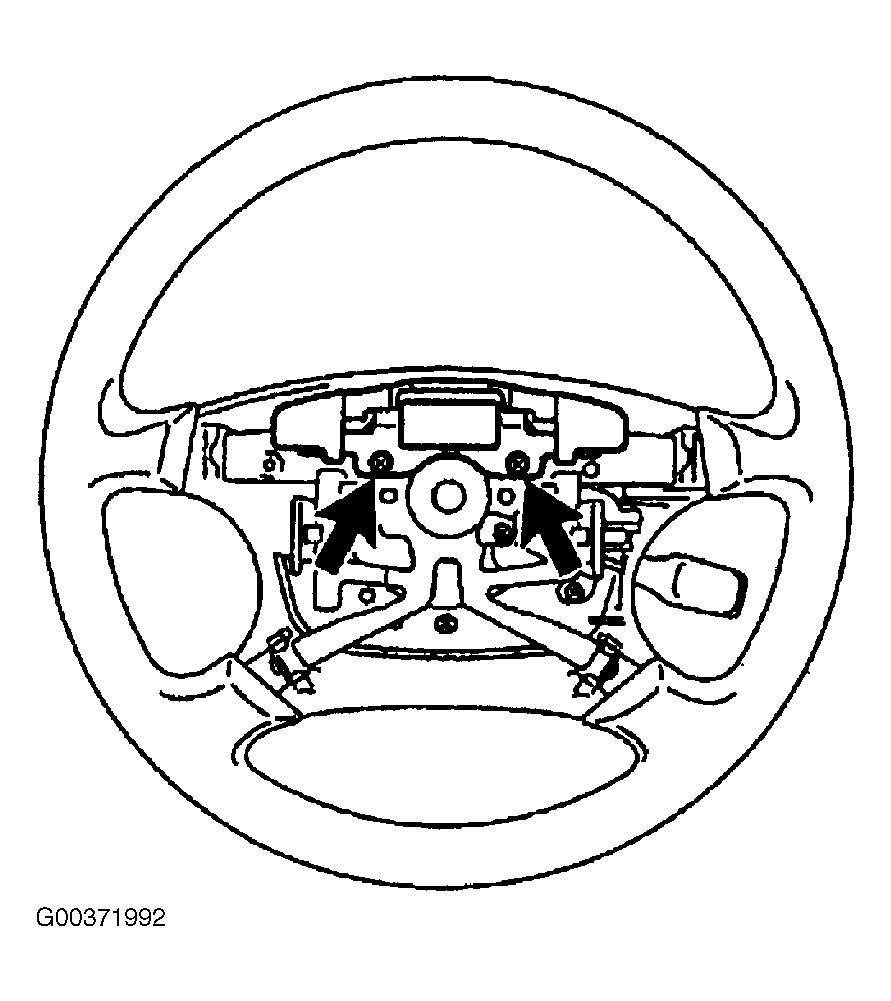

Fig 1: Locating 4 Spoke Steering Wheel Damper Screws
G00371992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

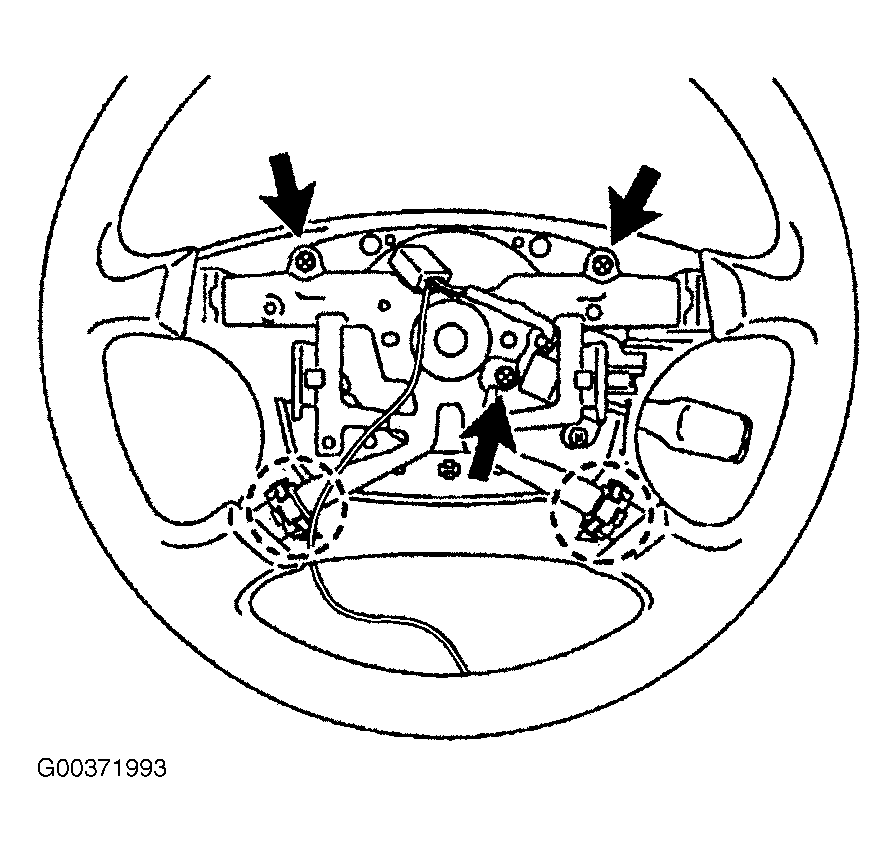

Fig 2: Locating 4 Spoke Steering Wheel Assembly Screws & Claws
G00371993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

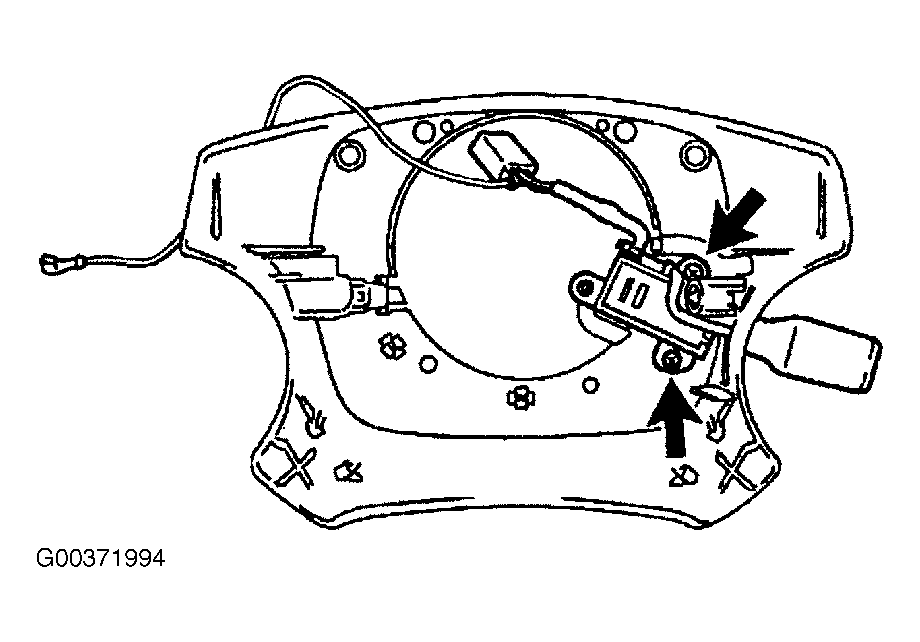

Fig 3: Locating 4 Spoke Steering Wheel Main Switch Assembly Screws
G00371994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

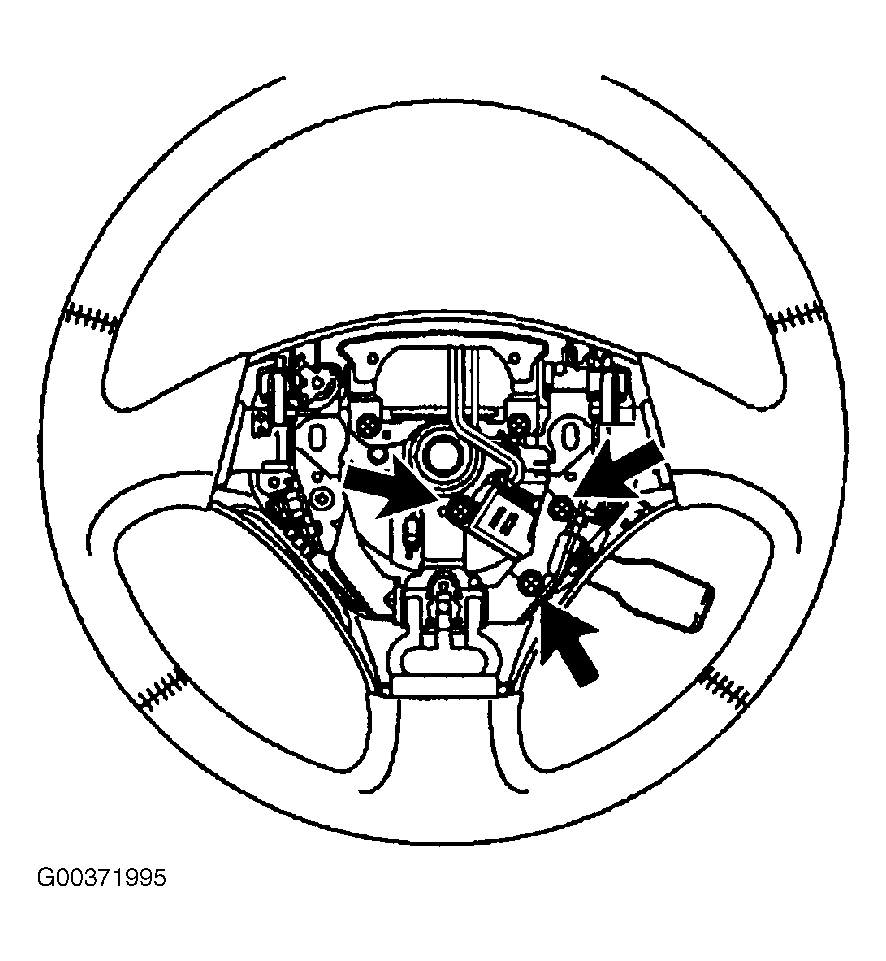

Fig 4: Locating 3 Spoke Steering Wheel Assembly Screws (Front Side)
G00371995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

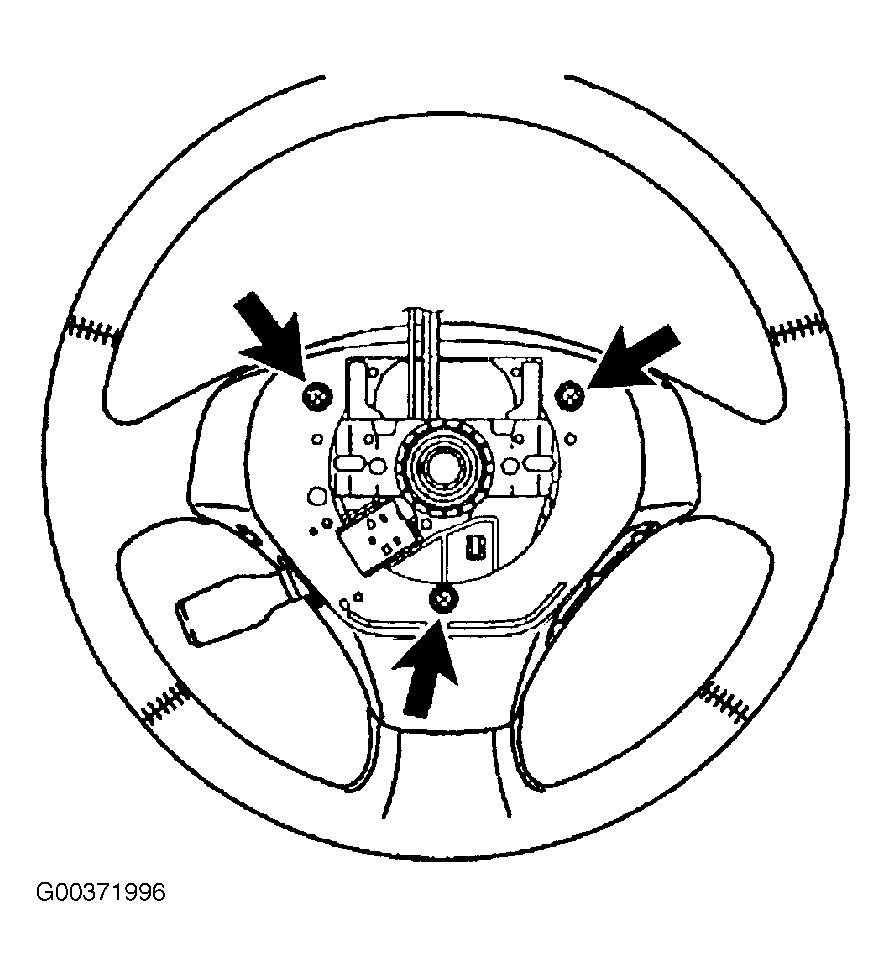

Fig 5: Locating 3 Spoke Steering Wheel Assembly Screws (Back Side)
G00371996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Disengaging Non-Cruise Control Switch Wiring
G00371997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
