Circuit Description

This DTC is output when the power window regulator motor assembly malfunctions.

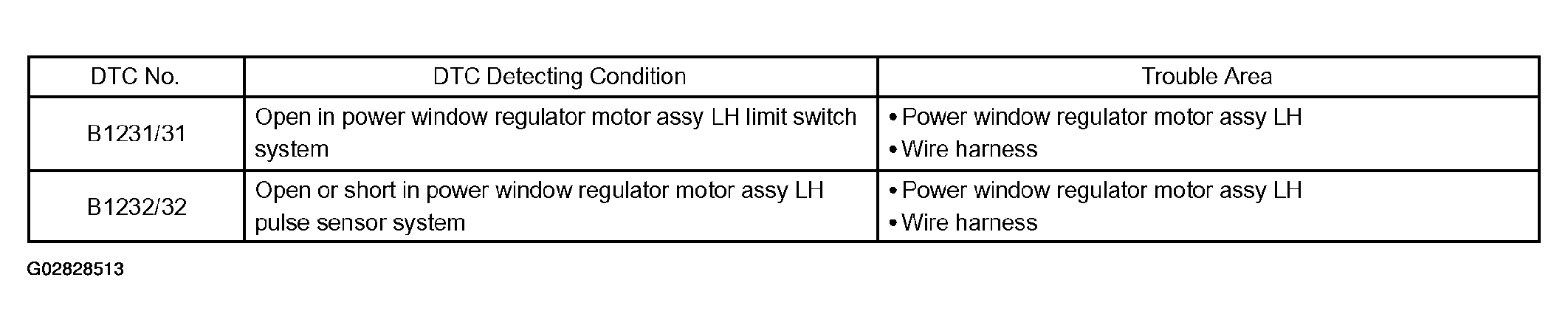

Fig 1: DTC Description Table

G02828513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
