Cruise Control Ecu ASSY: Replacement

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See step 10 under  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See step 12 under  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See step 16 under  REPLACEMENT  )
  4. REMOVE CRUISE CONTROL ECU ASSY
    1. Disconnect the connector.

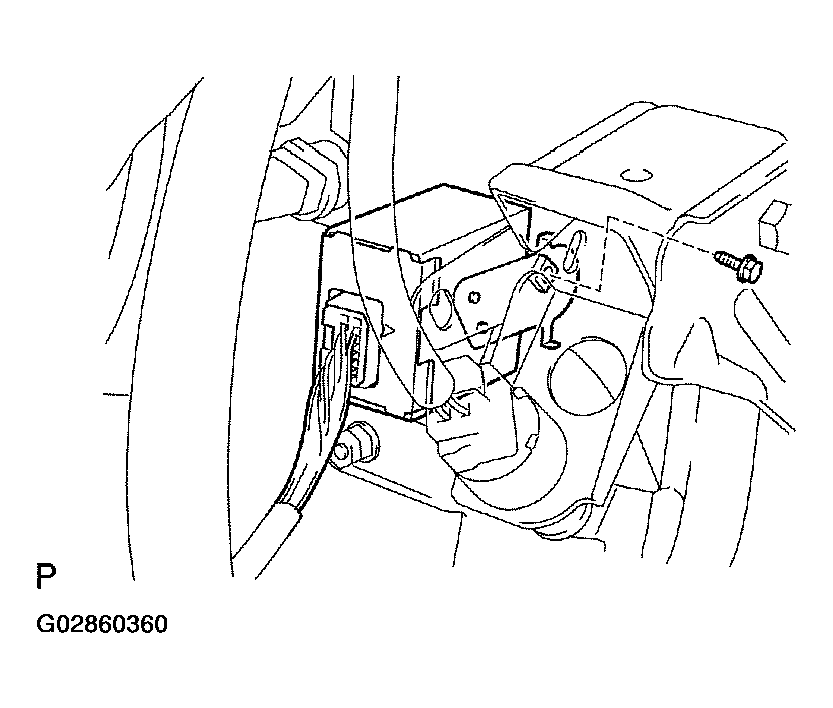

      Fig 1: Removing Cruise Control ECU Assembly
      G02860360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and cruise control ECU assy.
