Brake Pedal Sub-Assembly: Components

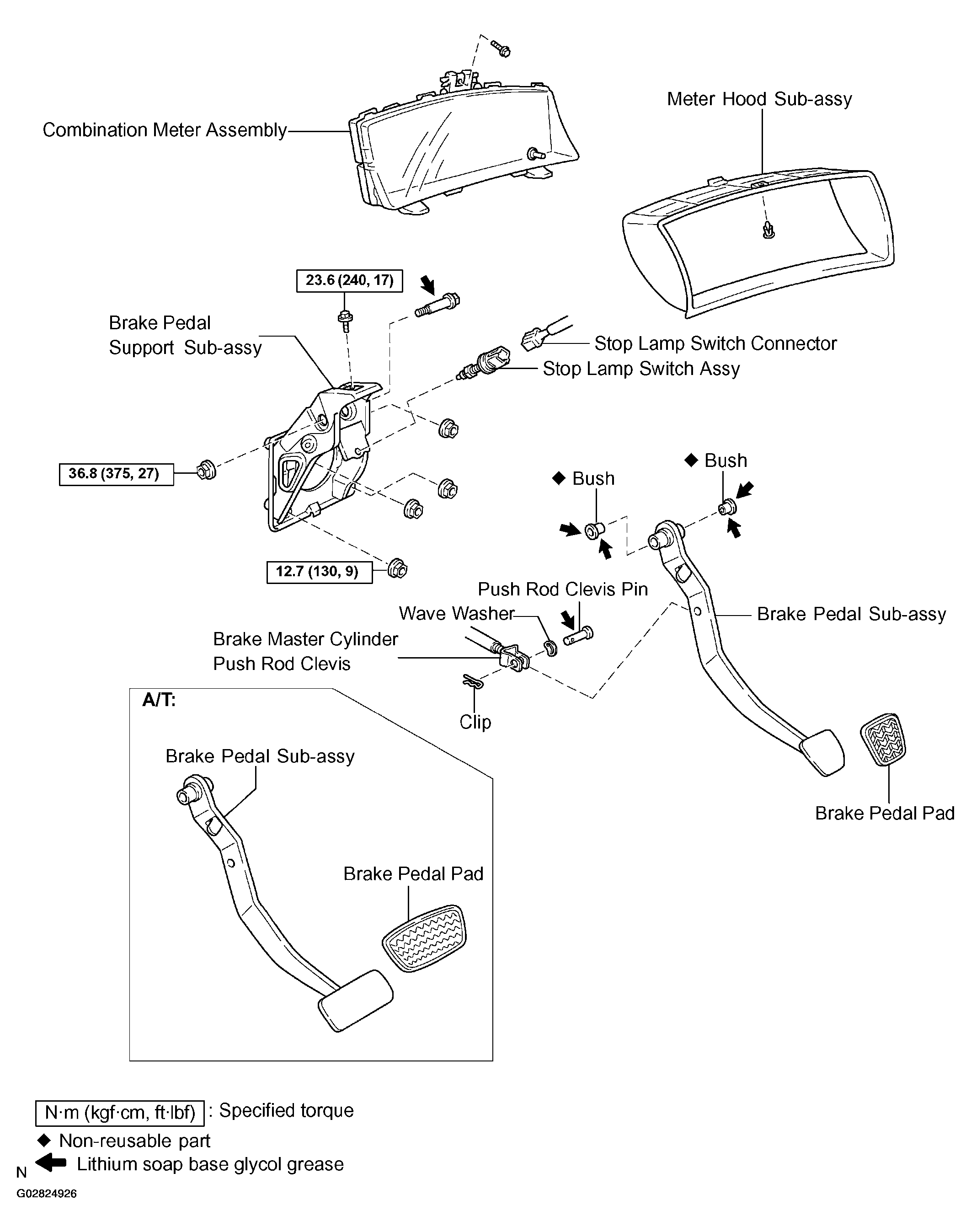

Fig 1: Identifying Brake Pedal Sub-Assy Components

G02824926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
