Inspection Procedure

1. Set the system in 30 seconds after filliping the security indicator to check if the alarm is triggered.

OK: NO PROBLEM

NG

1. Check the continuity and voltage of the glass breakage sensor ECU.

   Standard:

   GLASS BREAKAGE SENSOR ECU VOLTAGE & CONTINUITY CHECK



   Terminal No.	Condition	Specified condition
   G3-1 <=> Body ground	Constant	Battery voltage
   G3-3 <=> Body ground	Constant	Pulse generation
   G3-5 <=> Body ground	Constant	Continuity
   G3-8 <=> Body ground	Ignition switch ON	Battery voltage

   Fig 1: Checking Glass Breakage Sensor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: CHECK AND REPLACE GLASS BREAKAGE SENSOR ECU

OK: Go to next step

1. Disconnect the TVIP ECU and glass breakage sensor ECU connectors.
2. Check the continuity and between the connectors on the harness side.

   Standard:

   WIRE HARNESS (TVIP ECU <=> GLASS BREAKAGE SENSOR ECU) CONTINUITY CHECK



   Symbols (Terminal No.) (TVIP ECU <=> Sensor ECU)	Specified condition
   IOUT (T3-11) <=> IOUT (G3-3)	Continuity

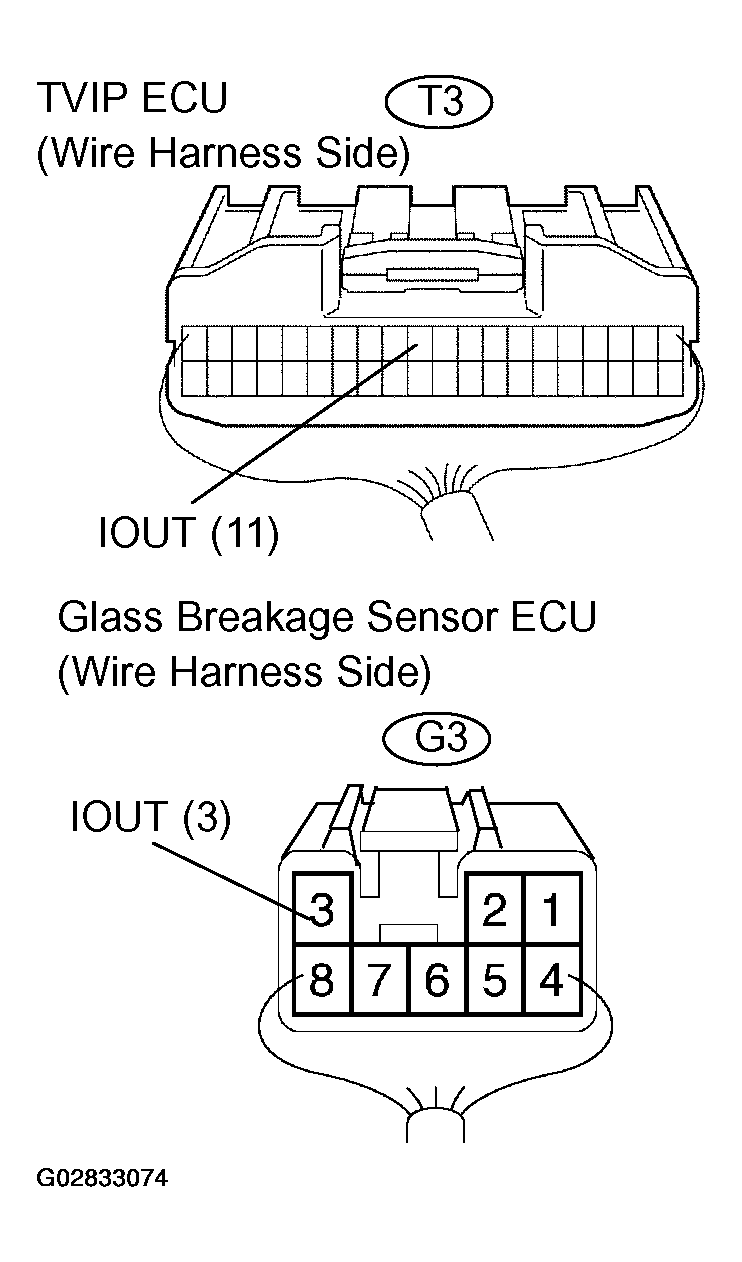

   Fig 2: Identifying Glass Breakage Sensor & TVIP ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK: Go to next step

1. Disconnect the glass breakage sensor ECU connector.
2. Check the continuity between the terminal of the glass breakage sensor ECU connector and the body ground.

   Standard:

   WIRE HARNESS (GLASS BREAKAGE SENSOR ECU <=> BODY GROUND) CONTINUITY CHECK



   Symbols (Terminal No.) (Glass breakage sensor <=> Body ground)	Specified condition
   GND (G3-6) <=> Body ground	Continuity

   Fig 3: Identifying Glass Breakage Sensor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK CHECK AND REPLACE TVIP ECU  . See ELECTRONIC CIRCUIT INSPECTION PROCEDURE .
