Inspection Procedure

CHECK DOOR LOCK (See INSPECTION .
NG: REPLACE DOOR LOCK

OK: Go to next step

CHECK WIRE HARNESS (TVIP ECU <=> DOOR LOCK)

Disconnect the TVIP ECU and door lock connectors.

Check the continuity between the terminals of the TVIP ECU and door lock connectors.

Standard:

WIRE HARNESS (TVIP ECU <=> DOOR LOCK) CONTINUITY CHECK

Symbols (Terminal No.) (TVIP ECU <=> Door lock)	Specified condition
LSWD (T3-37) <=> D8-8	Continuity
LSWP (T3-38) <=> D9-7	Continuity

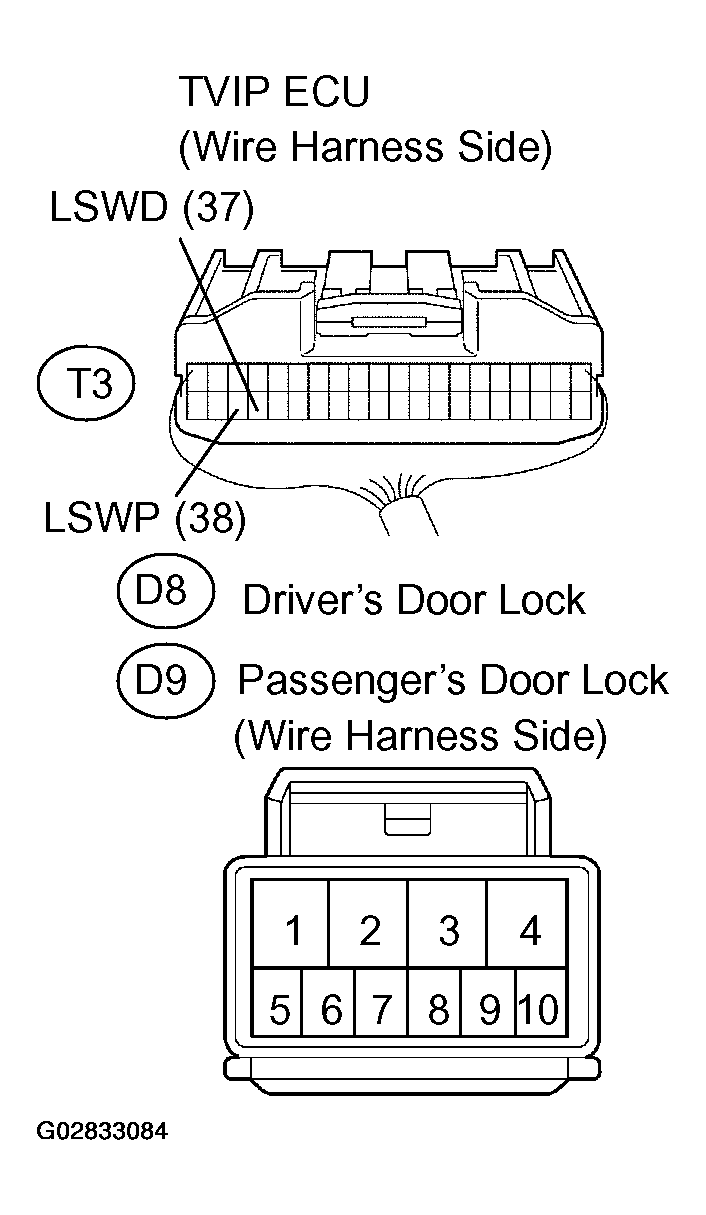

Fig 1: Checking Wire Harness Connecting TVIP ECU And Door Lock

G02833084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK: Go to next step

CHECK WIRE HARNESS (DOOR LOCK <=> BODY GROUND)
1. Disconnect the door lock connector.
2. Check the continuity between the terminal of the door lock connector and the body ground.
  Standard:

  Fig 2: Door Lock Connector Continuity Check
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 3: Identifying Door Lock Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS (See PROBLEM SYMPTOMS )
