Cruise Control Ecu ASSY: Replacement

  1. REMOVE METER HOOD SUB-ASSY
  2. REMOVE COMBINATION METER ASSY
  3. REMOVE CRUISE CONTROL ECU ASSY
    1. Disconnect the connector.
    2. Remove the screw and cruise control ECU assy.

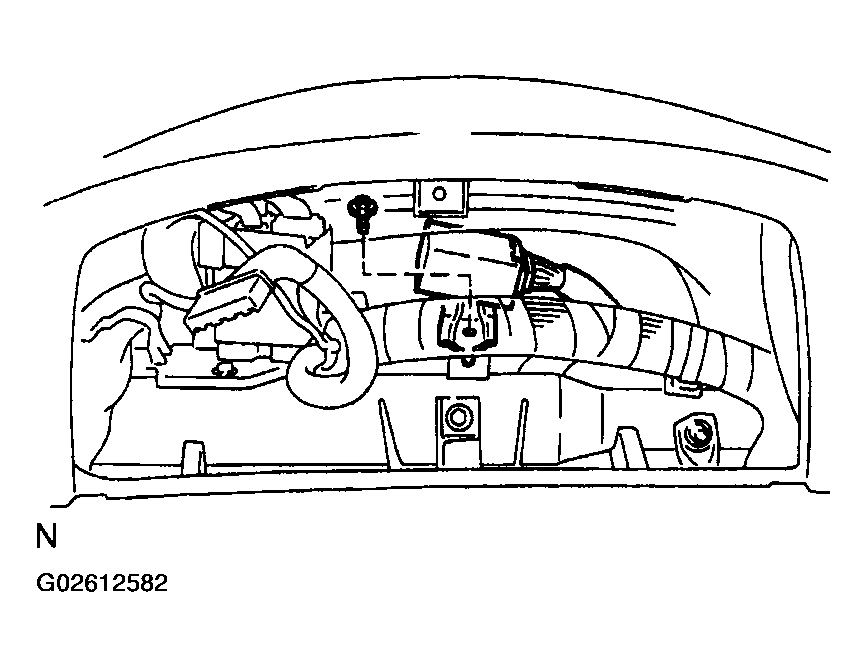

    Fig 1: Removing Cruise Control ECU Assembly
    G02612582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
