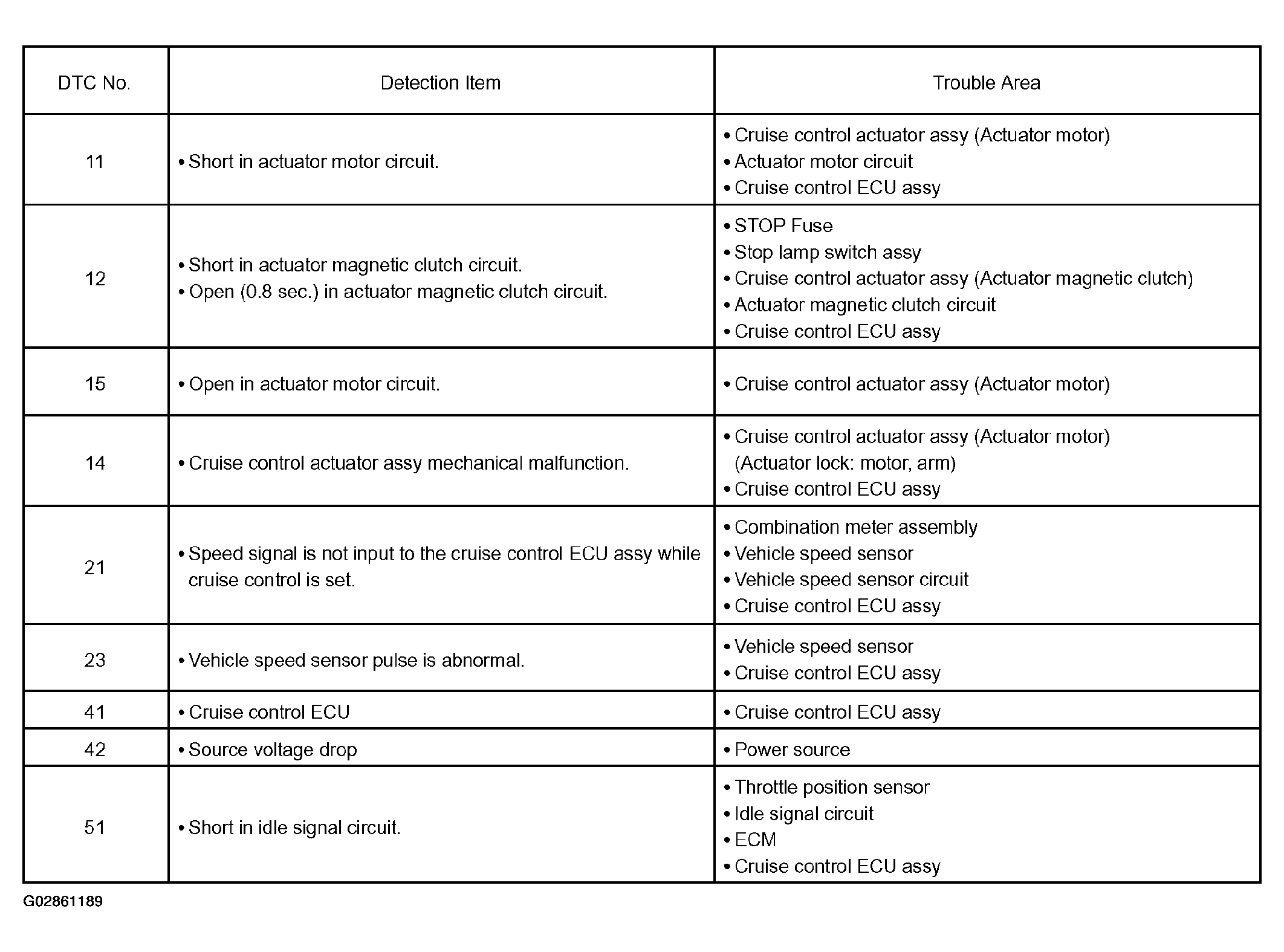

Diagnostic Trouble Code Chart
If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, turn to the page referred to under the "See page" for respective "DTC No." in the DTC chart.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
