O/D Main Switch Circuit: Wiring Diagram

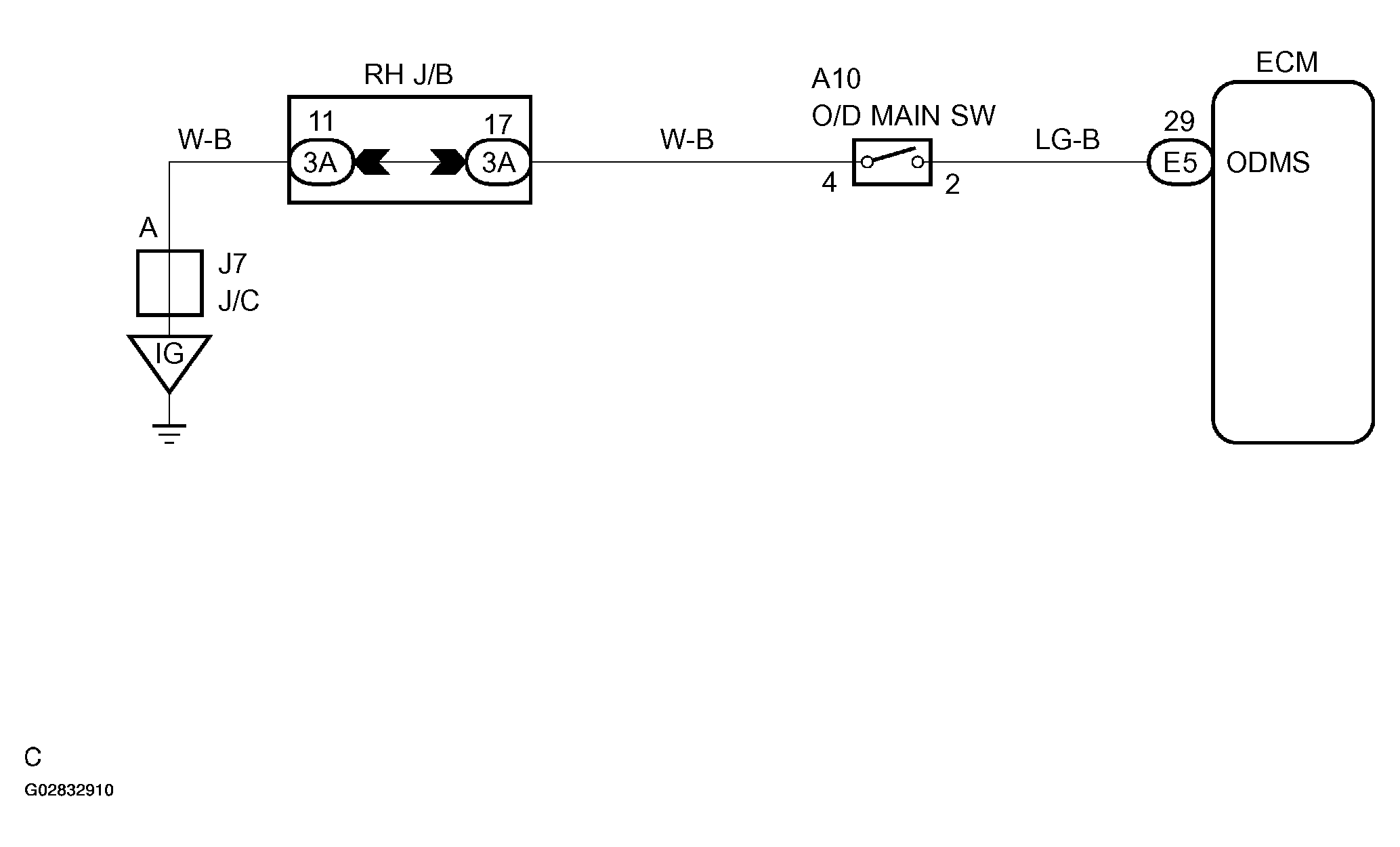

Fig 1: O/D Main Switch Circuit Diagram

G02832910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
