Readiness Monitor Drive Pattern

For readiness monitor drive pattern description, see Fig 1.

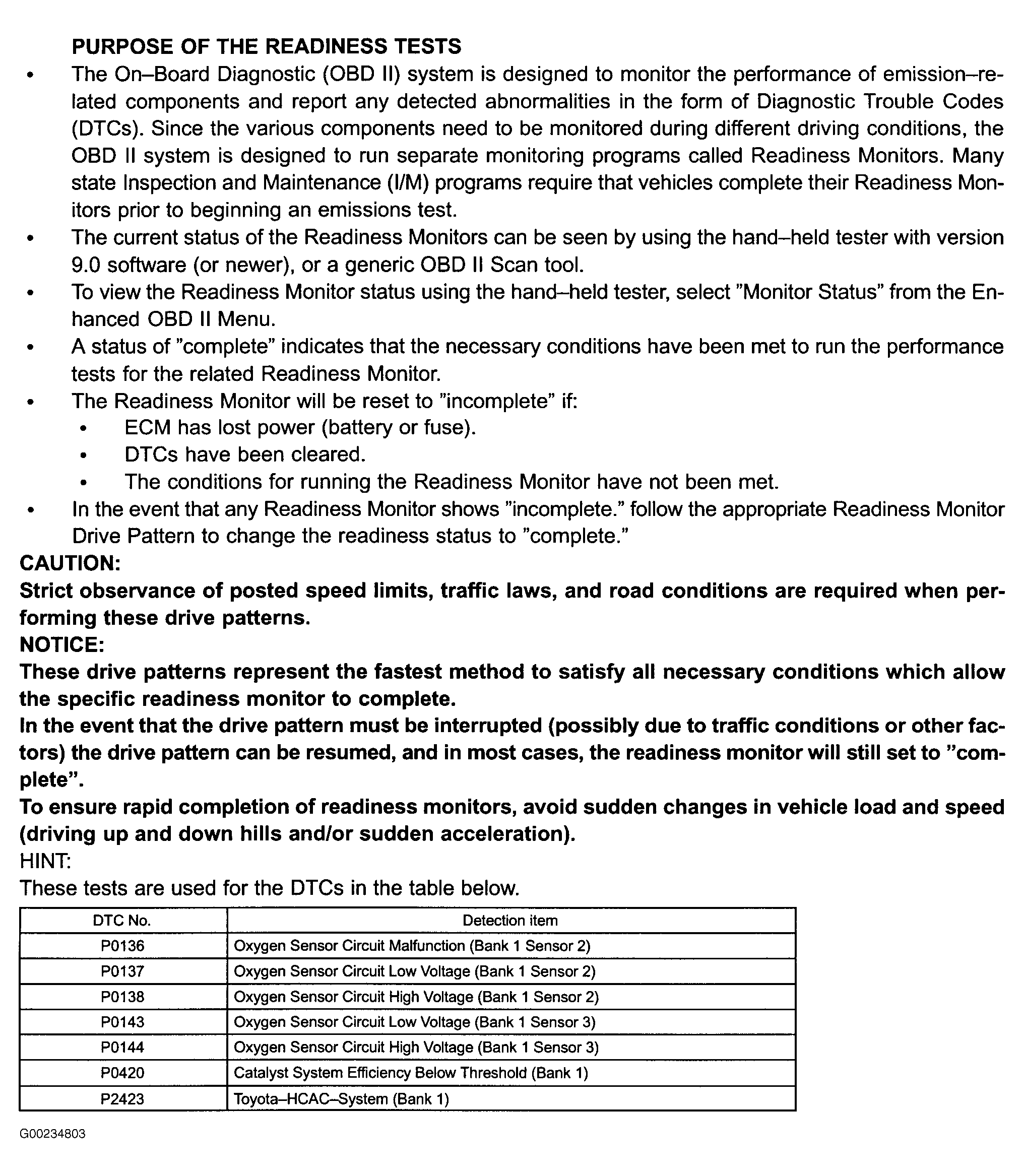

Fig 1: Readiness Monitor Drive Pattern Description

G00234803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
