Mode 06 Data

To read MODE 06 DATA, see Fig 1.

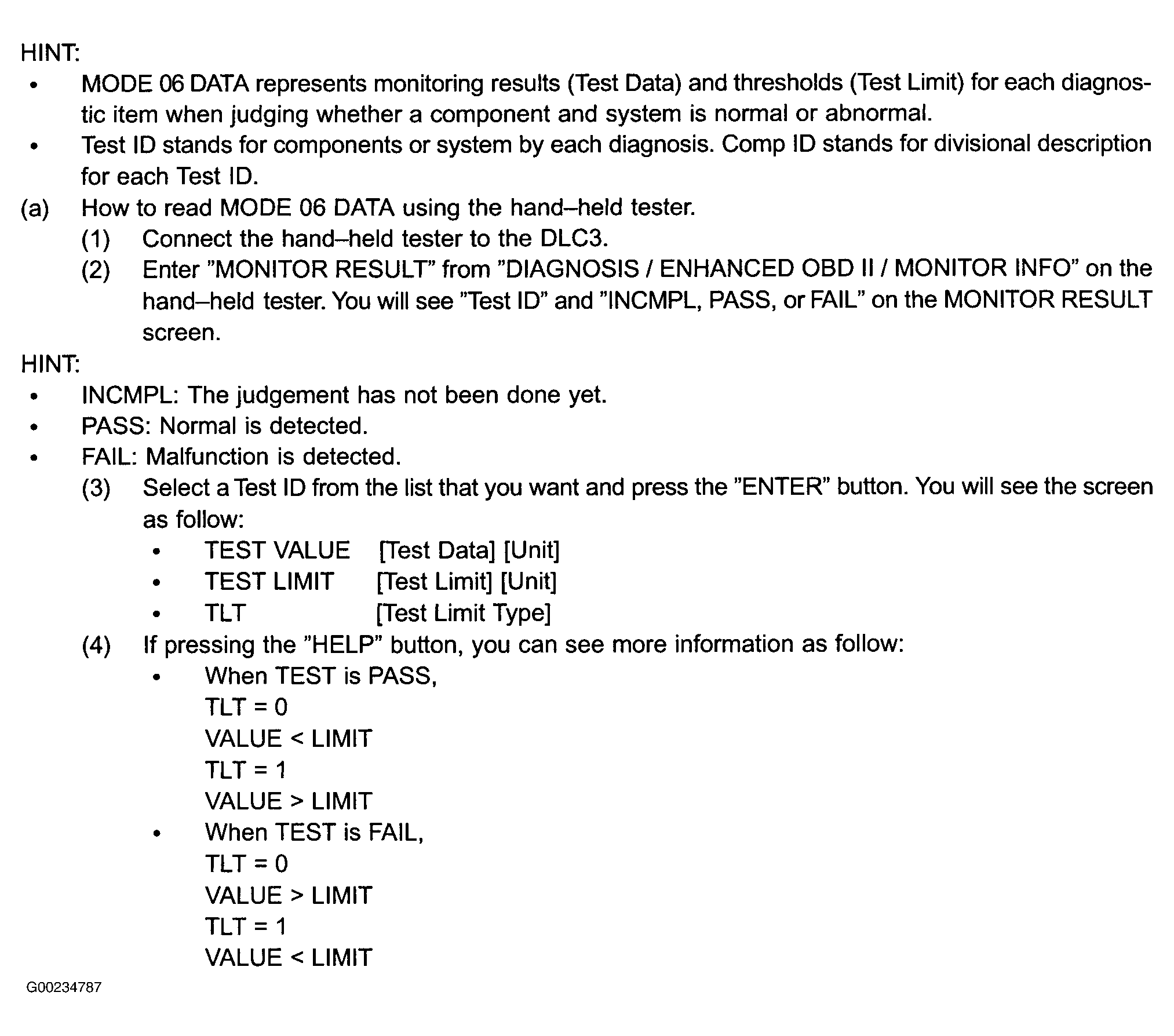

Fig 1: Reading MODE 06 DATA

G00234787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
