Home >> Toyota >> 2003 >> Camry XLE, 2.4 E >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostics >> Location

Power Window Control System - Diagnostics: Location

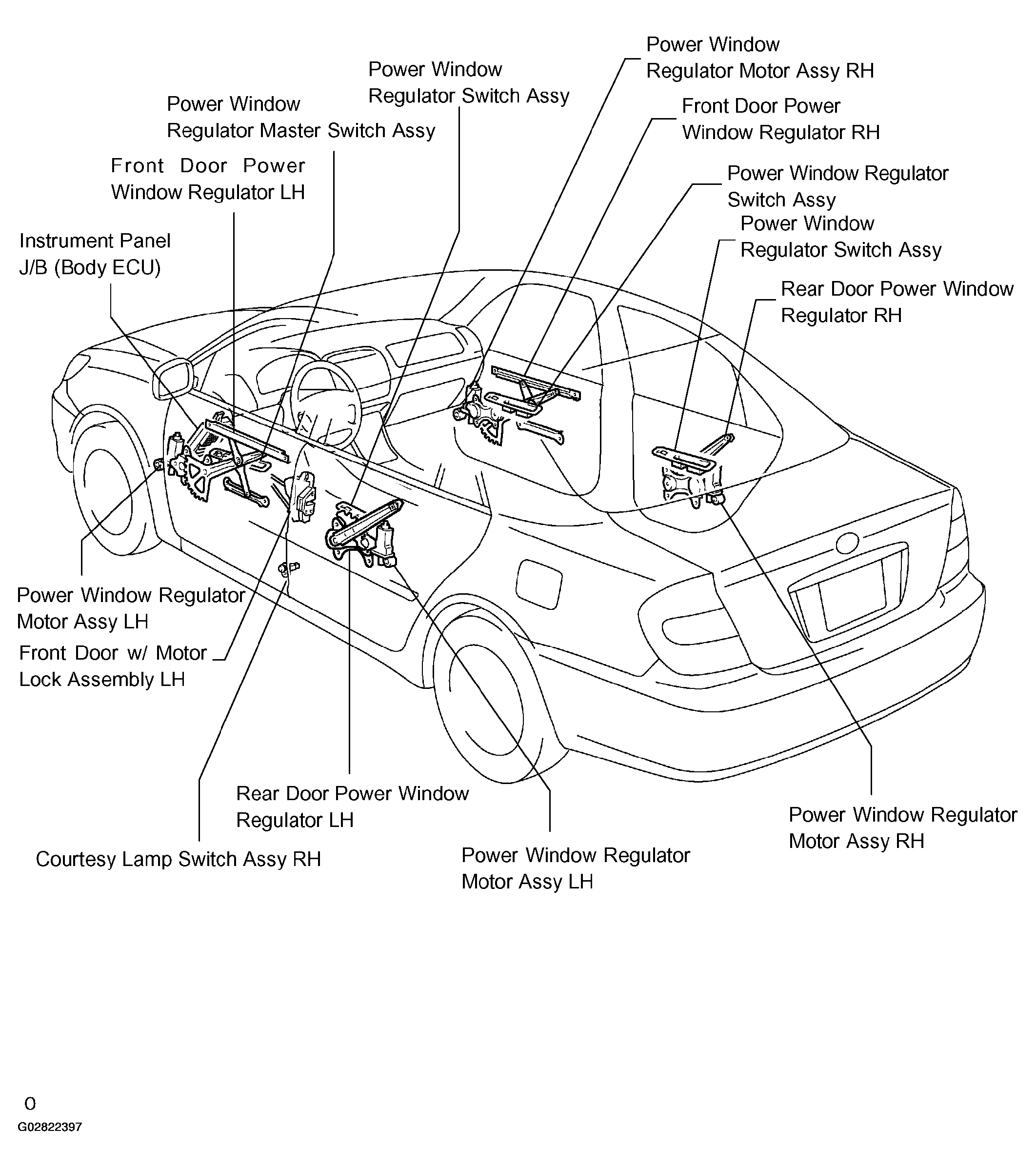

Fig 1: Identifying Power Window Control System Component Locations

G02822397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
