Position Sensor Power Source Circuit: Wiring Diagram

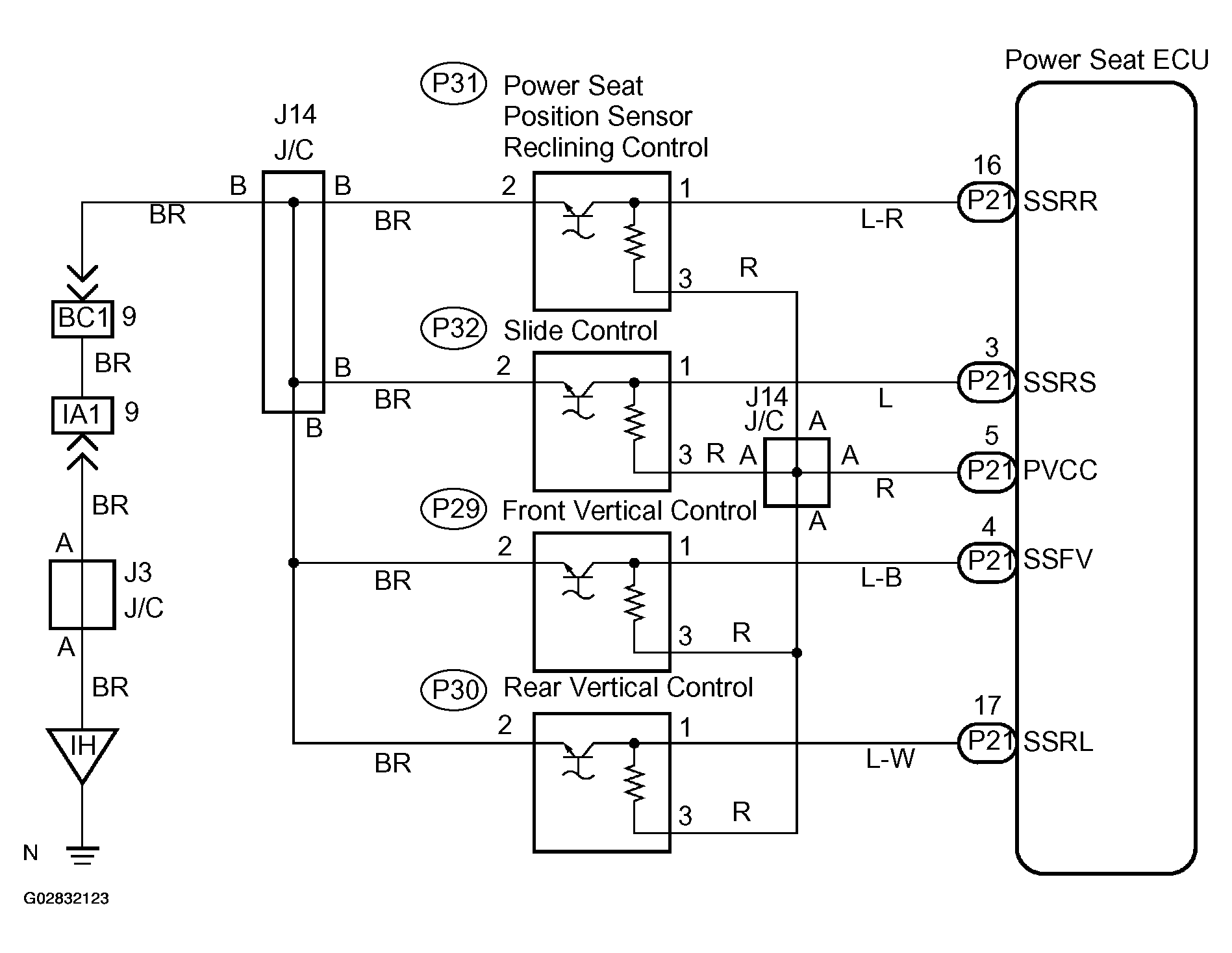

Fig 1: Wiring Diagram - Position Sensor Power Source Circuit

G02832123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
