Inspection Procedure

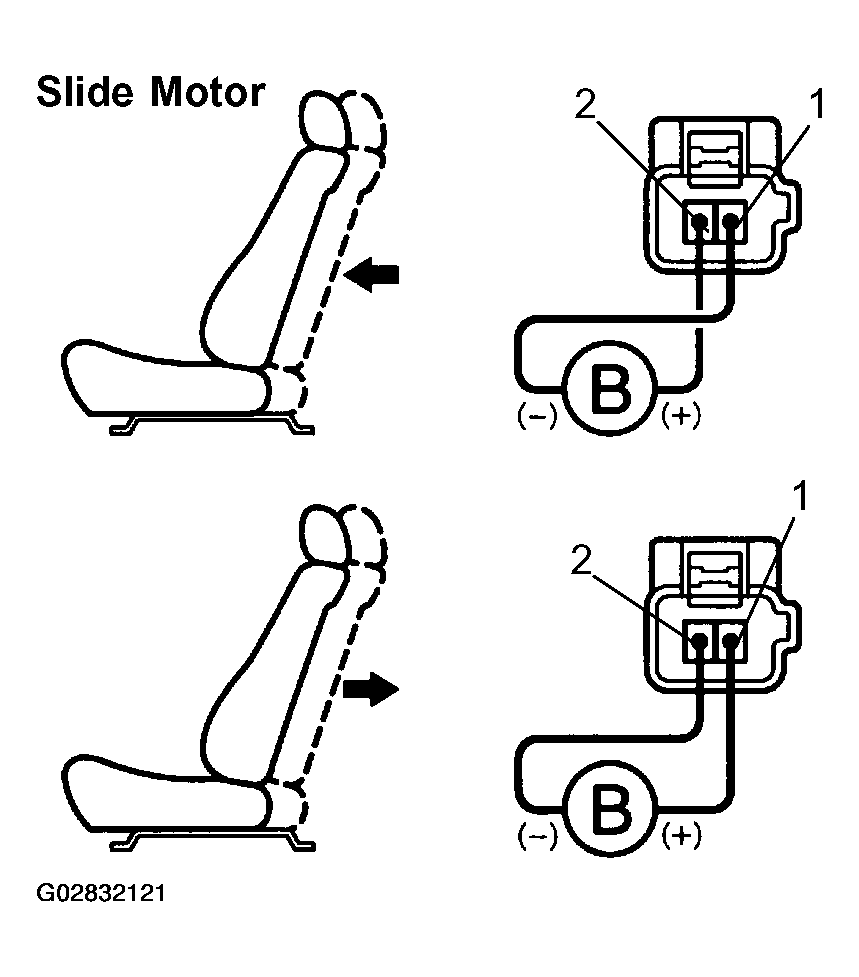

Fig 1: Checking Slide Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PREPARATION: Slide Motor

1. Remove seat.
2. Disconnect each motor connector.

CHECK:

Check seat movement when battery positive voltage is applied to each motor.

Slide Motor

CHECK:

Connect battery (+) to terminal 2 and battery (-) to terminal 1 of the slide motor connector.

OK: The seat moves forward.

CHECK:

Connect battery (-) to terminal 2 and battery (+) to terminal 1 of the slide motor connector.

OK: The seat moves backward.

Front Vertical Motor

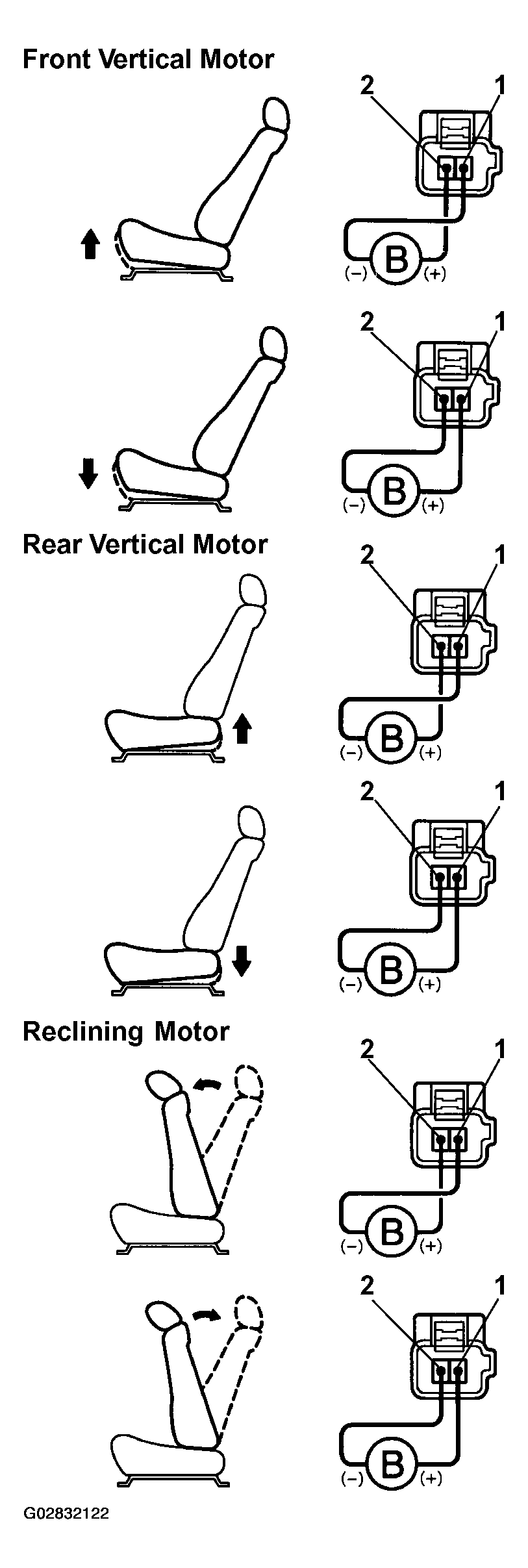

Fig 2: Checking Front Vertical Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK:

Connect battery (+) to terminal 2 and battery (-) to terminal 1 of the front vertical motor connector.

OK: The front of the seat cushion rises.

CHECK:

Connect battery (-) to terminal 2 and battery (+) to terminal 1 of the front vertical motor connector.

OK: The front of the seat cushion lowers.

Rear Vertical Motor

CHECK:

Connect battery (+) to terminal 2 and battery (-) to terminal 1 of the rear vertical motor connector.

OK: The front of the seat cushion rises.

CHECK:

Connect battery (-) to terminal 2 and battery (+) to terminal 1 of the rear vertical motor connector.

OK: The front of the seat cushion lowers.

Reclining Motor

CHECK:

Connect battery (+) to terminal 2 and battery (-) to terminal 1 of the reclining motor connector.

OK:

The seat back returns to up right.

CHECK:

Connect battery (-) to terminal 2 and battery (+) to terminal 1 of the reclining motor connector.

OK: The seat back is reclining.

NG: Replace motor.

OK: Go to next step.

NG: Repair or replace harness or connector.

OK: Proceed to next circuit inspection shown on problem symptom table (See  PROBLEM SYMPTOMS TABLE  ).
