Circuit Description

This circuit provides power to operate the driver door ECU.

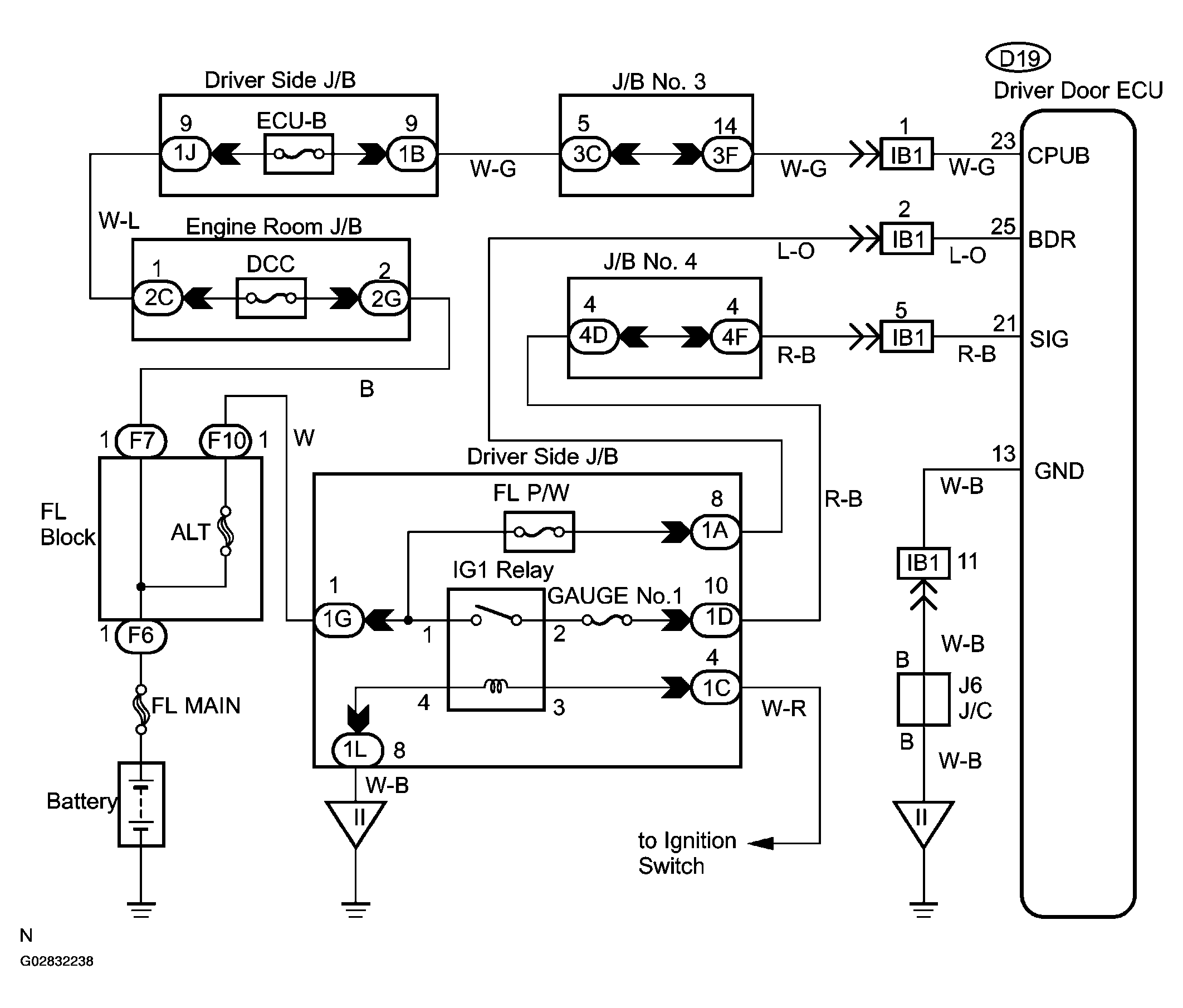

Fig 1: Wiring Diagram - Power Source Circuit

G02832238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
