Cancel Switch Circuit (Cruise Control Switch)
Cancel Switch Circuit (Cruise Control Switch)
For cancel switch circuit (cruise control switch) testing procedure, see
Fig 1
and
Fig 2
.

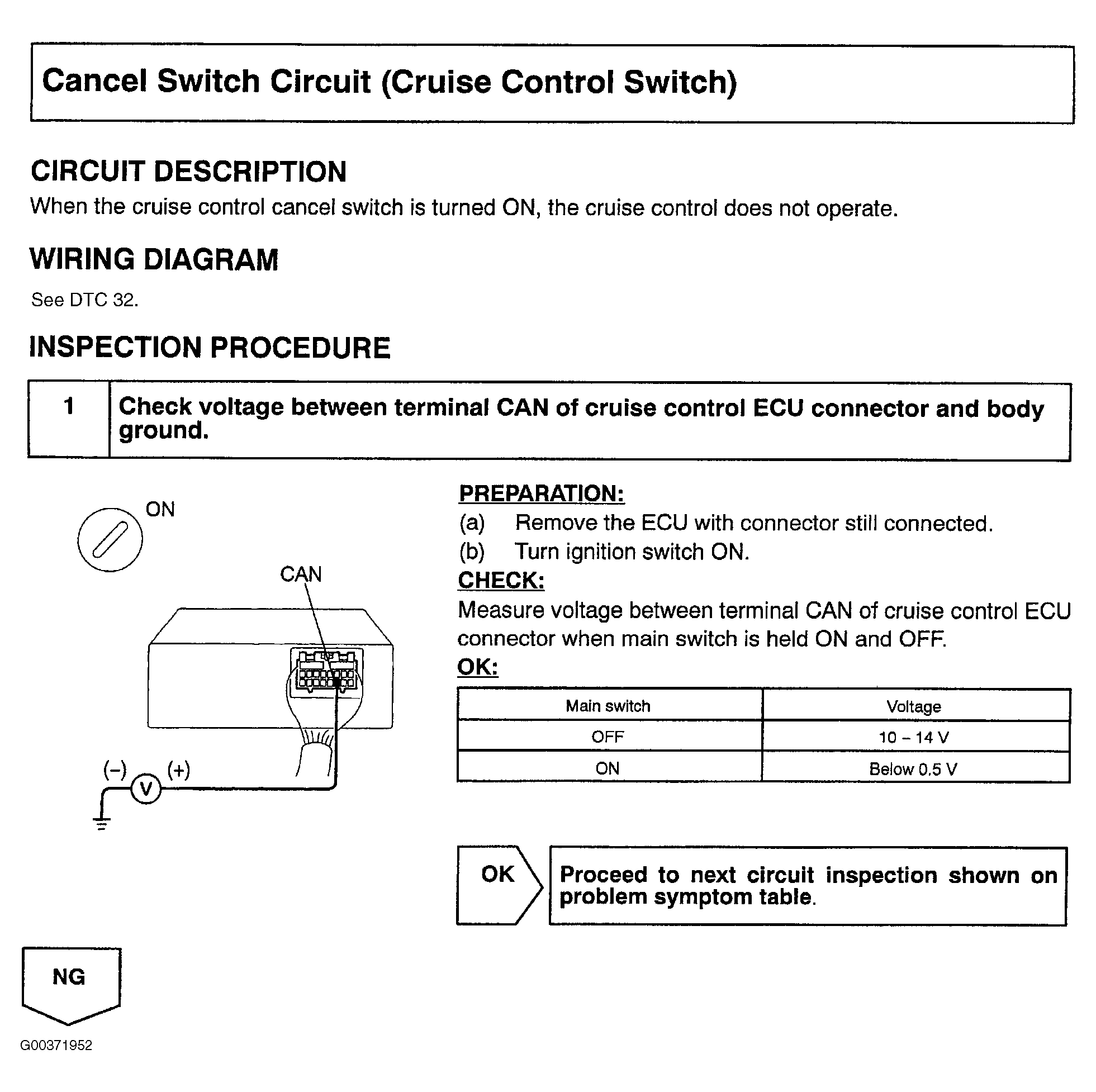

Fig 1: Testing Cancel Switch Circuit (Cruise Control Switch - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

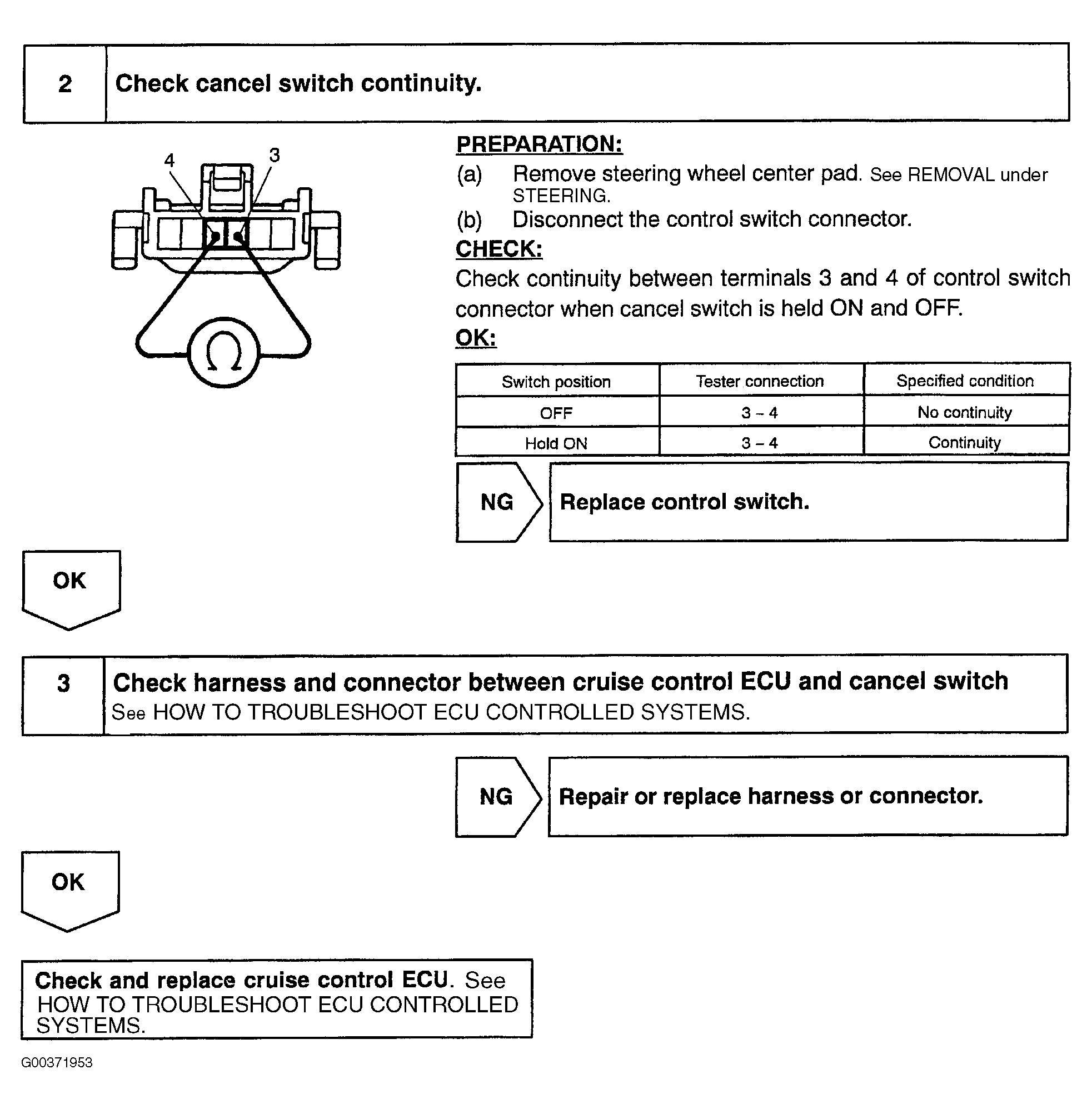

Fig 2: Testing Cancel Switch Circuit (Cruise Control Switch - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
