Ignition Switch Power Source Circuit: Wiring Diagram

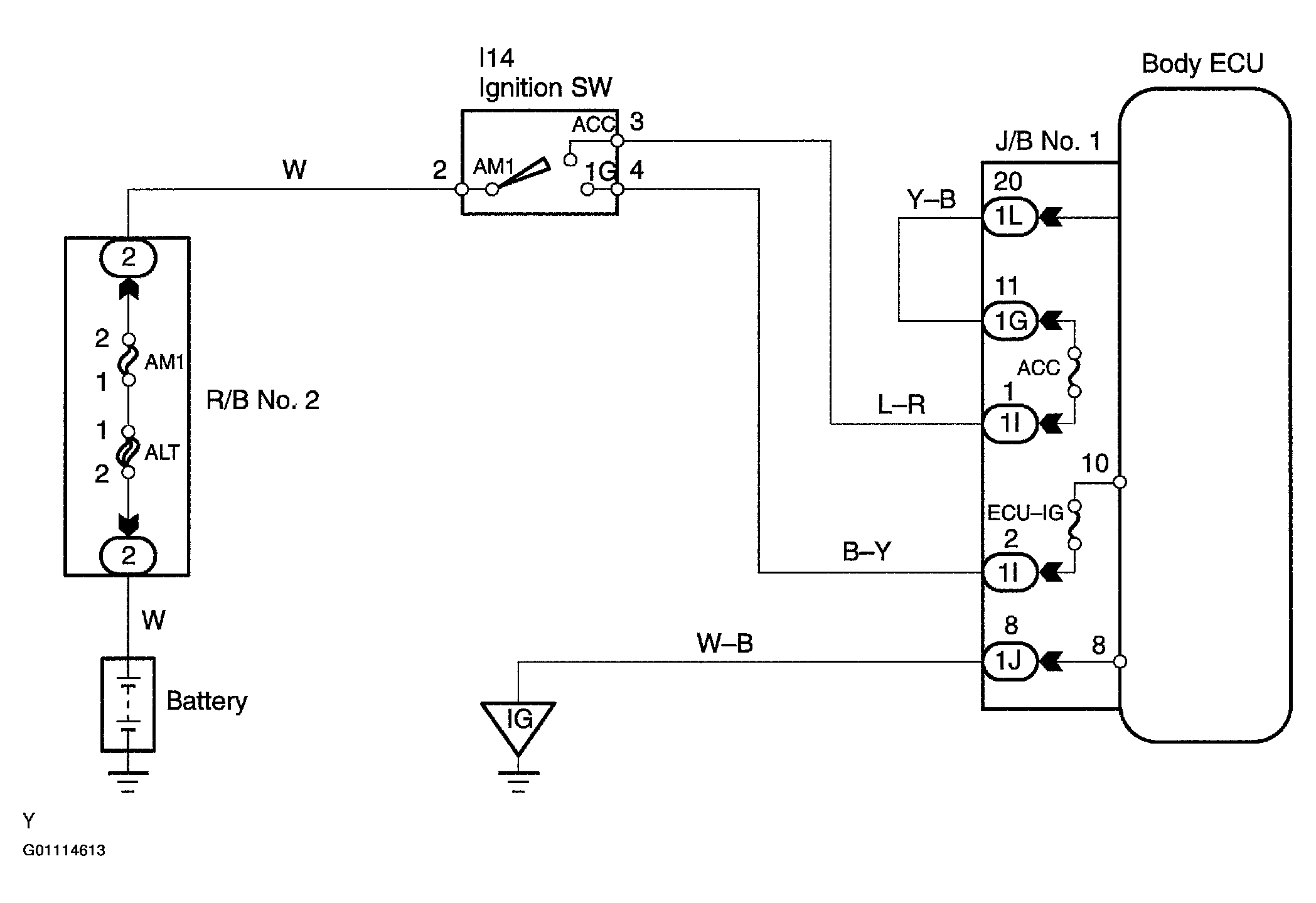

Fig 1: Wiring Diagram

G01114613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
