Key Lock And Unlock Switch Circuit: Wiring Diagram

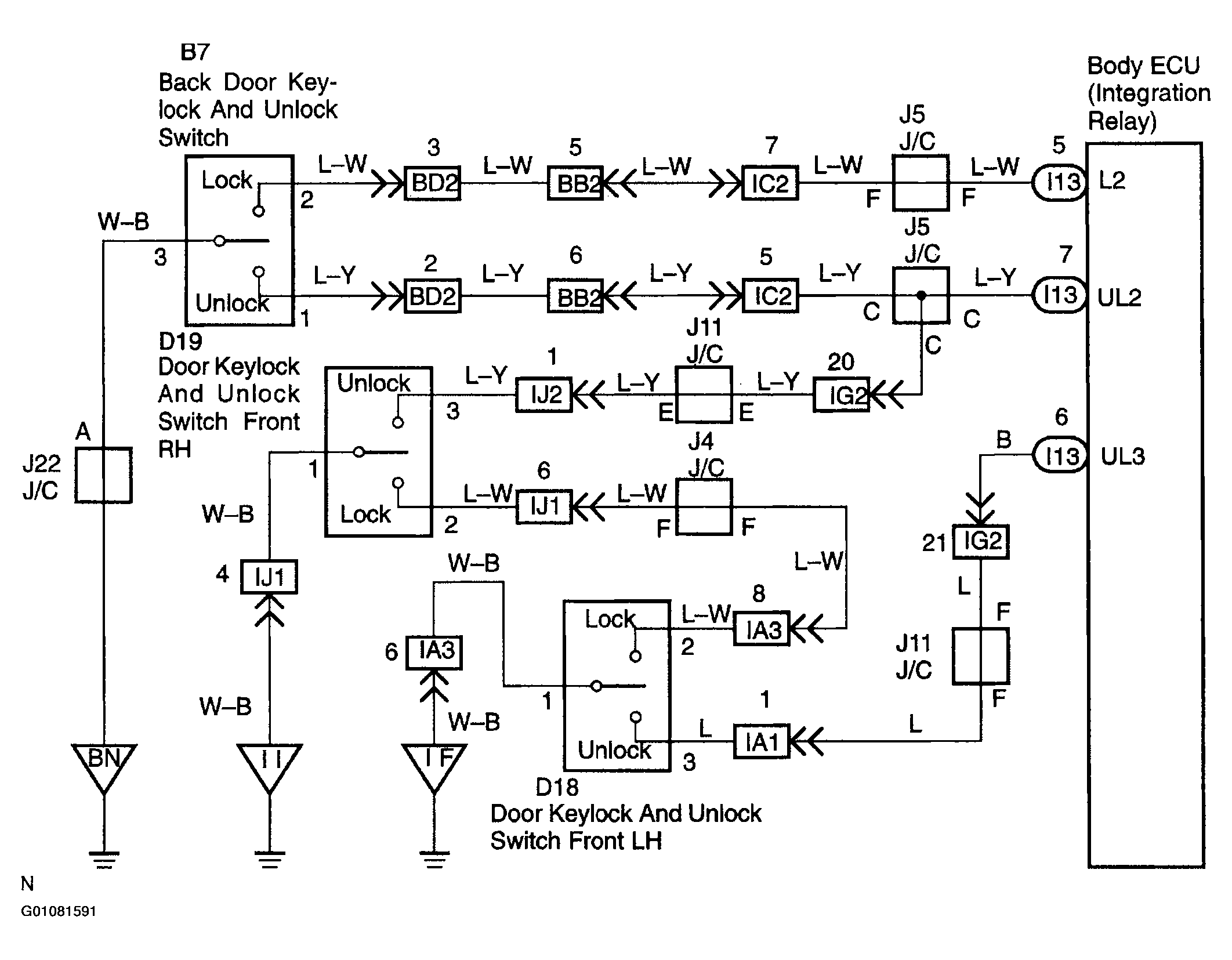

Fig 1: Key Lock And Unlock Switch Circuit

G01081591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
