How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure on the following pages.

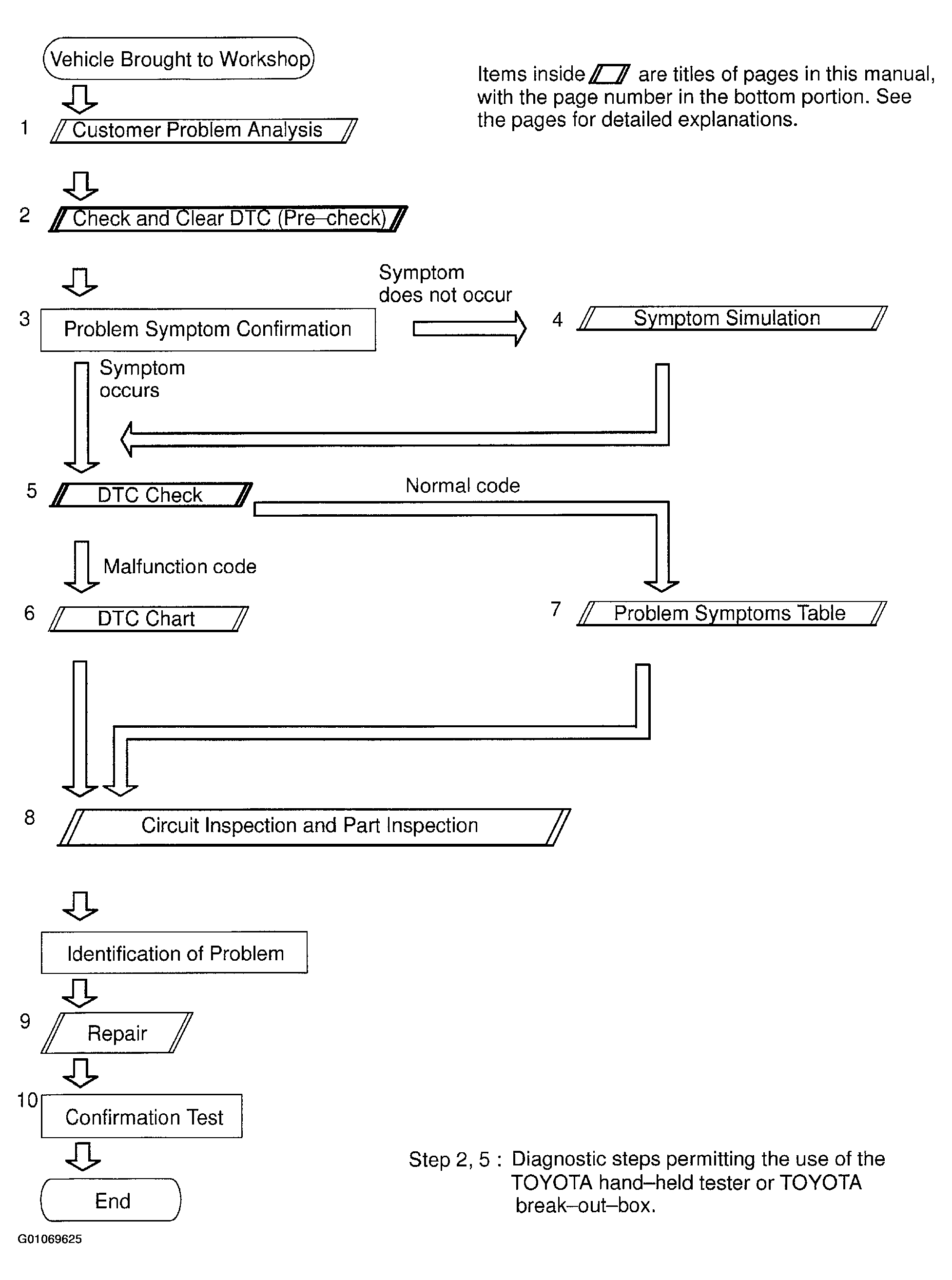

Fig 1: Troubleshooting Flow Chart

G01069625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
