Terminals Of Ecu

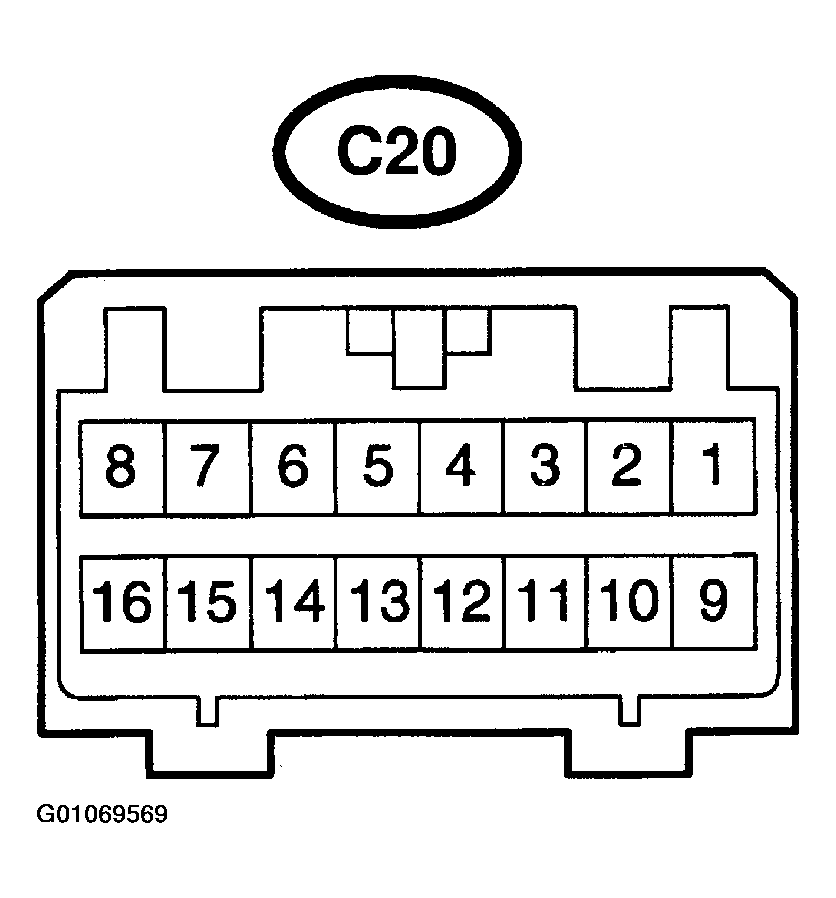

Fig 1: Identifying ECU Connector Terminals
G01069569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

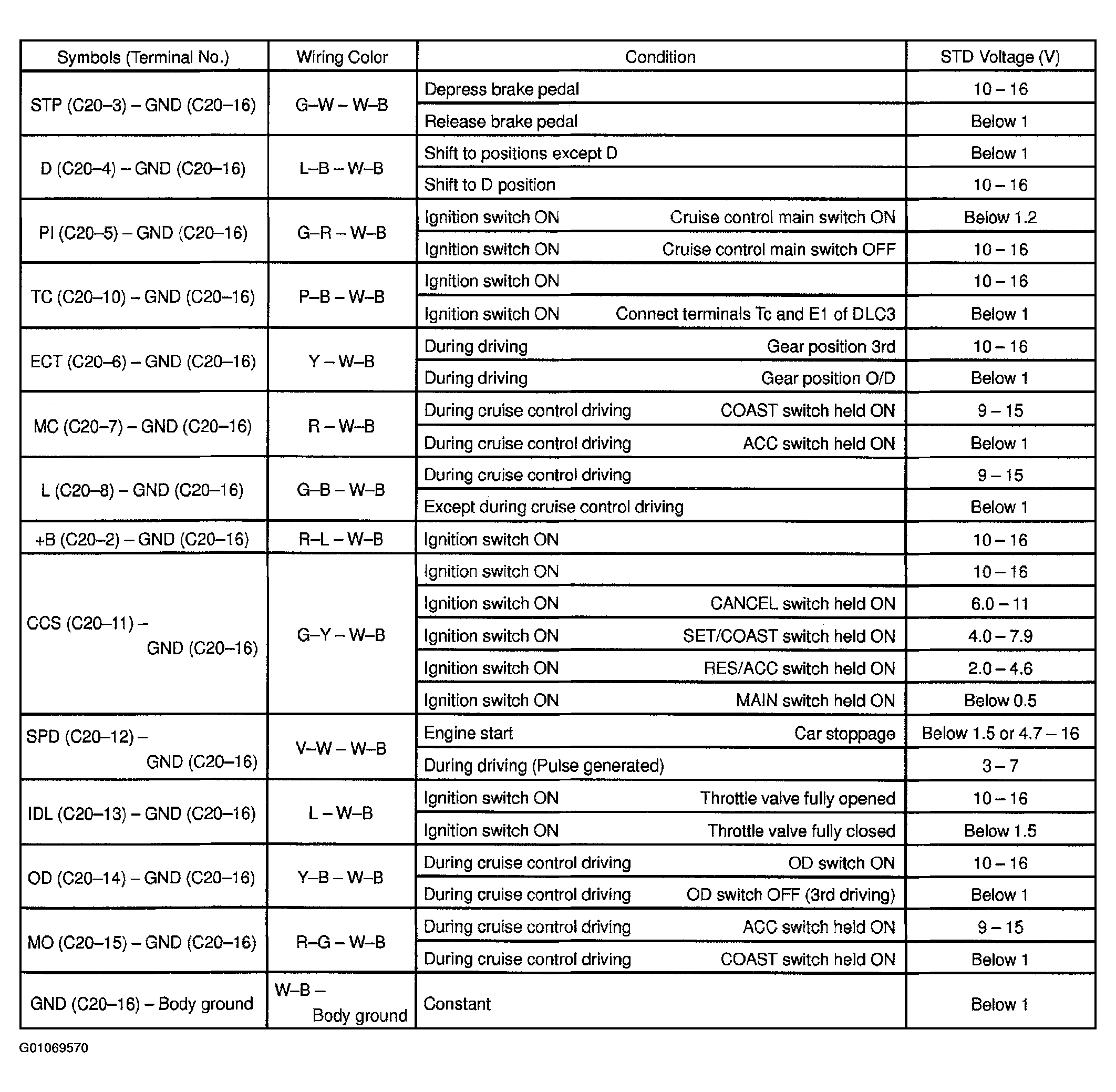

Fig 2: Identifying ECU Connector Terminal Specifications
G01069570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
