Control Switch Circuit (Cruise Control Switch): Wiring Diagram

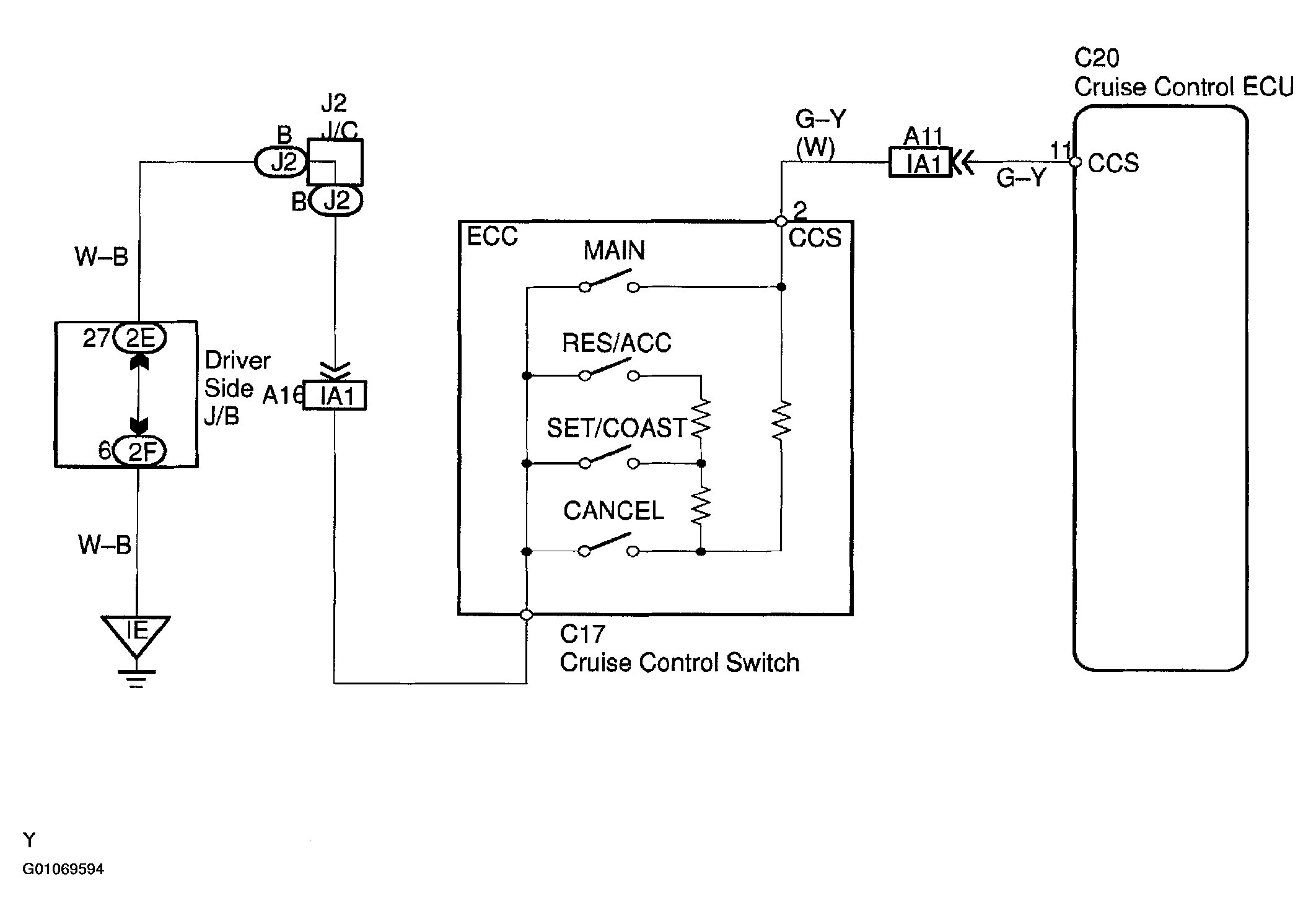

Fig 1: Displaying Cruise Control Switch Circuit
G01069594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For complete cruise control system wiring diagram, see CRUISE CONTROL .
