Key Unlock Warning Switch Circuit: Wiring Diagram

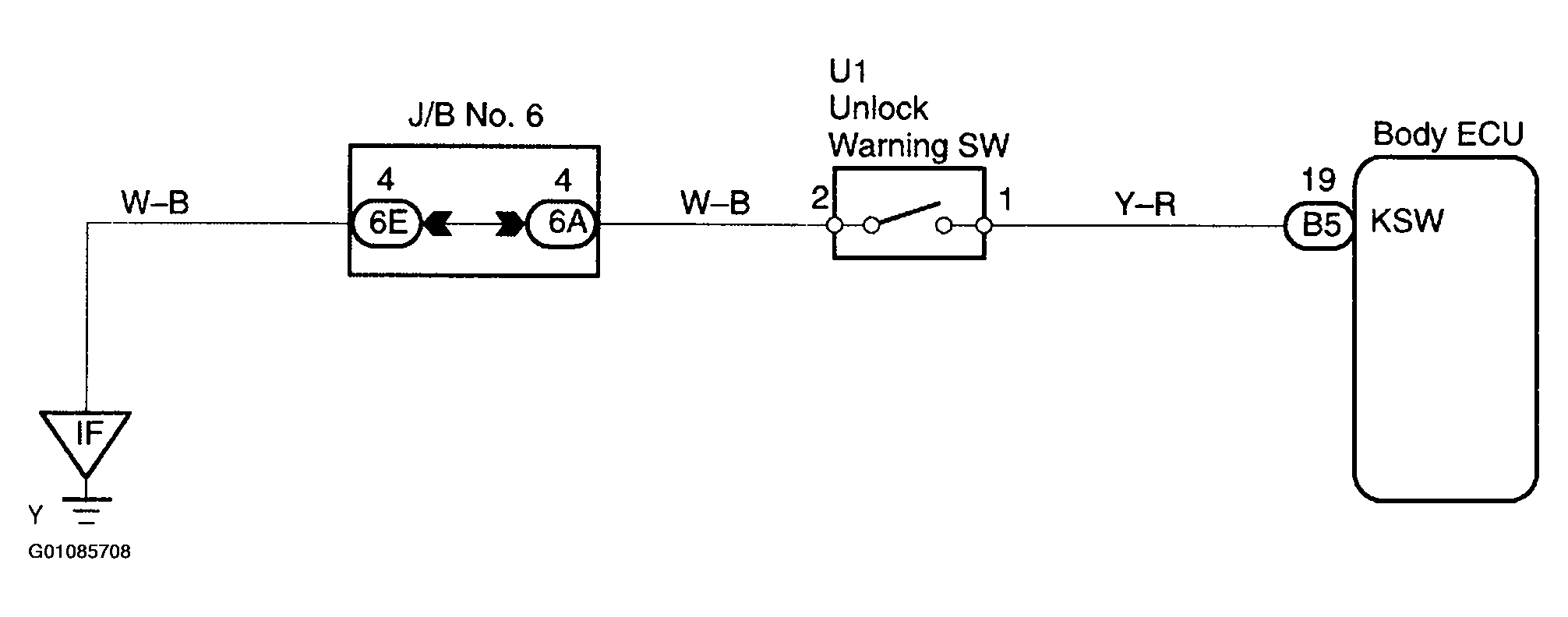

Fig 1: Displaying Key Unlock Warning Switch Circuit

G01085708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
