Ignition Switch Power Source Circuit: Wiring Diagram

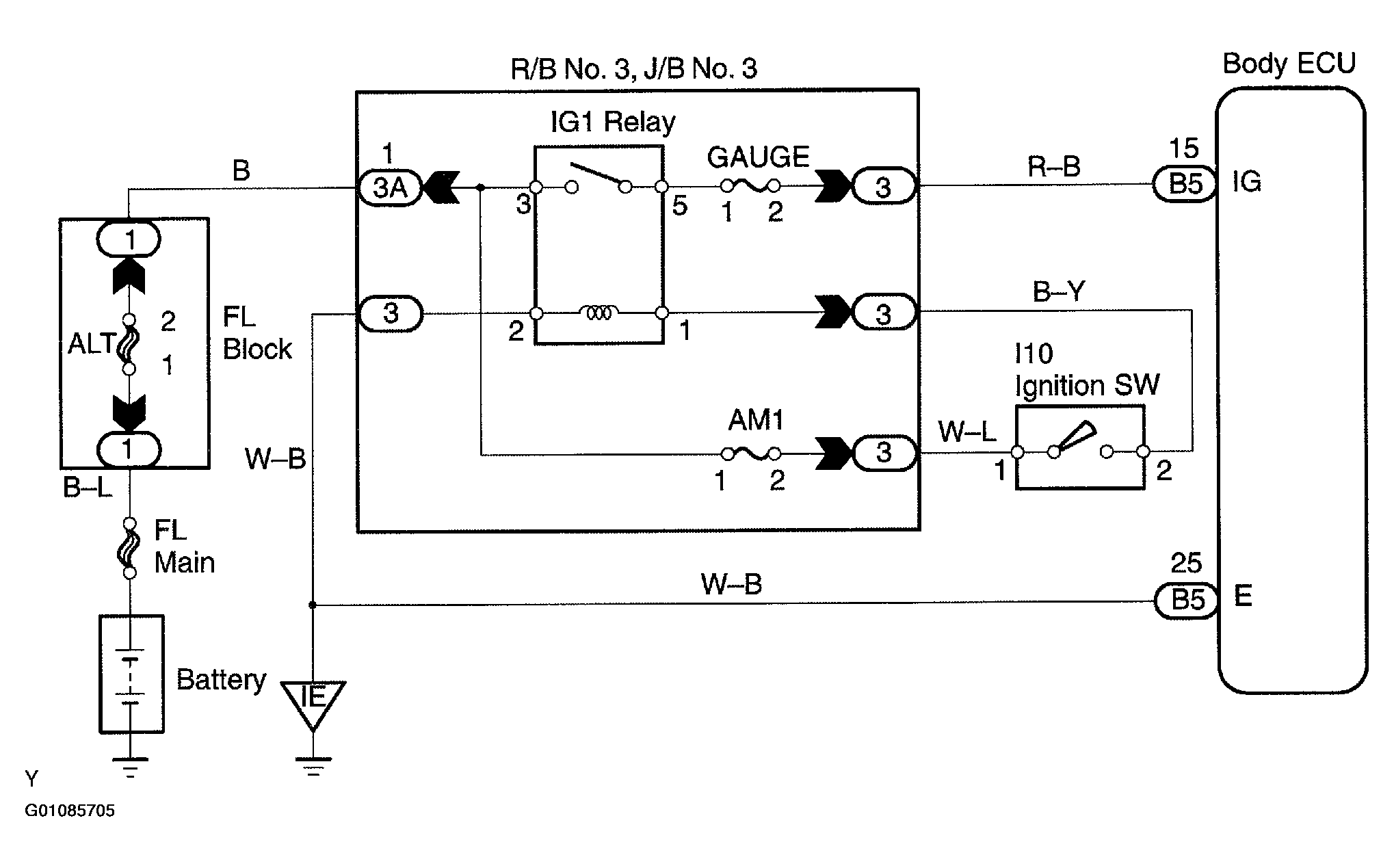

Fig 1: Displaying Ignition Switch Power Source Circuit

G01085705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
