Electronically Controlled Transmission Communication Circuit

For electronically controlled transmission communication circuit testing procedures, see Fig 1-Fig 3 .

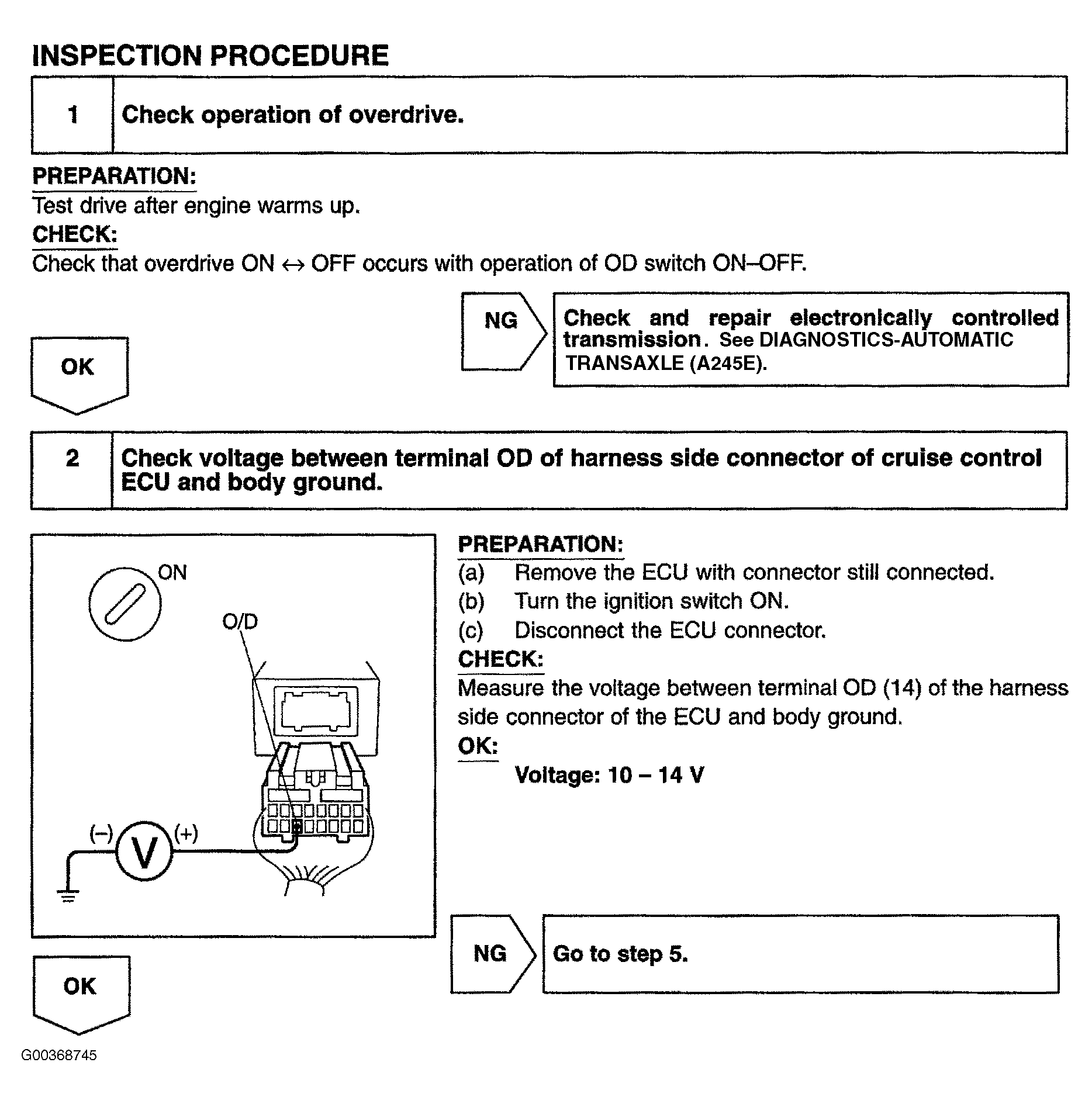

Fig 1: Testing Electronically Controlled Transmission Communication Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

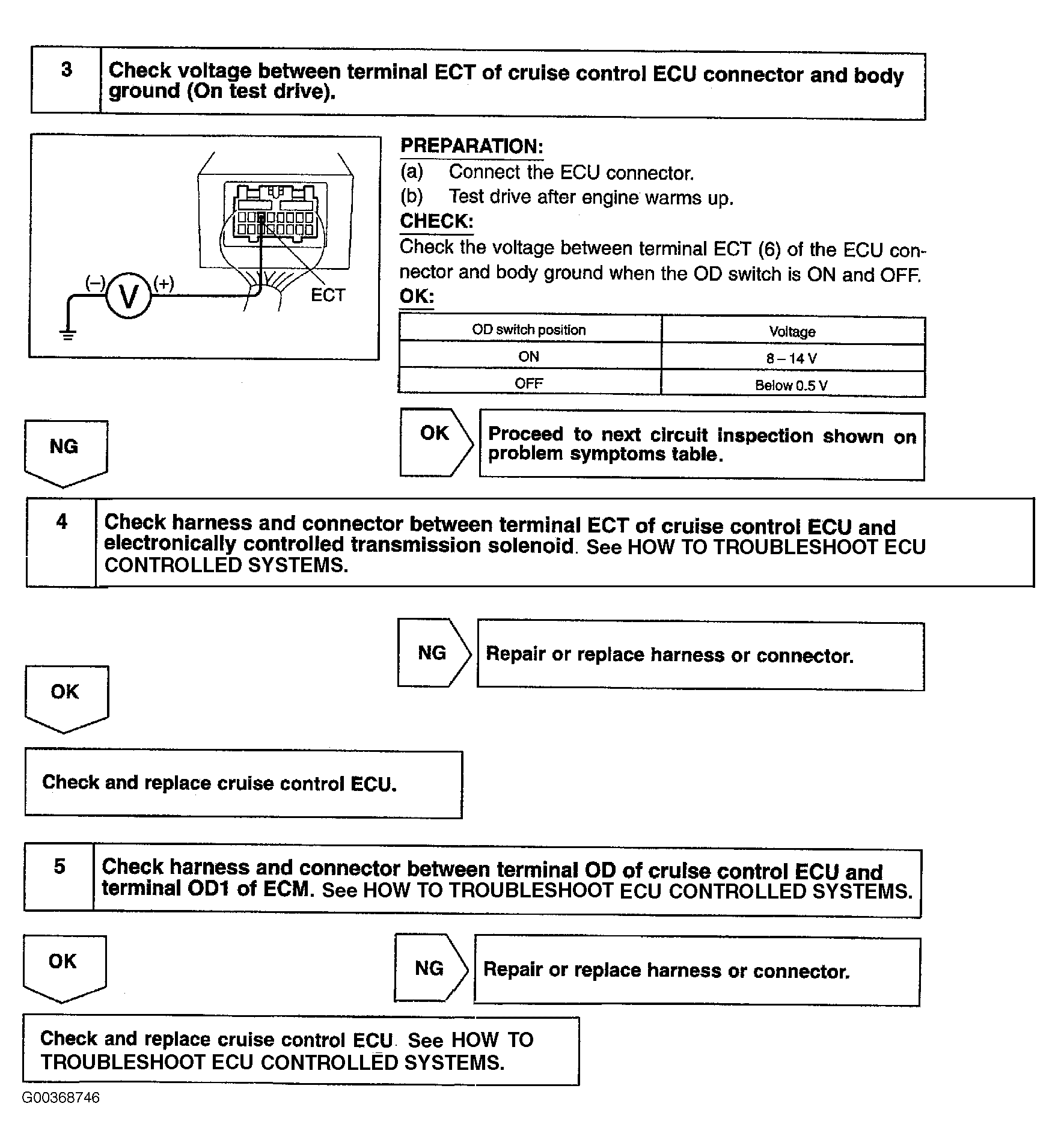

Fig 2: Testing Electronically Controlled Transmission Communication Circuit (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

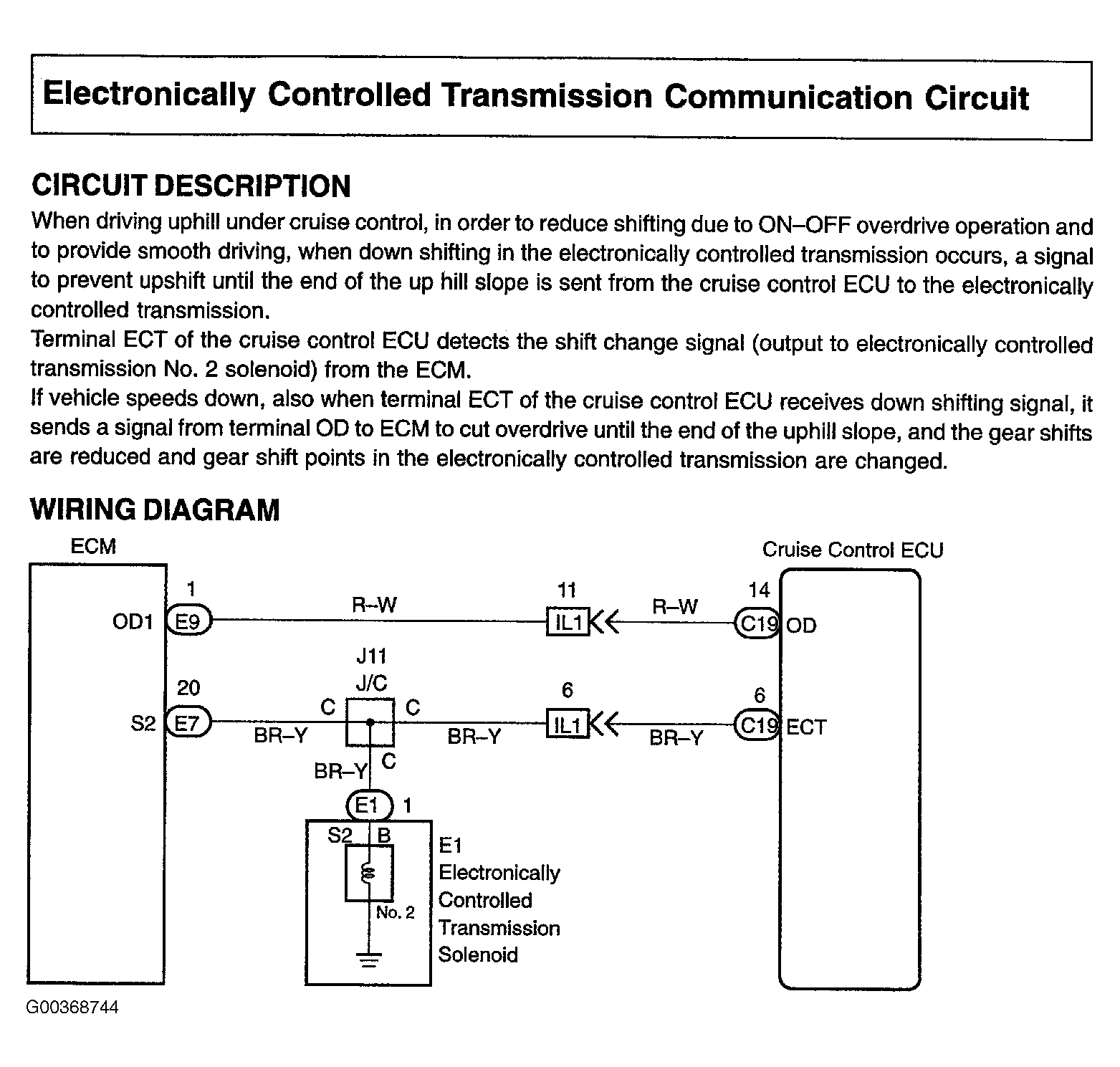

Fig 3: Testing Electronically Controlled Transmission Communication Circuit (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
