DTC 32: Control Switch Circuit (Cruise Control Switch)

For DTC 32 diagnosis, see Fig 1-Fig 3 .

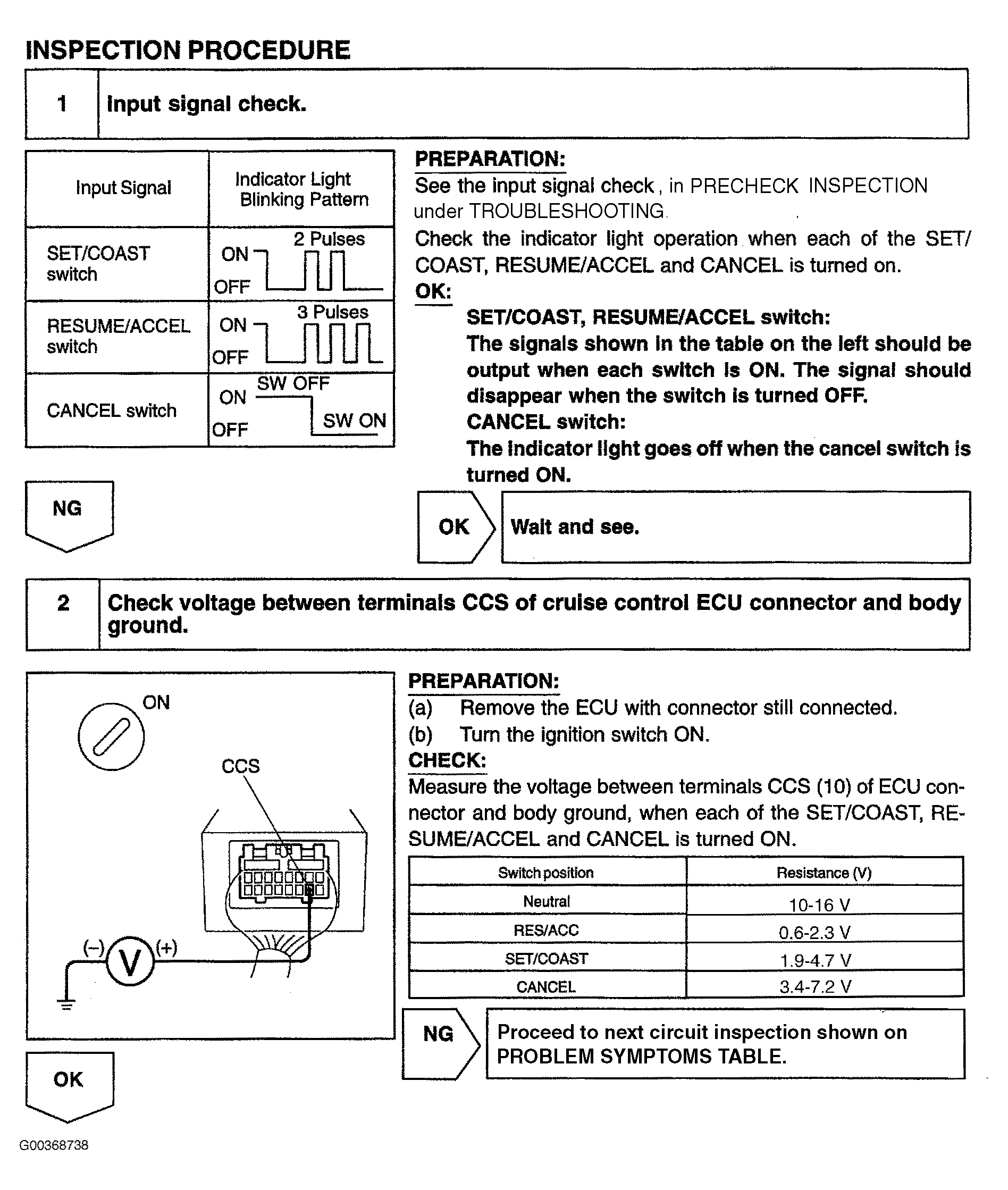

Fig 1: Diagnosing DTC 32 (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

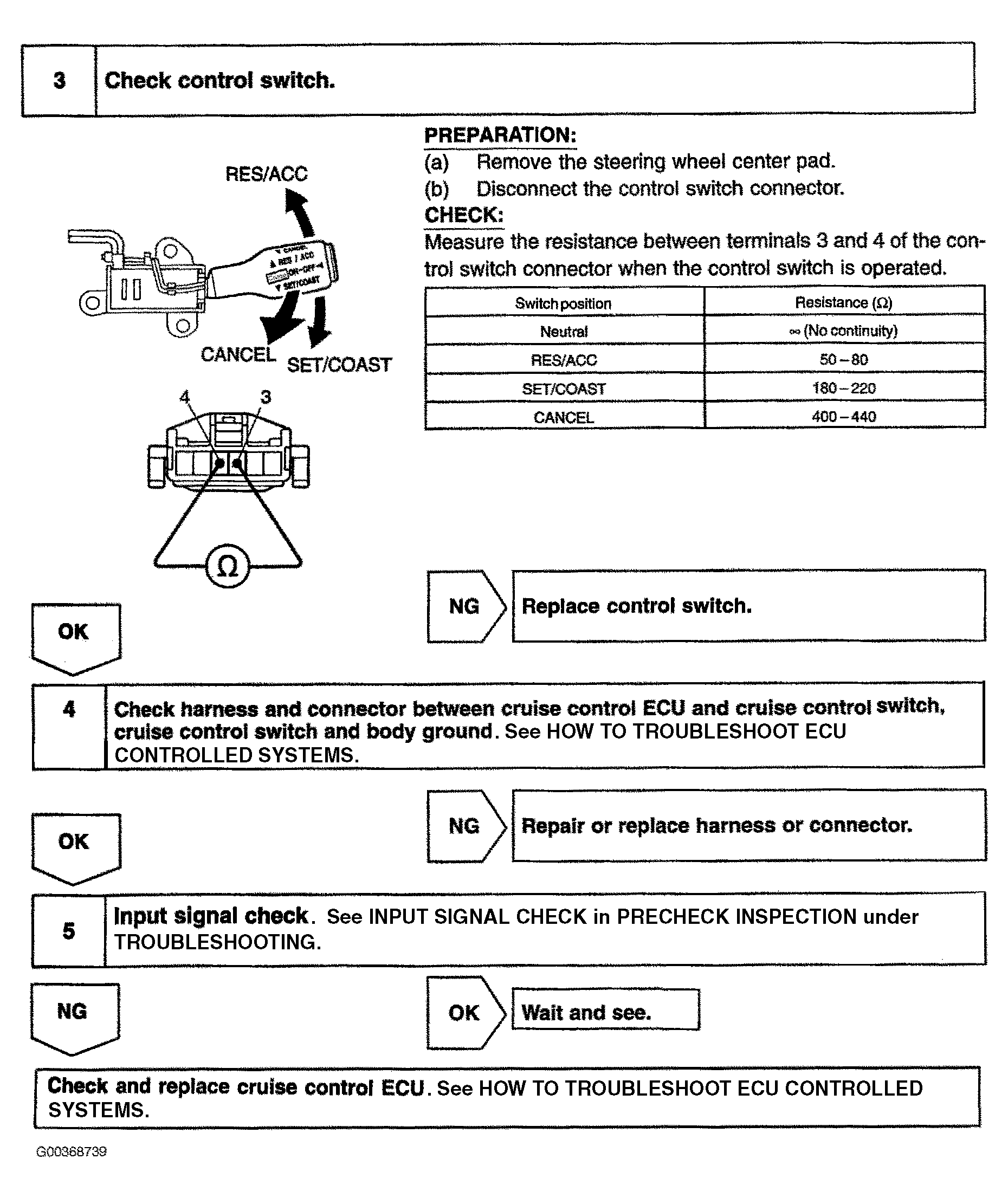

Fig 2: Diagnosing DTC 32 (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

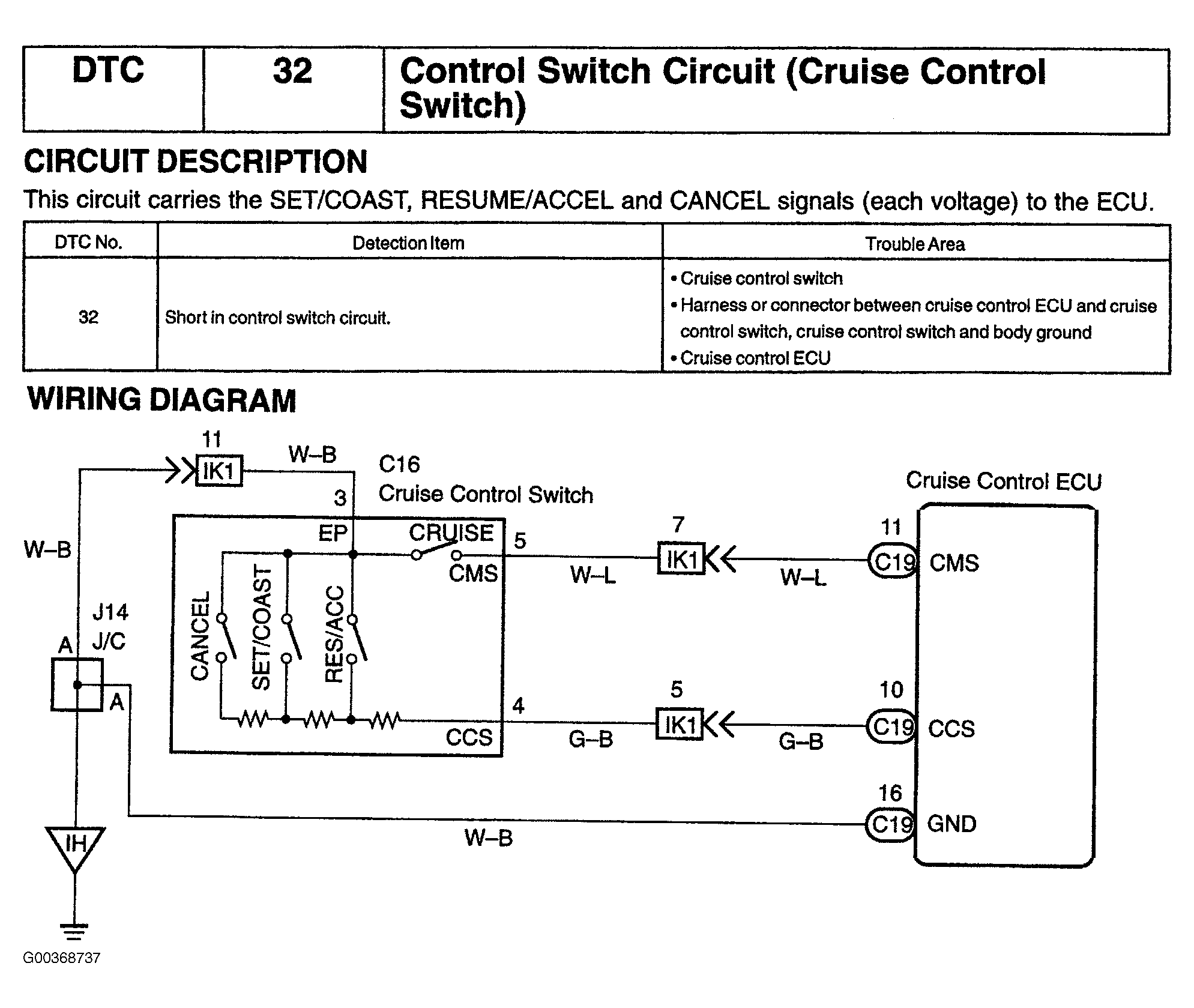

Fig 3: Diagnosing DTC 32 (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
