Removal & Installation (Front Doors)

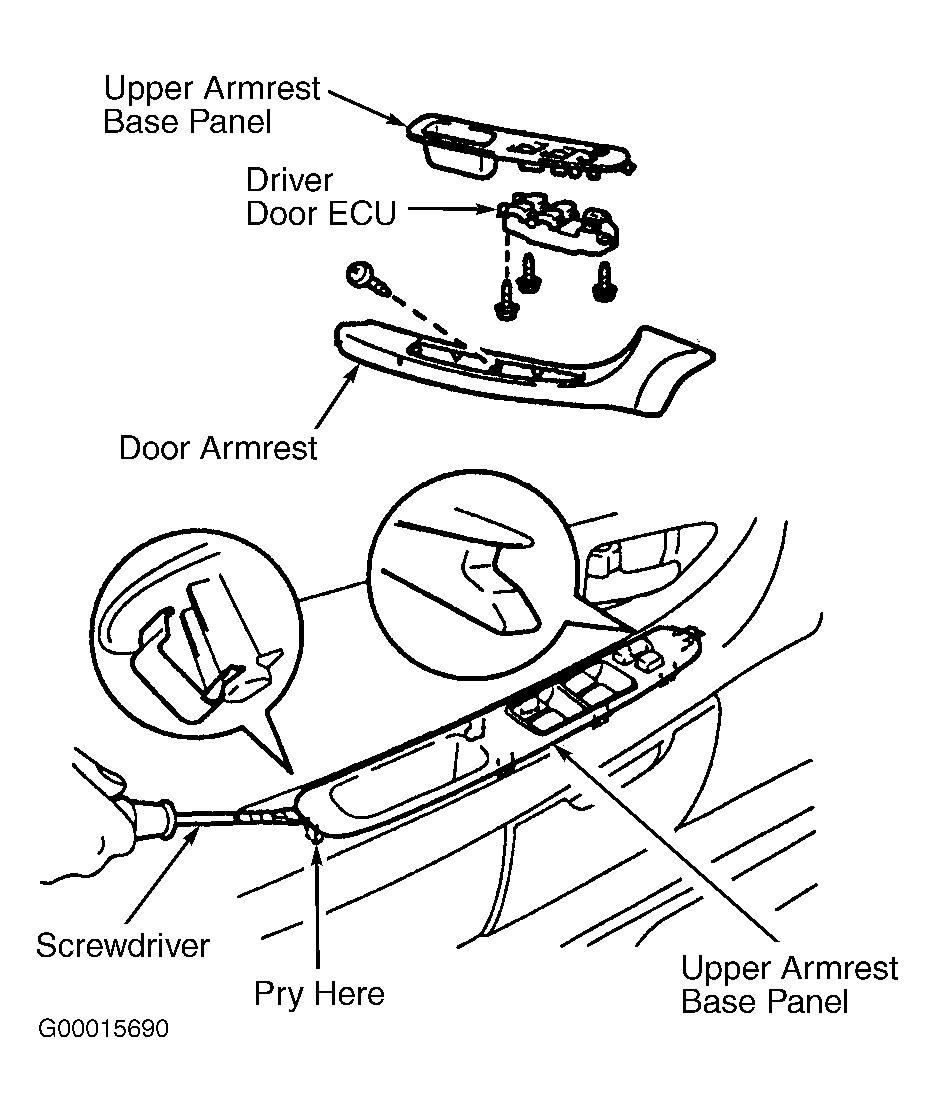

Remove armrest base panel with door ECU (power window switch) by prying up at rear of panel. Disconnect electrical harness connector. Remove 3 screws and separate door ECU from base panel. See Figure. To install, reverse removal procedure.
