Cooler Compressor Assembly (1MZ-FE): Components

WARNING: This page is about a different car, the 2002 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

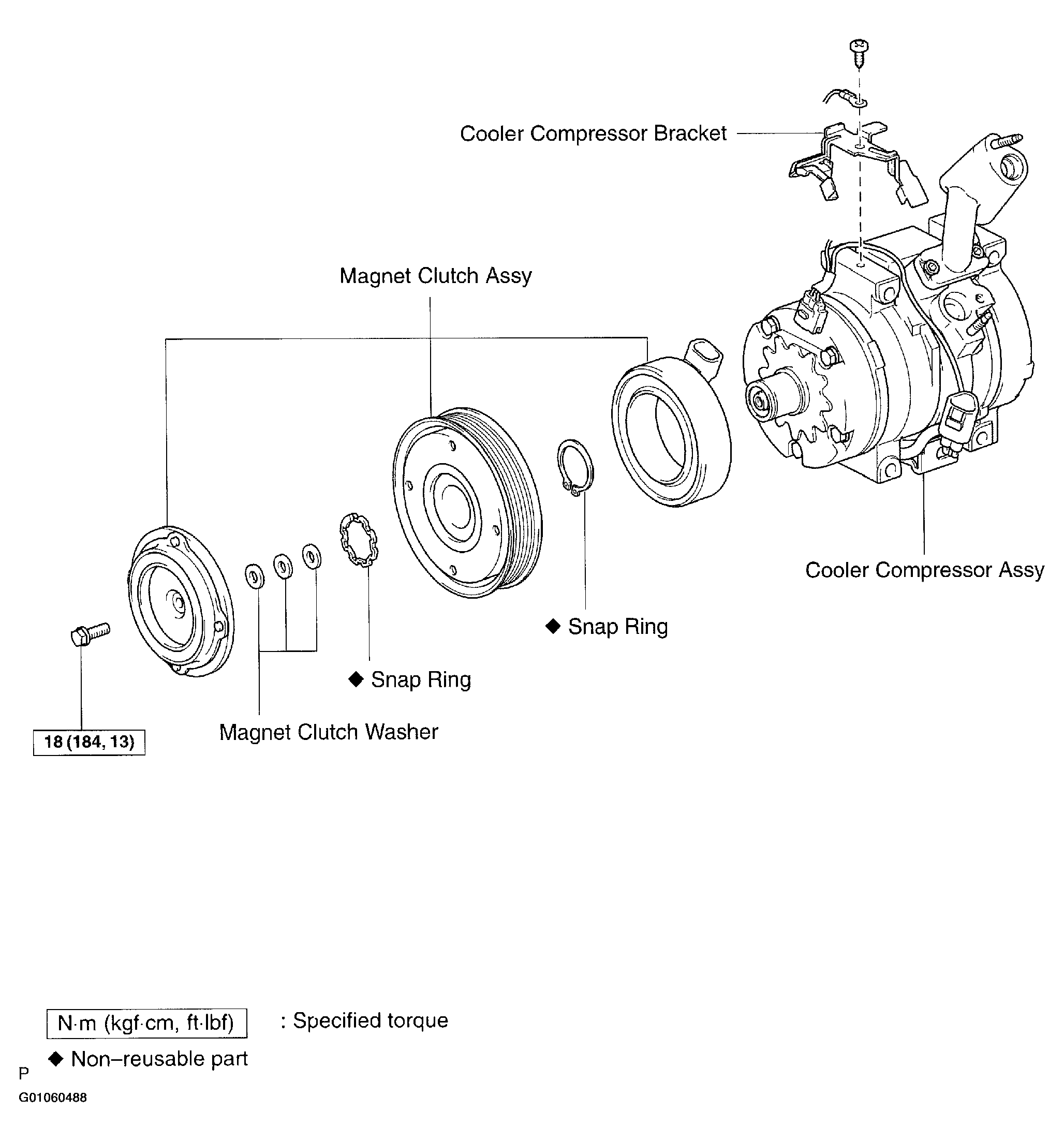

Fig 1: Cooler Compressor Assembly Components (V6)
G01060488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
