Testing Procedure

For wiring diagram, see Figure. For testing procedures, see Fig 1.

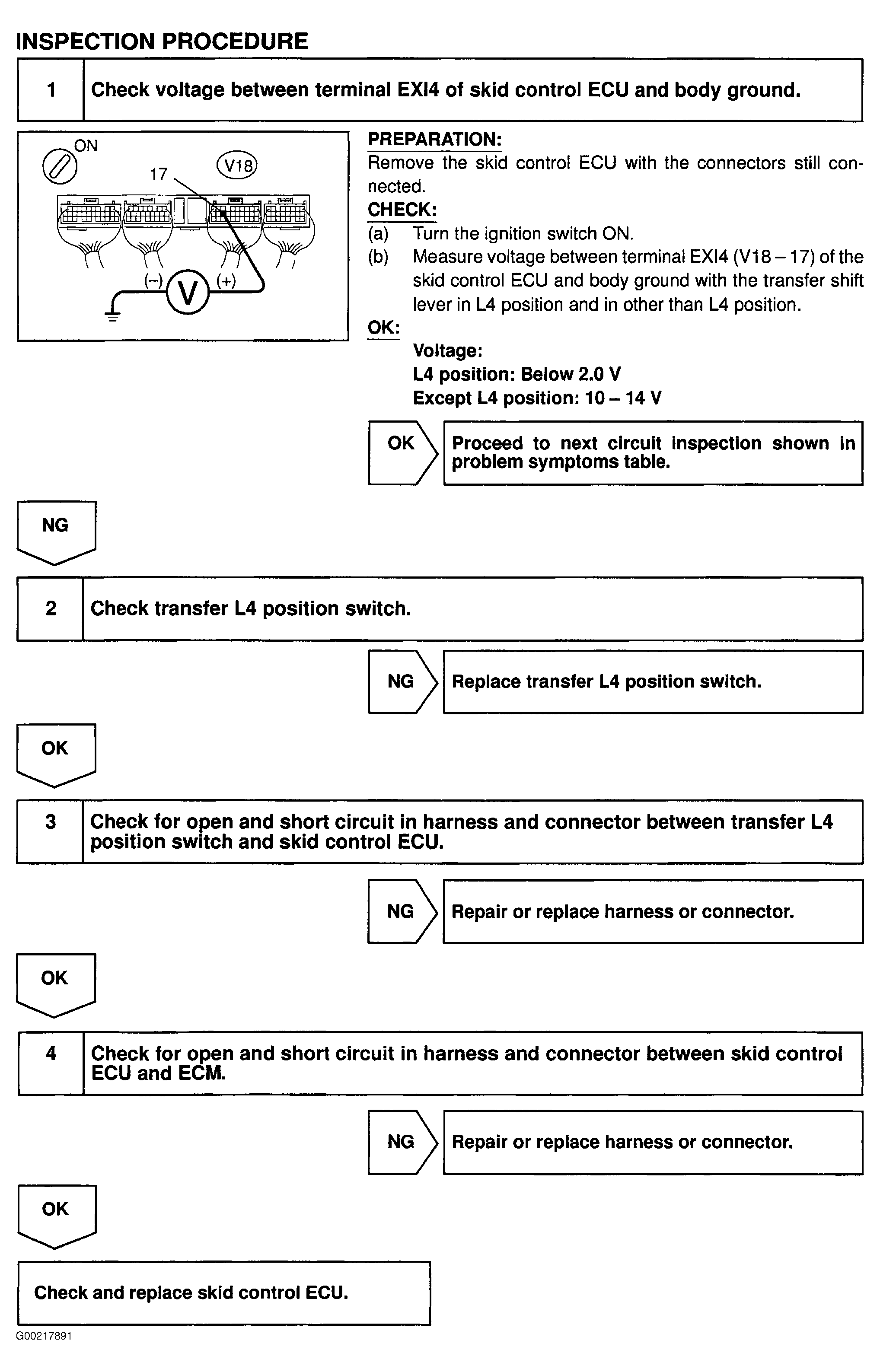

Fig 1: Testing Procedures Transfer L4 Position Switch

G00217891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
