Testing Procedure

For wiring diagram see Figure. For testing procedure see Fig 1.

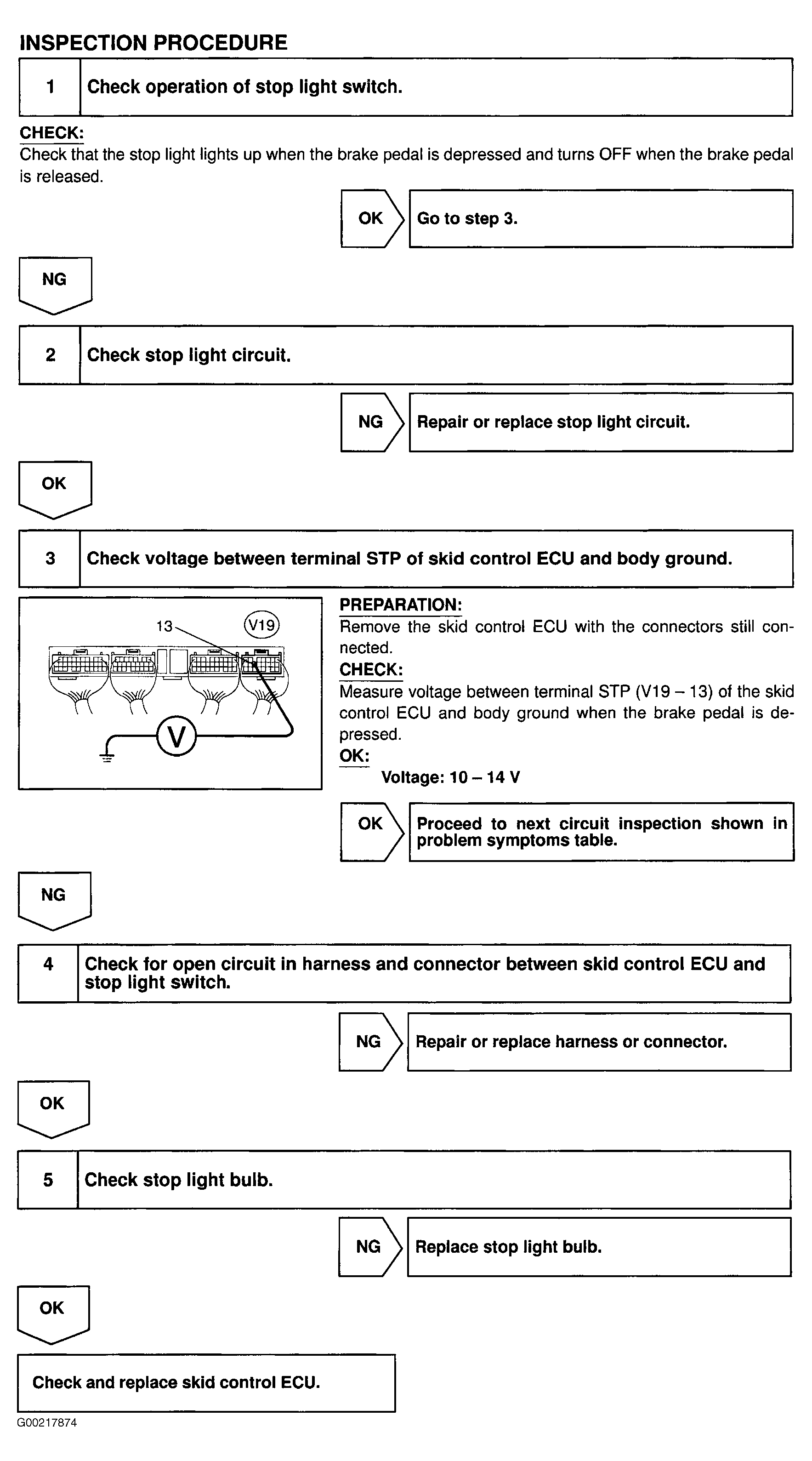

Fig 1: Testing Procedures Stop Light Switch

G00217874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
