Testing Procedure

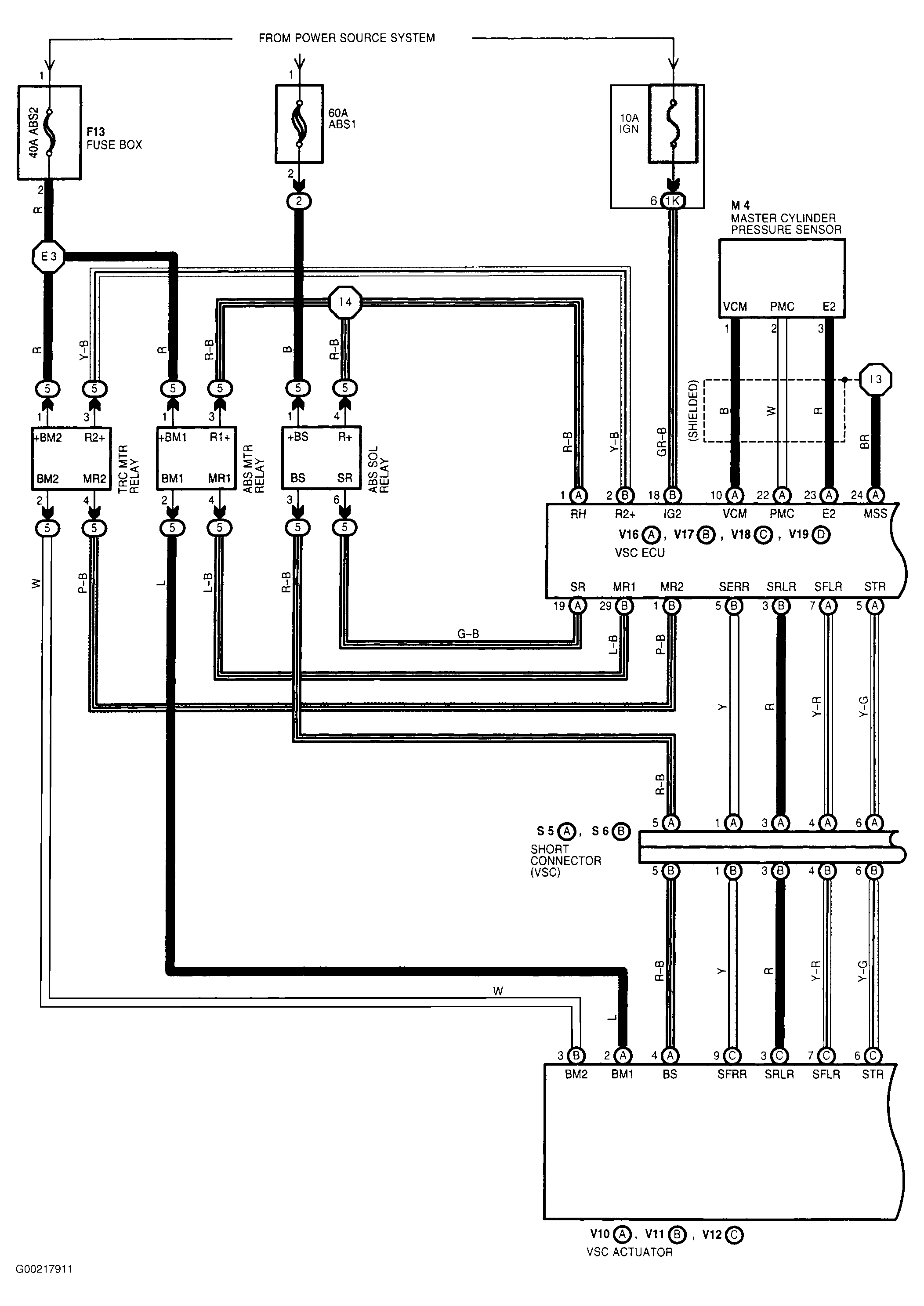

For wiring diagram see Figure & Figure . For testing procedure see Fig 1.

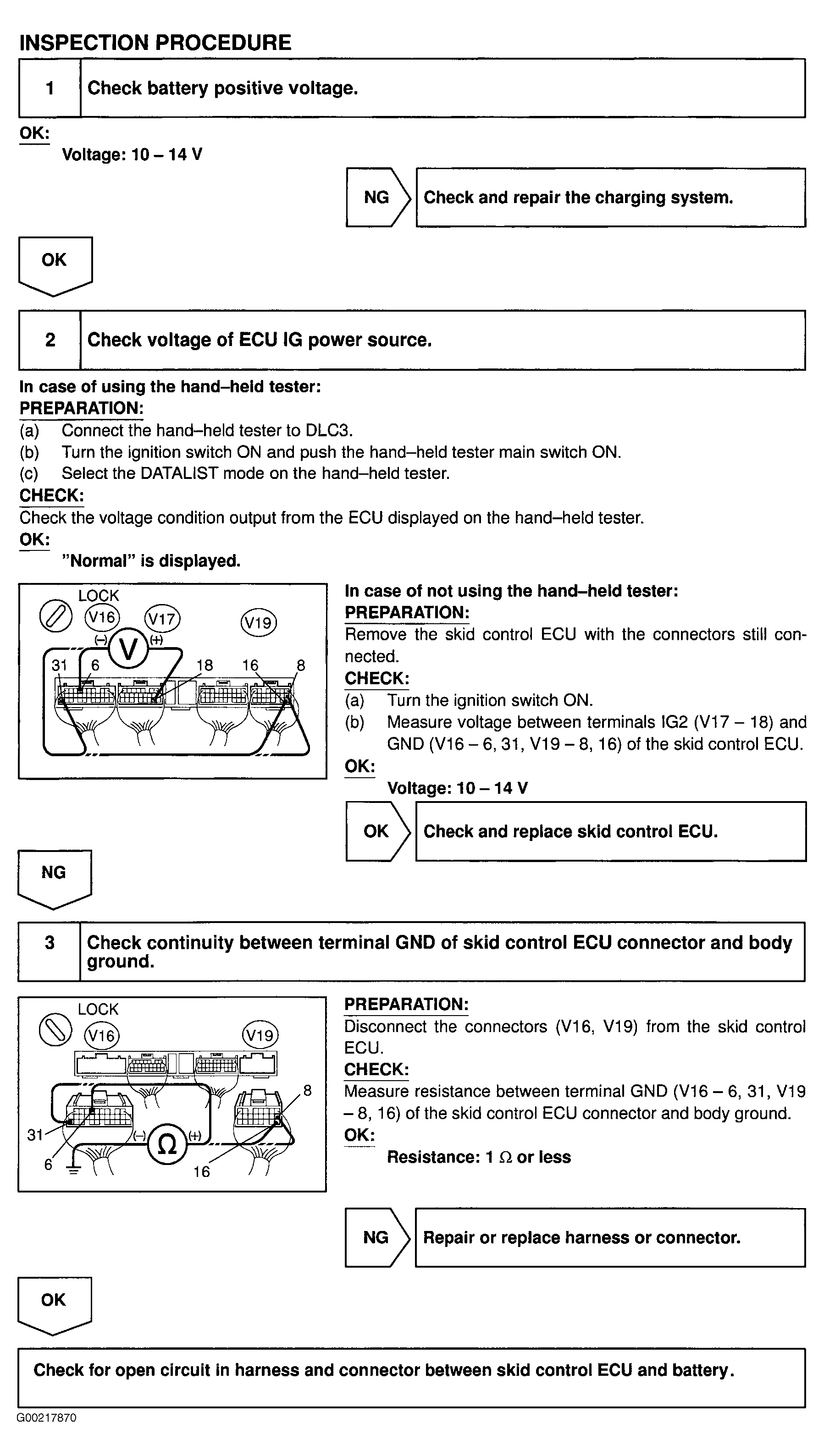

Fig 1: Testing Procedures IG2 Power Source

G00217870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
