Testing Procedure

For wiring diagram see Figure. For testing procedure see Fig 1-Fig 3 .

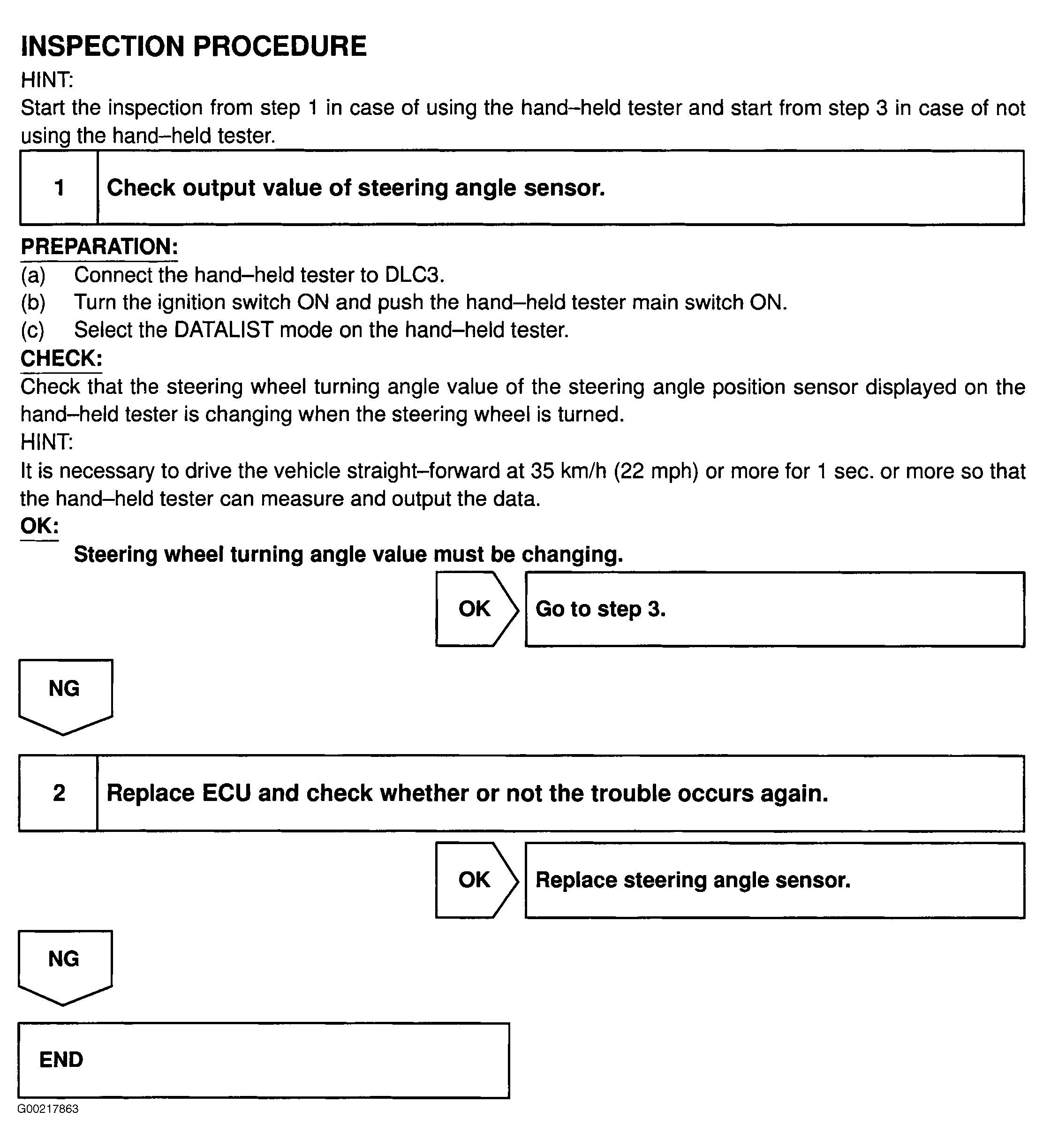

Fig 1: Testing Procedures Steering Angle Sensor (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Testing Procedure Steering Angle Sensor (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

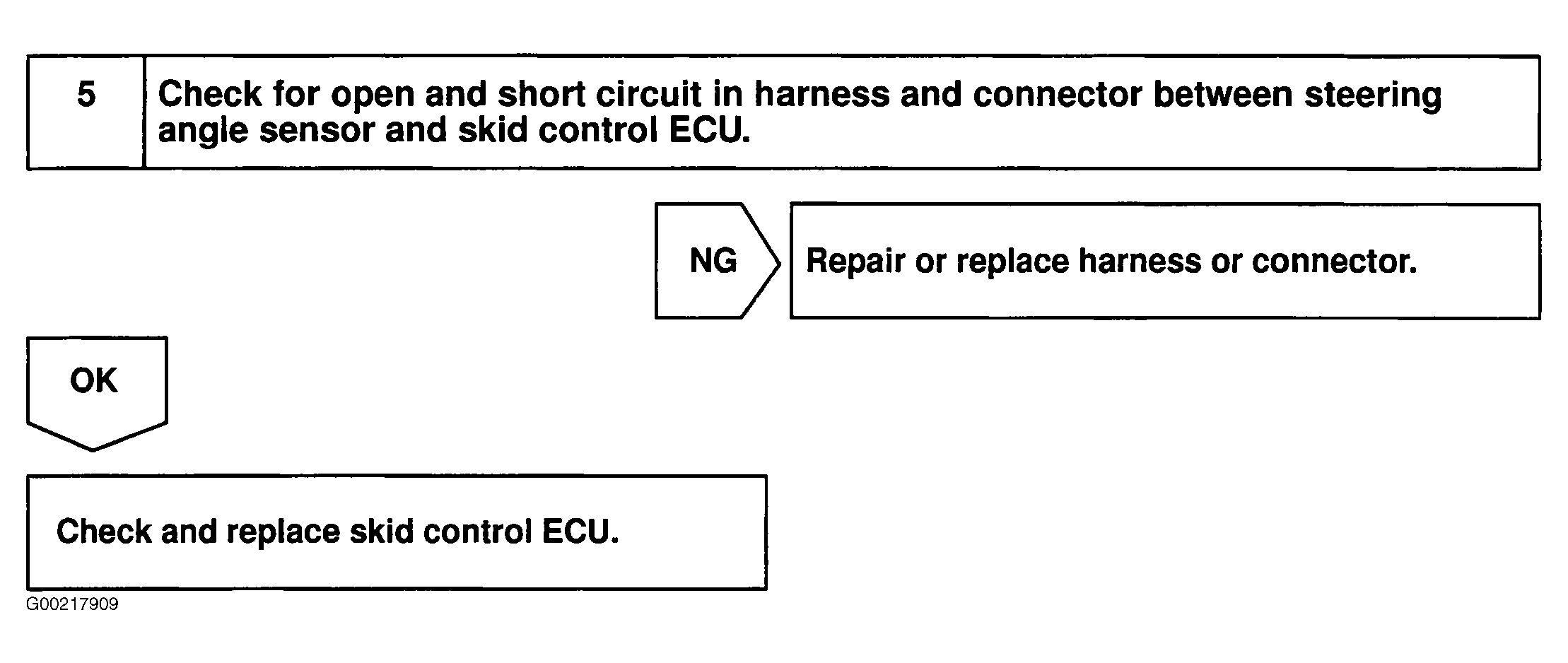

Fig 3: Testing Procedures Steering Angle Sensor (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
