Parts Location

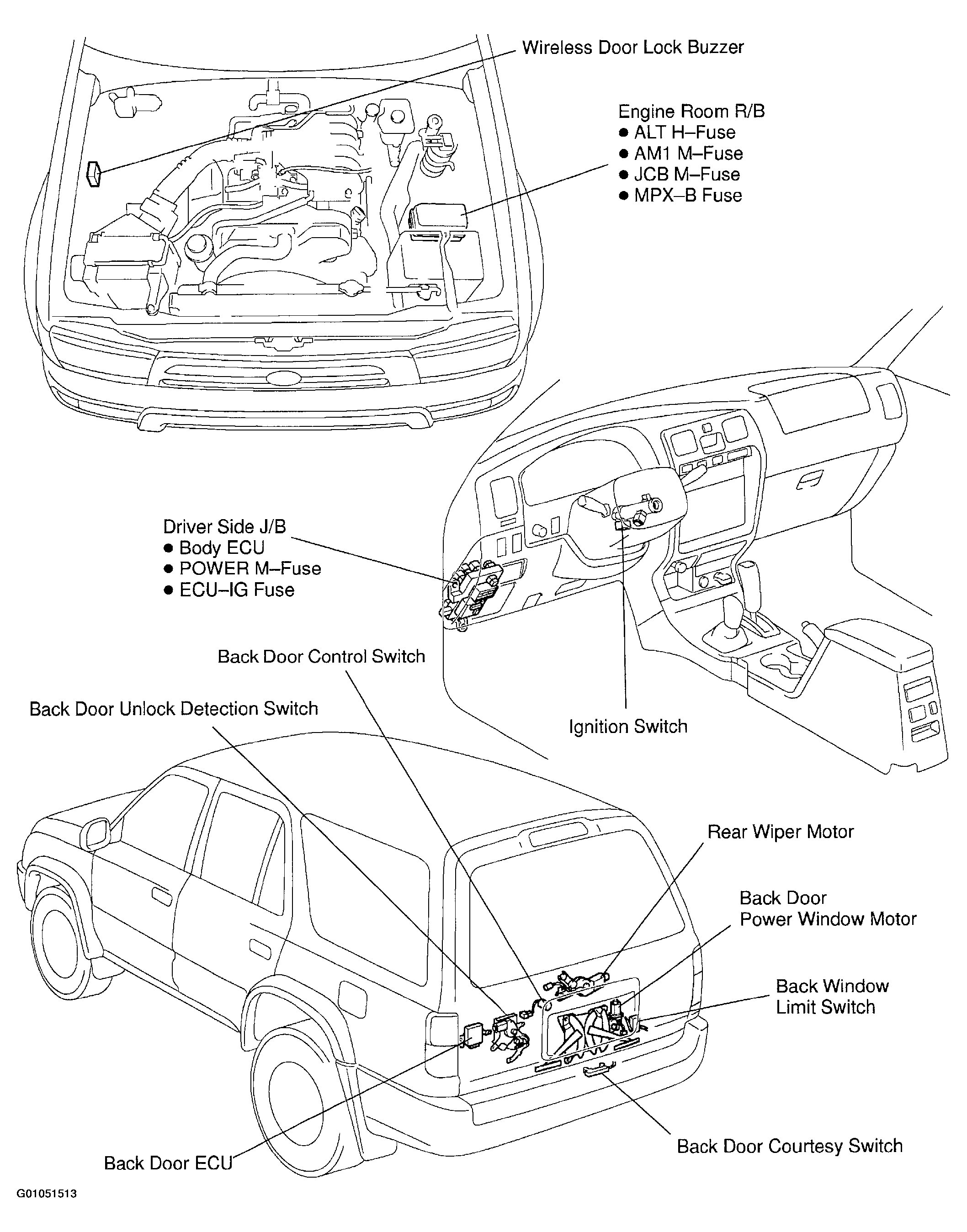

Fig 1: Locating Back Door Control System Components

G01051513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
