Rear Wiper Switch Circuit: Wiring Diagram

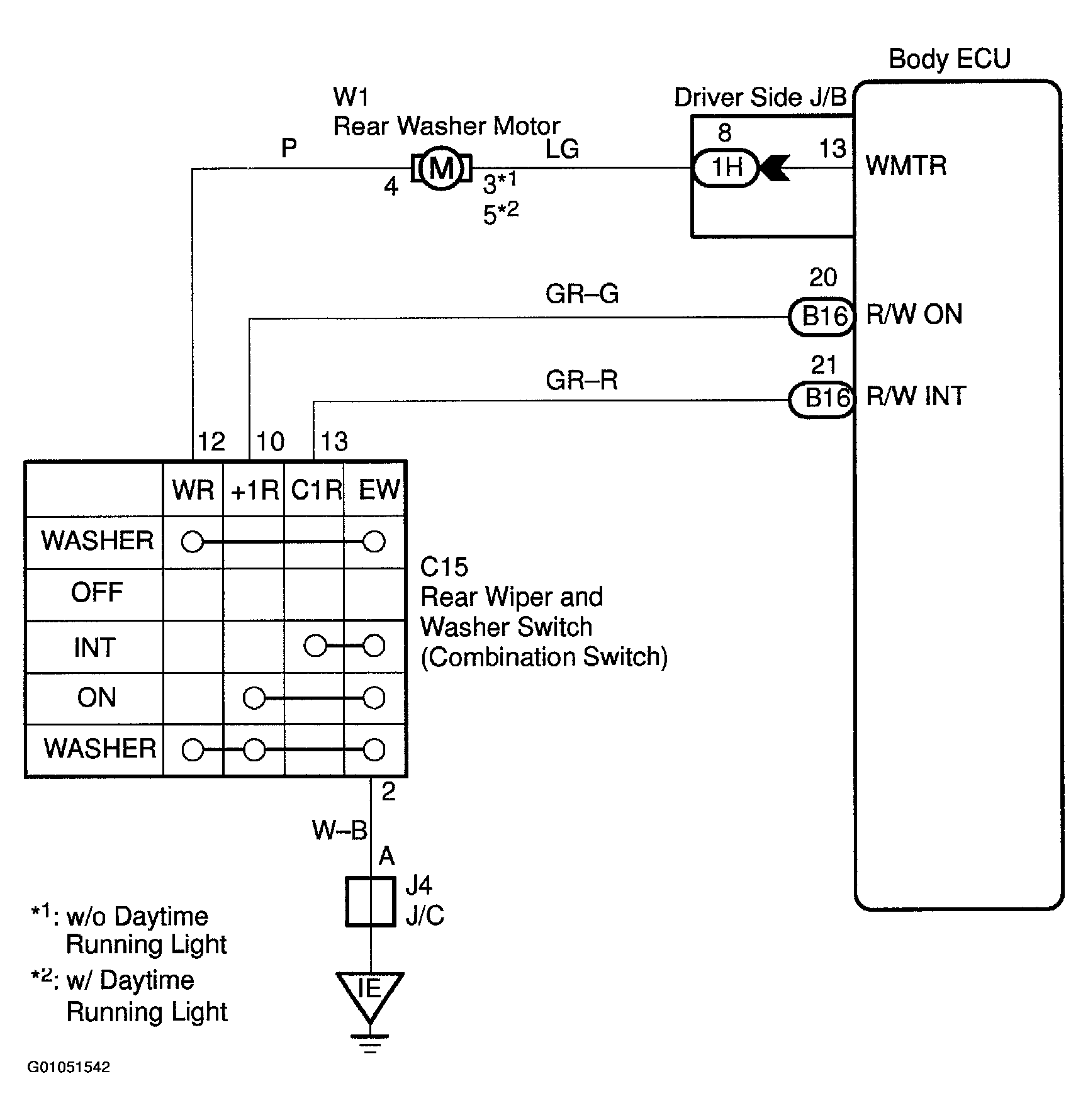

Fig 1: Rear Wiper Switch Circuit Wiring Diagram

G01051542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
