Hood Courtesy Switch Circuit: Wiring Diagram

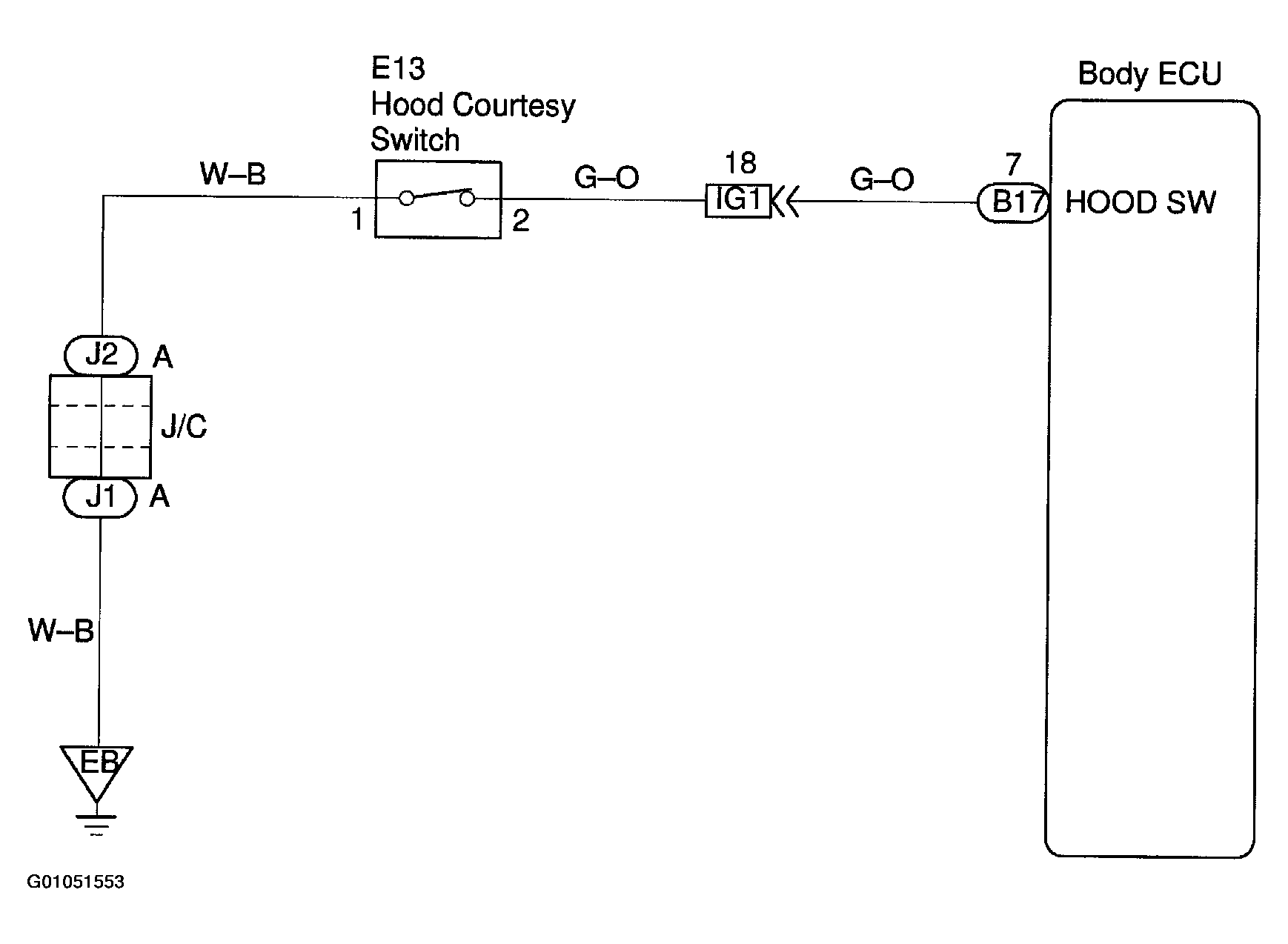

Fig 1: Hood Courtesy Switch Circuit Wiring Diagram

G01051553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
