Door Key Lock And Unlock Switch Circuit: Wiring Diagram

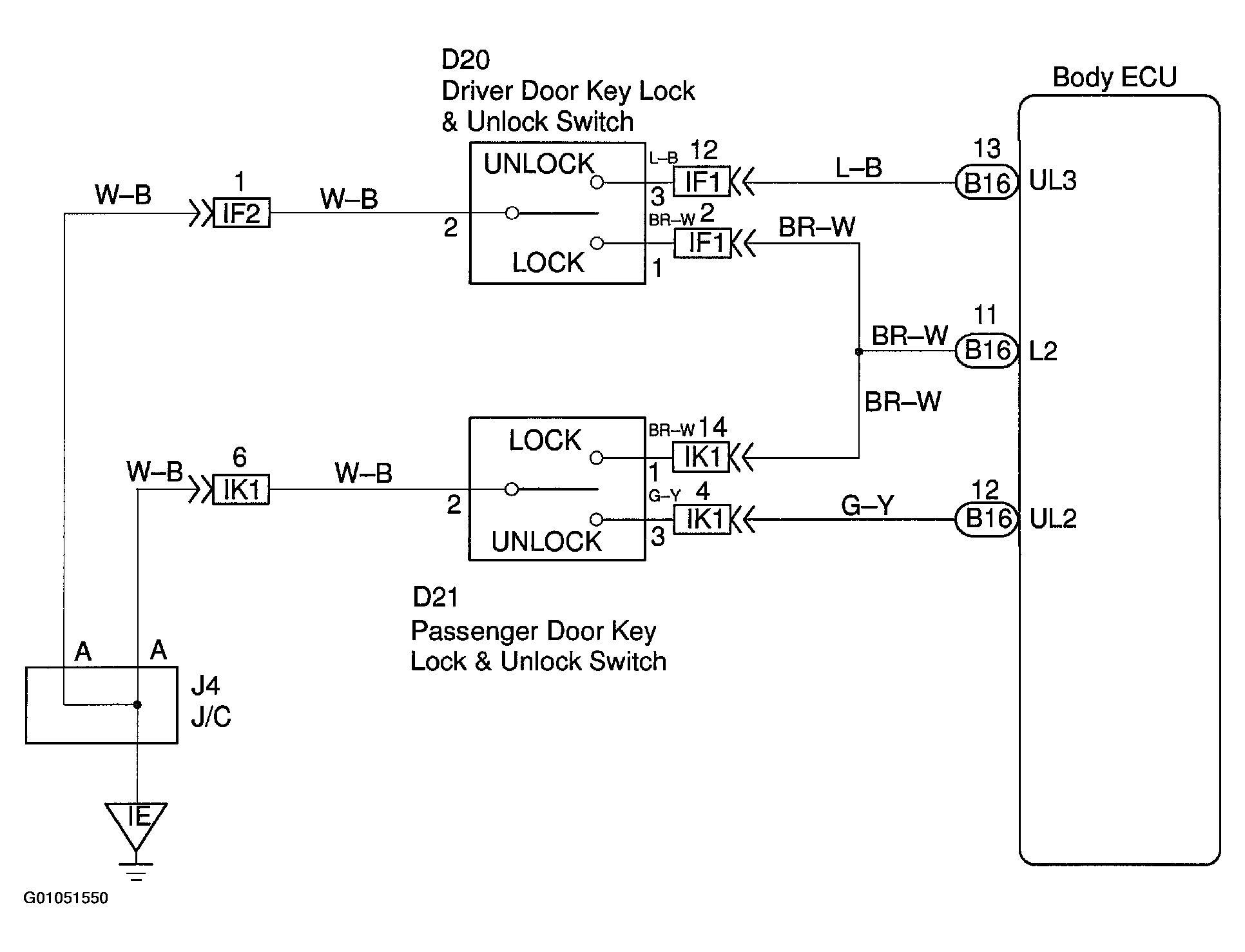

Fig 1: Door Key Lock & Unlock Switch Circuit Wiring Diagram

G01051550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
