Shift Fork Assembly

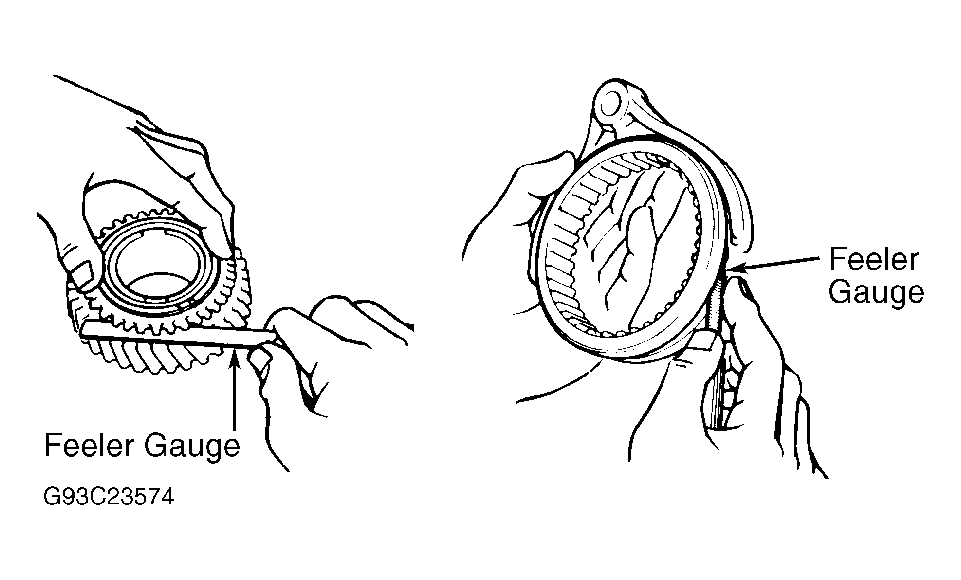

Measure clearance between hub sleeve and shift fork. Service limit is .039" (1.00 mm). If clearance exceeds specification, replace shift fork or hub sleeve. See Figure.
