Front Brake Speed Sensor: Components

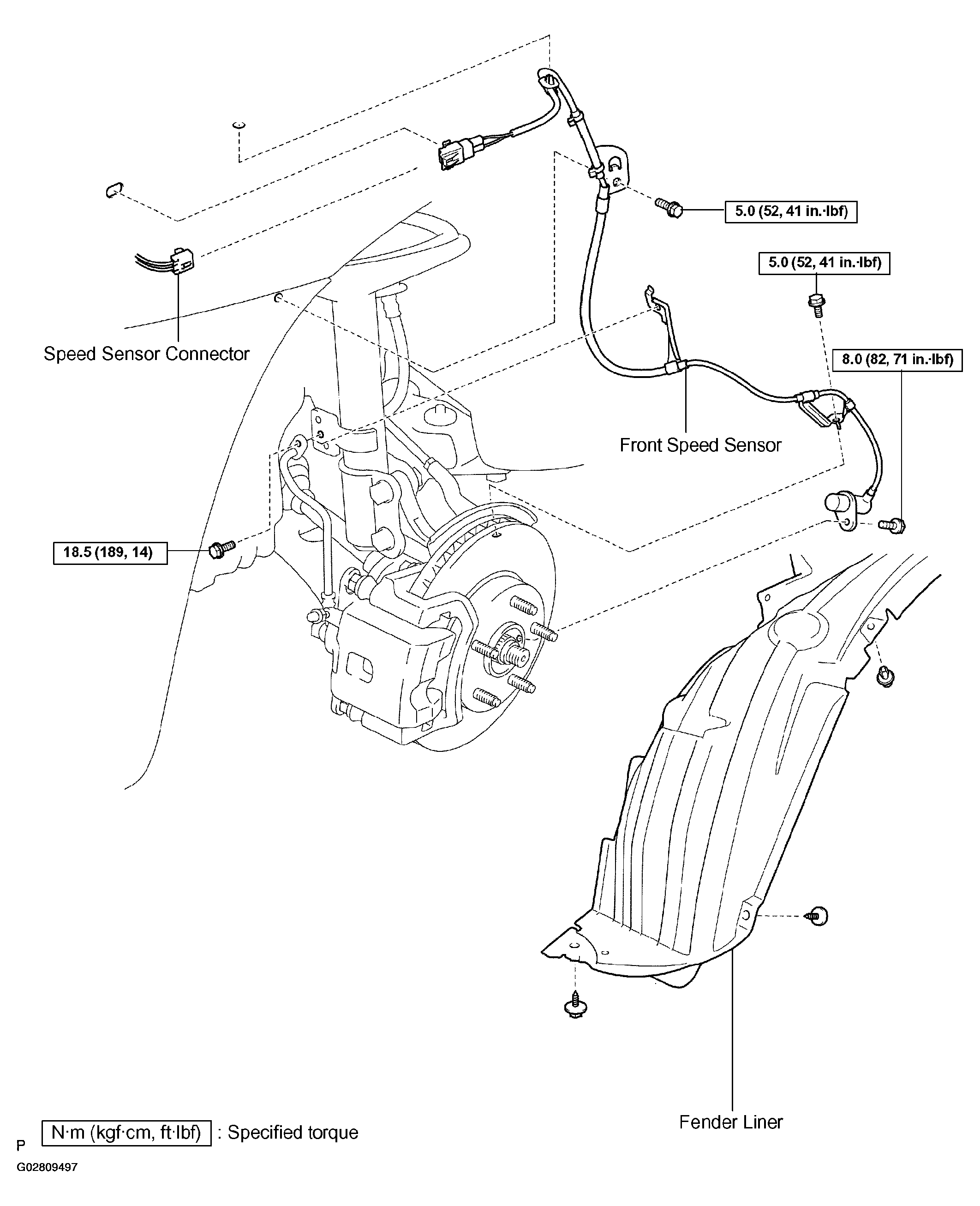

Fig 1: Identifying Components For Front Speed Sensor Removal

G02809497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
