Circuit Description

This is the power source for the ECU and hence for the CPU and ABS actuator.

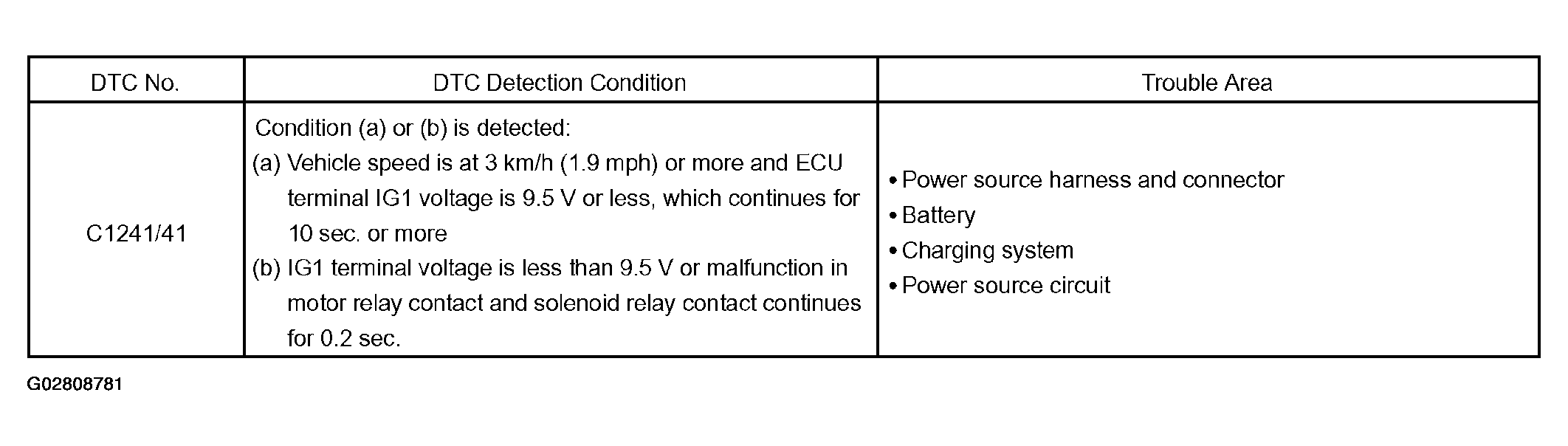

Fig 1: DTC C1241/41 IG Power Source Circuit DTC Table

G02808781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
